need help getting diff in. (pic)

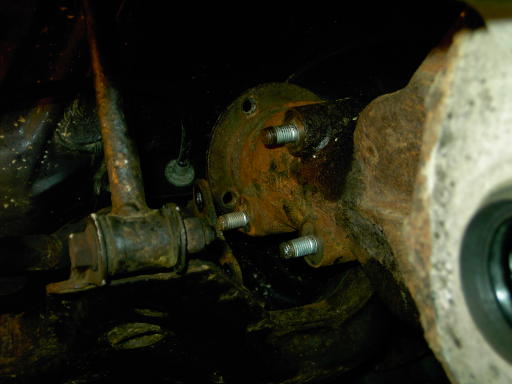

we got my diff out and cant get the LSD in. the studs are in the LSD and they seem to be blocking it so it cant get enough clearance to make it into place.

what should i do about this?
jacobcartmill is offline
Reply Like
Old 01-04-04, 09:27 PM
  #2
just dont care.

Thread Starter
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,387
Likes: 0
Received 4 Likes on 4 Posts
jacobcartmill is offline
Reply Like
Old 01-04-04, 09:34 PM
  #3
Super Raterhater

iTrader: (6)

SonicRaT's Avatar

Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes on 2 Posts
Drop your subframe :/
SonicRaT is offline
Reply Like
Old 01-04-04, 09:45 PM
  #4
Former Moderator. RIP Icemark.

Icemark's Avatar

Join Date: Apr 2001
Location: Rohnert Park CA
Posts: 25,896
Likes: 0
Received 19 Likes on 19 Posts
looks like you are missing your front diff mount.

It is easier to put the diff in with the mount on the diff and the driver's side of the subframe lowered.
Last edited by Icemark; 01-04-04 at 09:49 PM.
Icemark is offline
Reply Like
Old 01-04-04, 09:47 PM
  #5
fire from MY tailpipe!

iTrader: (5)

xfeastonarsex's Avatar

Join Date: Jun 2002
Location: Cincinnati, Oh
Posts: 1,204
Likes: 0
Received 1 Like on 1 Post
Take the ring out that the driveshaft bolts onto.
xfeastonarsex is offline
Reply Like
Old 01-04-04, 10:22 PM
  #6
just dont care.

Thread Starter
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,387
Likes: 0
Received 4 Likes on 4 Posts
we just lowered the subframe. can i leave the front diff mount attached to the subframe and just attach the diff to it? then just lift the subframe back up?
jacobcartmill is offline
Reply Like
Old 01-04-04, 10:26 PM
  #7
Former Moderator. RIP Icemark.

Icemark's Avatar

Join Date: Apr 2001
Location: Rohnert Park CA
Posts: 25,896
Likes: 0
Received 19 Likes on 19 Posts
Its pretty hard to torque all the bolts from the front mount, to the diff if the front mount is still attached to the subframe (as well as a pain in the *** to try and line up 3 small studs through the holes).
Icemark is offline
Reply Like

Trending Topics

Old 01-04-04, 11:54 PM
  #8
just dont care.

Thread Starter
iTrader: (6)

jacobcartmill's Avatar

Join Date: Jul 2002
Location: Nashville, TN
Posts: 9,387
Likes: 0
Received 4 Likes on 4 Posts
where are the bolts that bolt the mount to the subframe? are they the two nuts that face towards the drivers side of the car?
jacobcartmill is offline
Reply Like
Old 01-05-04, 09:54 AM
  #9
Former Moderator. RIP Icemark.

Icemark's Avatar

Join Date: Apr 2001
Location: Rohnert Park CA
Posts: 25,896
Likes: 0
Received 19 Likes on 19 Posts
yep, those two, and they are mounted into two slots on the subframe (that you won't be able to see the slots until you take the nuts off)
