name this part
#1
King of the Loop
Thread Starter
name this part
OK its under the stock airbox, to the left on the wheel well. Its a smal metal enclosure with a wire and plug protruding from the side. I rememebr reading that its some type of resistor but i cant find it again. Mine is not connected. Is this ok? bad? something to do with one of my removed systems?
#3
King of the Loop
Thread Starter
Originally Posted by banzaitoyota
most likley your Fuel Injector resistor block
#4
No. Mine is plugged into something. i noticed it when I swapped to a tid and cone filter. I was thinking of removing it for more clearance for the filter but decided not to move it.
#5
seven-less
Join Date: Apr 2003
Location: city of houston.... y0!
Posts: 2,082
Likes: 0
Received 0 Likes
on
0 Posts
is it possible to not need the resistors if you switched over to an S5 ecu when you switch the S5 motor?
Last edited by Sir Rupert Hobo; 02-21-05 at 12:31 PM.
#7
King of the Loop
Thread Starter
I have a s5 block with a s4 front cover and therefore s4 ecu, so its ok thta it isnt plugged in right? What should ti be plugged into anyways?
Trending Topics
#9
Open up! Search Warrant!
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
If you have high impedence resistors, you don't need that. Take a digital multimeter and check the resistence across the two plugs in the injector. If its down around 2 ohms, you need the resistor pack. If its around 12 ohms, the injectors have the amount of resistence that the ECU expects to see so you shouldn't need the resistor block.
#10
King of the Loop
Thread Starter
Originally Posted by AdAm87TuRbO2

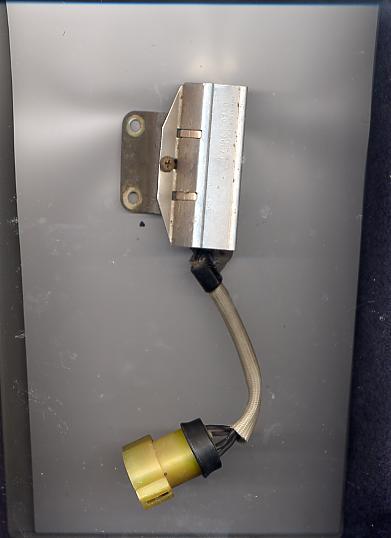

Does it look like this? If so Im pretty sure It needs to be plugged in
