Name this line!

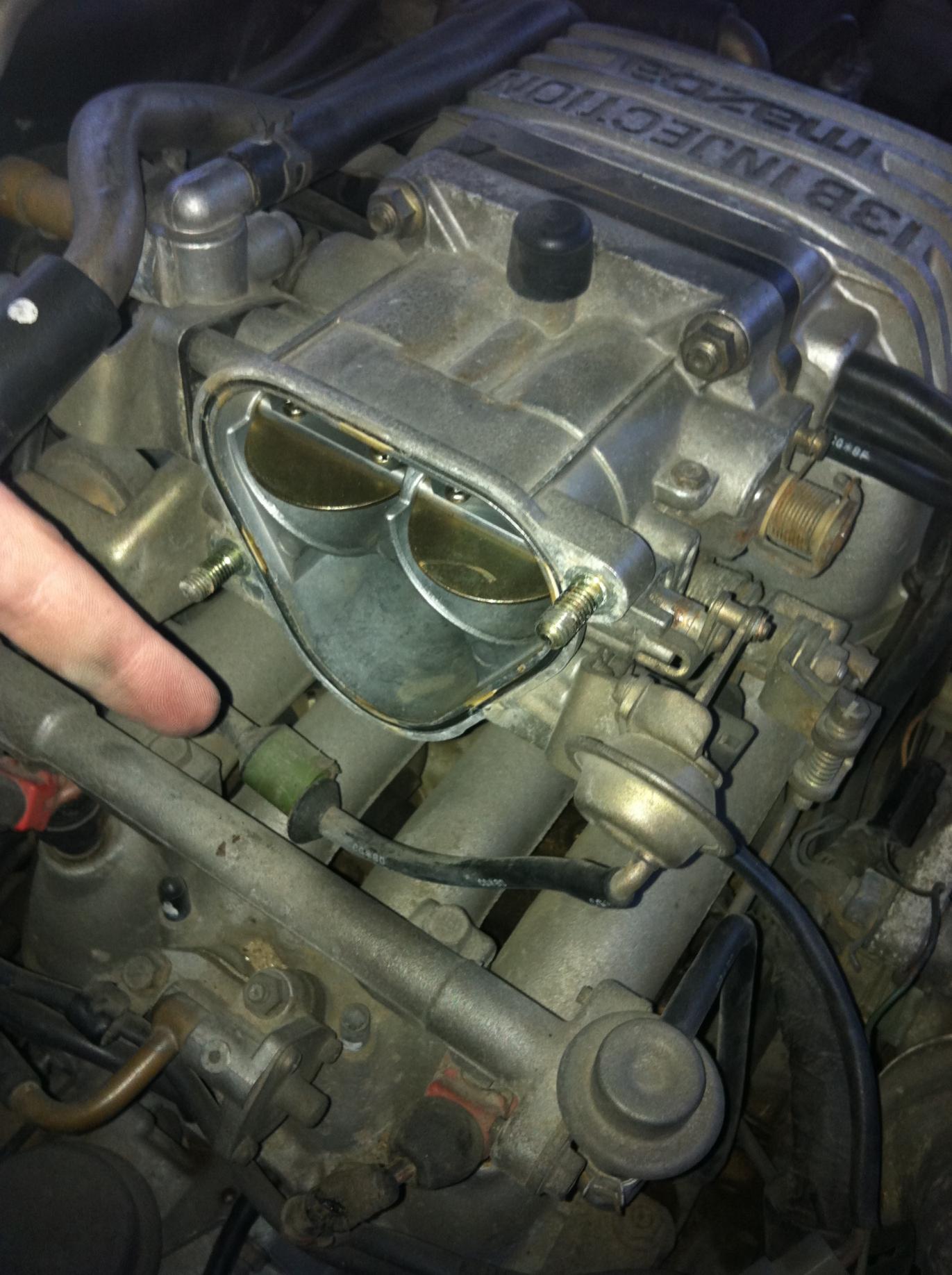

What is the purpose of this line (with the green thing)?
Mine is broke in half!!

Attached Thumbnails

Reply Like

11-11-10, 05:51 PM

jjwalker

MECP Certified Installer

Join Date: Feb 2009

Location: Mesquite, TX-DFW

Posts: 3,176

Likes: 0

Received 2 Likes on 2 Posts

It is a check valve. It allows vacuum (or the removal of air) to travel one way only.

Reply Like

11-11-10, 05:56 PM

RotaryEvolution

Sharp Claws

iTrader: (30)

Join Date: Oct 2003

Location: Central Florida

Posts: 5,107

Likes: 0

Received 41 Likes on 40 Posts

cold start double throttle choke, you can find a check valve at most auto parts stores(the green thing).

Reply Like

11-11-10, 06:44 PM

JerettGranger

Junior Member

Thread Starter

Join Date: Aug 2010

Location: Tyler, Tx

Posts: 23

Likes: 0

Received 0 Likes on 0 Posts

So this is why my idle surges until its warmed up?
Is there any other negative effect this broken line could make?

Thanks guys!

Reply Like

11-11-10, 06:57 PM

satch

Moderator

iTrader: (1)

Join Date: Jun 2005

Location: tulsa,ok.

Posts: 11,738

Likes: 1

Received 12 Likes on 11 Posts

Quote:

Originally Posted by JerettGranger

So this is why my idle surges until its warmed up?
Is there any other negative effect this broken line could make?

Thanks guys!

If the line/valve is broken it would cause a vacuum leak which could affect the idle until warm because that particular vacuum line only has vacuum for so long I believe. You could also just pull the hose at the thermovalve and plug it off. In doing so you have to be careful about reving the engine when the engine is cold. Bypassing the diaphragm requires this.
