NA-T2 Tranny Wiring

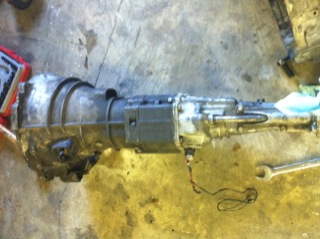

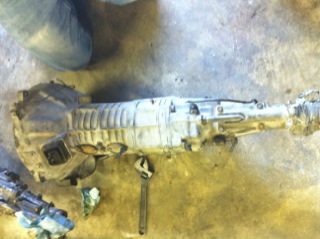

Hi guys i am in the process of putting a T2, at least what i hope to be a T2 tranny, into my NA with JDM T2 motor. I pulled my NA Tranny and the wiring is a bit different, here area few pictures attatched. Theres one bundle of wires that i can't figure out how to get onto the new tranny. im trying to wrap this up tonight so i need some direction asap.. tia
#5
Coolant Leak
Thread Starter
Join Date: Aug 2005
Location: Dallas, TX
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
Ok, it must not be clear. The new tranny had no wires on it. I'm trying to

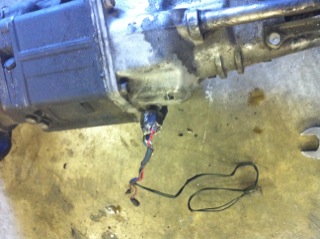

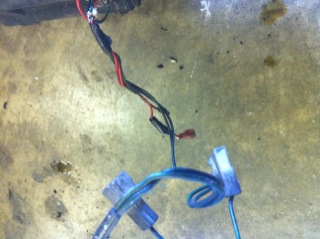

Figure out how to put the wires from my NA tranny onto the T2 tranny. There's 2 plugs that screw in with wires coming out of them from my NA. I found a spot for one that had two connectors on it. The other has a red wire a green wire and 2 connectors. This set of wires, shown in the last 2 pics, I cannot find a place fpr on the new tranny
Figure out how to put the wires from my NA tranny onto the T2 tranny. There's 2 plugs that screw in with wires coming out of them from my NA. I found a spot for one that had two connectors on it. The other has a red wire a green wire and 2 connectors. This set of wires, shown in the last 2 pics, I cannot find a place fpr on the new tranny
#6
Moderator
iTrader: (1)
Ok, it must not be clear. The new tranny had no wires on it. I'm trying to
Figure out how to put the wires from my NA tranny onto the T2 tranny. There's 2 plugs that screw in with wires coming out of them from my NA. I found a spot for one that had two connectors on it. The other has a red wire a green wire and 2 connectors. This set of wires, shown in the last 2 pics, I cannot find a place fpr on the new tranny
Figure out how to put the wires from my NA tranny onto the T2 tranny. There's 2 plugs that screw in with wires coming out of them from my NA. I found a spot for one that had two connectors on it. The other has a red wire a green wire and 2 connectors. This set of wires, shown in the last 2 pics, I cannot find a place fpr on the new tranny
Trending Topics
#9
Coolant Leak
Thread Starter
Join Date: Aug 2005
Location: Dallas, TX
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts
ok, i apologize i was posting on my phone before, now that i'm home i did some further research and i think i found what i need...
http://www.mazdatrix.com/getprice.as...m=17-6400-R505
any ideas on other solutions before i spend 170?
http://www.mazdatrix.com/getprice.as...m=17-6400-R505
any ideas on other solutions before i spend 170?
#12
FC3S Maniac~
iTrader: (5)
You can just do what I did with my JDM T2 Tranny. From what I've read on the forums the Japanese Transmissions do not use the 5th/Neutral switch. All you need to worry about is the Reverse Switch, which is the one in your first picture, with the two little prongs sticking out. You should see two little plastic caps that will plug right into those on your NA harness. That will give you your reverse lights. Don't plug in the other wires, just hide those. I don't know if this apples to this though, since my project was a NA -> JDM TII and JDM Transmission. I used the stock NA harness too.
#13
Coolant Leak
Thread Starter
Join Date: Aug 2005
Location: Dallas, TX
Posts: 490
Likes: 0
Received 0 Likes
on
0 Posts

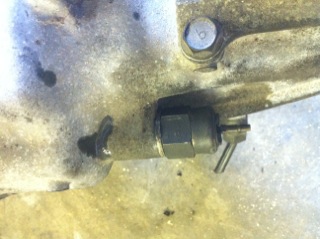

Siikduke,what u described is actually my exact setup. Jdm T2 motor and tranny with NA harness on N370 ECU. Only difference is that switch only has one prong on it, not 2
