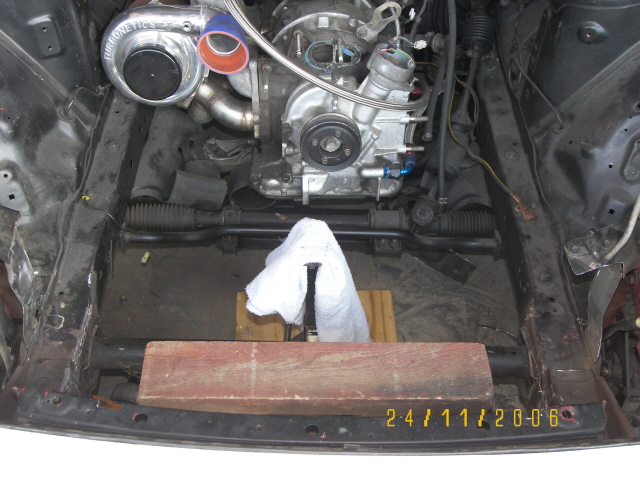

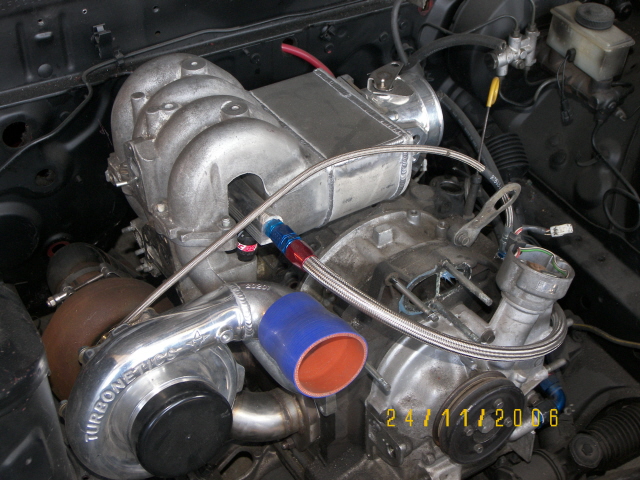

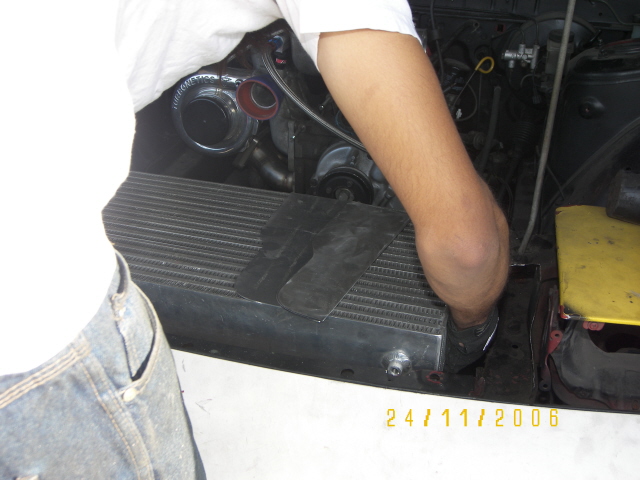

Im posting this up for lil Bro his screen name is piston Killa This is his project in the works nearing completion and some T-76 turbo street ported motor going on the bottle 4 inch core intercooler going v-mounted shooting for 500 hp easy. Custome intake box custome turbo mani.



Got more pics coming tomarrow it's too late for me to be messing around with this stuff right now enjoy though!!!!



Sorry but this damn thing only takes 5 pics at a time...



interesting intake manifold, great welds.



Thanks it's what me and my lil bro do all day long and night long there is not a moment of peace here in this damn house. Than compressor is on all wee hours of the night and day.



looks pretty good so far...update this when you have finished and also get a video of it running



Good work. If this is a street car, you'll have a fun time until you get used to that throttle body. The stock progressive throttles make a HUGE impact on being able to drive the car smoothly.

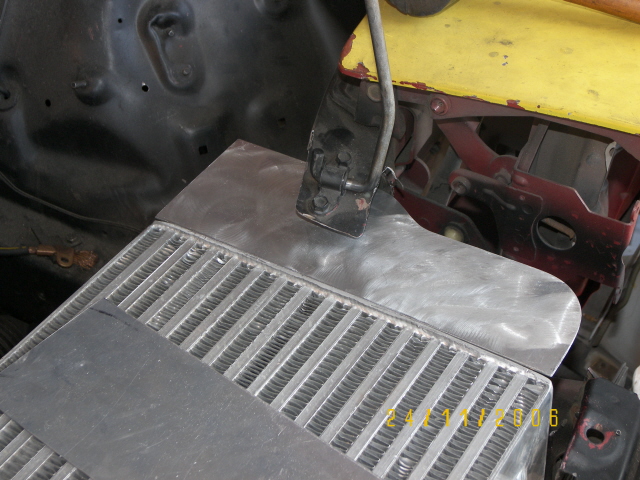

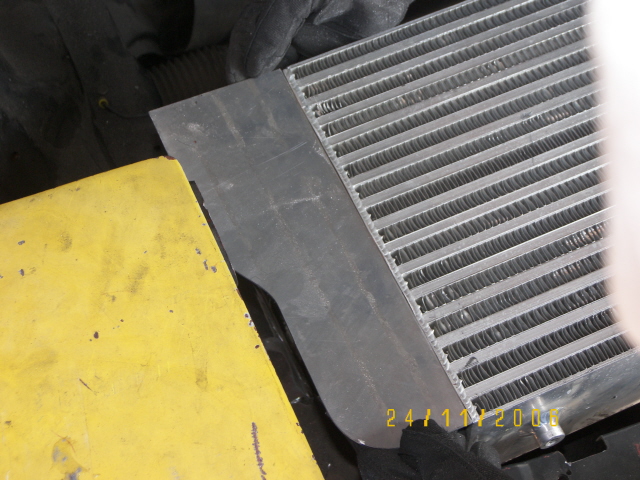

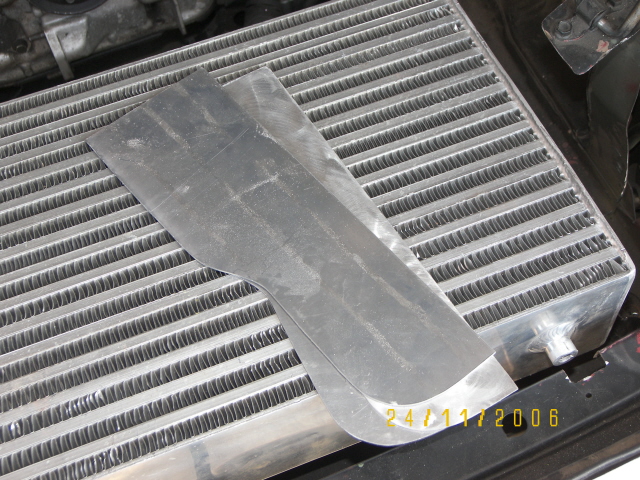

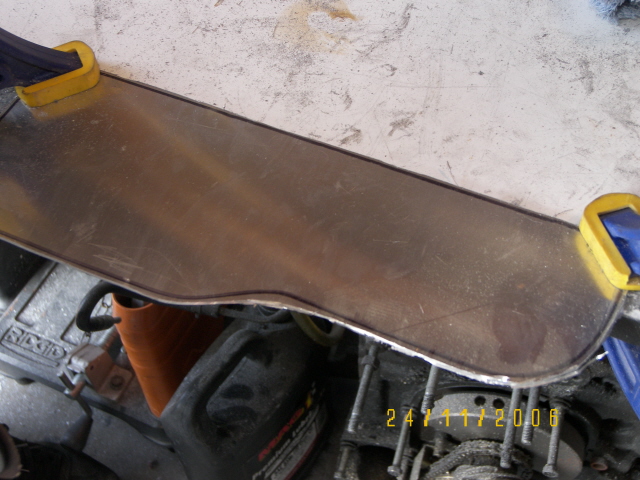

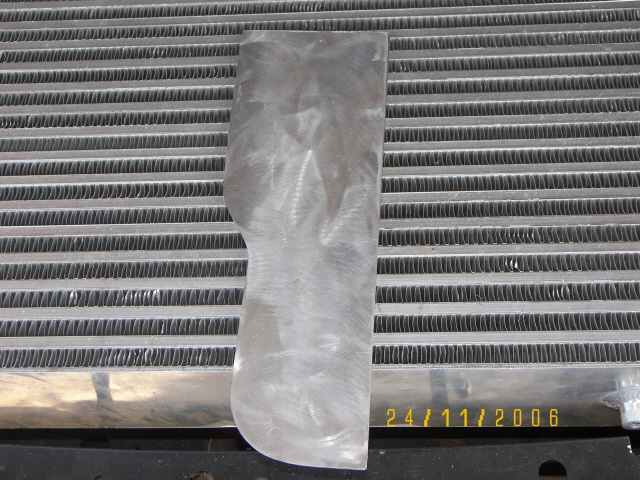

MY PROJECT SETUP IS COMING ALONG JUST GREAT HERE R UPDATES TO THE PROJECTS THE END TANKS ON THE INTERCOOLER R GETTING CUT OFF AGAIN FOR A THICKER GUAGE



I think that looks like it is going to be a lot of fun.



Clean work. How about some more intake manifold pictures.



Seems like really nice welds on the intake manifold. More Pics



is your waterpump housing going to clear the turbo and fuel line?



Thanks

more pics today when i get home sorry for such the long delay guys





Looks sweet! I couldn't resist a quick edit though.



yes and no we could leave like that and just run it the way it looks, but that would be to easy and would look ugly. So were chopping the neck off running a u bend down clean to the radiator, and letting nature take's it's course.

During this build no catz were injured or killed at any point.LOL



cool, can't wait to see final numbers with this setup. should be a beast. Any meth injection? What is your goal with this setup hp wise?



Is this an accurate picture of the ports? If so, those ports are going to chew up your side seals in short order. It also appears that you've cut a little into the oil seal area but that's a smaller problem.



yeah but it's cool we have ran these ports b4 on another setup the motor ran very stronge little oil issue but other then the seals were fine

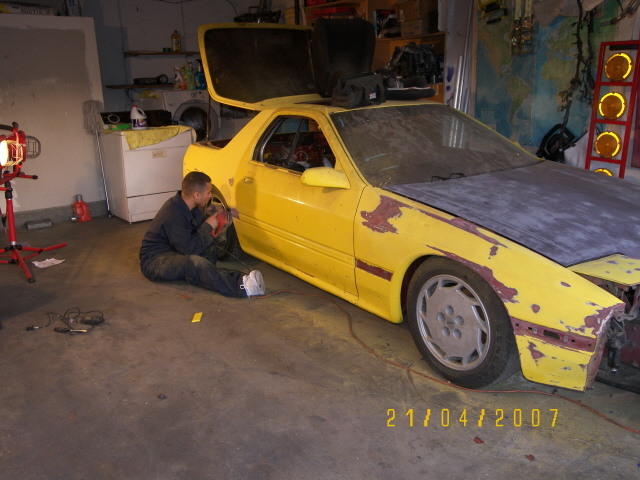

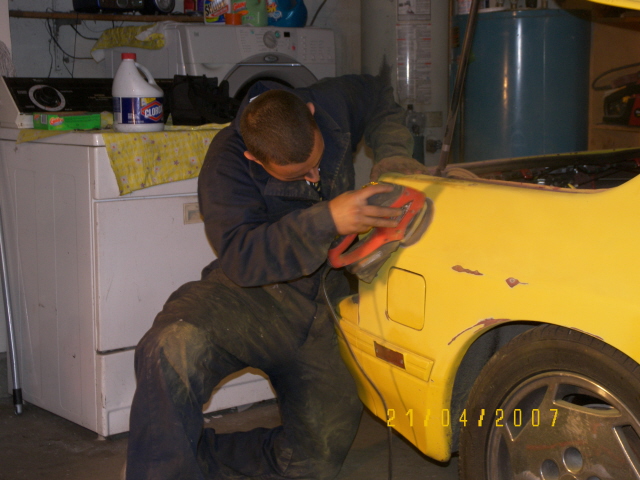

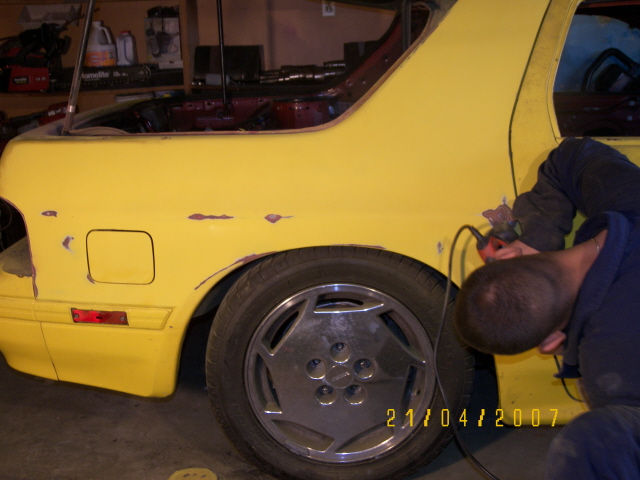

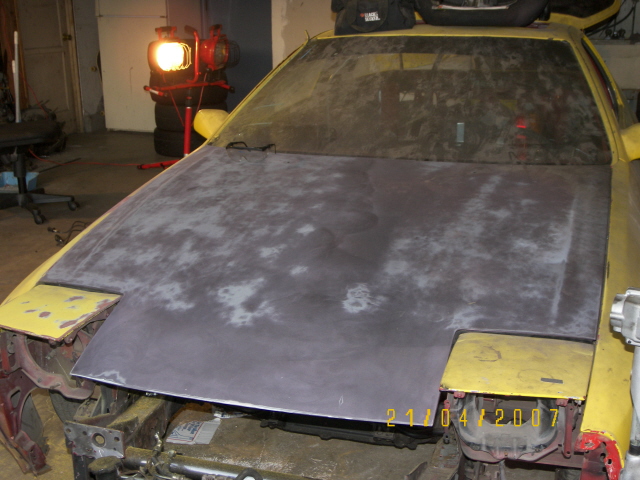

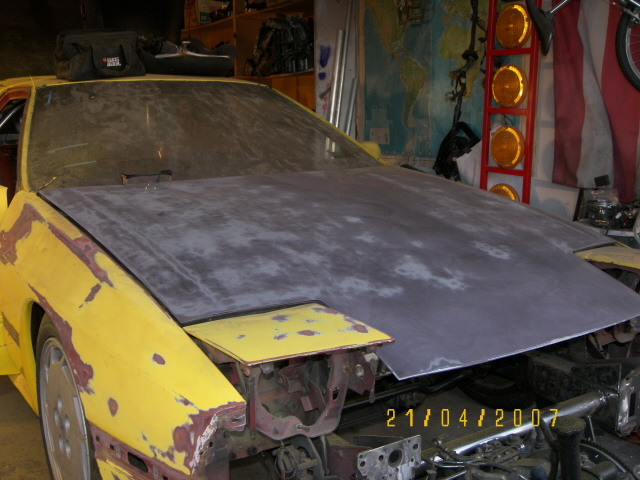

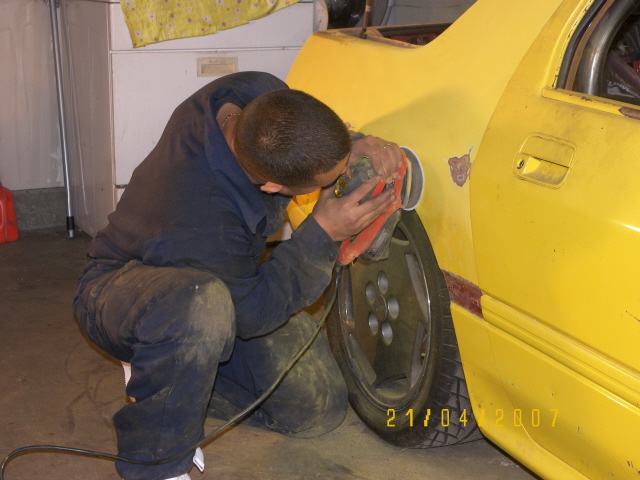

body work getting done by el nene



more pics

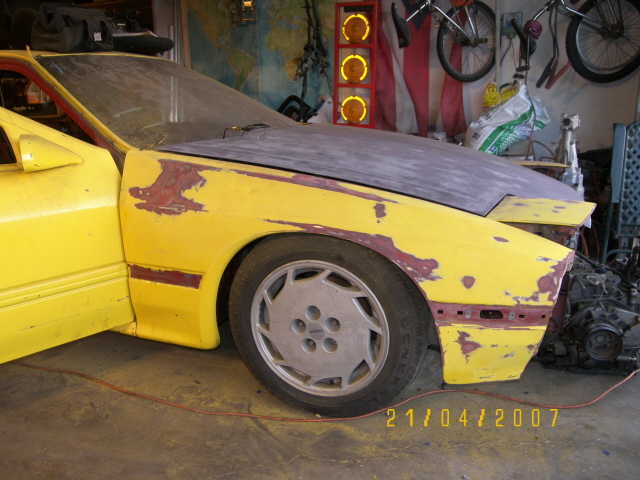

well that was getting the paint down to a workable surface

the previous owner left him teddy with a surprise , a 6 layer paint job ..shruggss

anyways most of the downed red parts are either small nicks or dents, the car is pretty straight , also the rear emblem is been shaved along with the antenna, wing holes, doors, and gas cap lid

more pics of this BODYWORK and PAINT in process to come stay tuned , all the work is been done by me EL NENE 7 of (ROTOR7VEN mazda rotary shop and bodyworks)



Thanks El Nene This Guy Get Down, Make Sure Post Pics Of Your Radiator In Your Section Okay



roll cage is in the works right now will post pics this weekend guys



Okay here goes bought this koyo brand new un-used doing some modification to have a new top mount tank fabbed up and welded on. New inlets and out lets will be fabbed up and welded on. Also a new water neck pump flange is being cut out and re-positioned to make room for my turbo, and intercooler piping.
