My S4 N/A Nitrous build
#76
Senior Member
iTrader: (1)
Join Date: Aug 2003
Location: WI
Posts: 535
Likes: 0
Received 0 Likes
on
0 Posts
I as said before, I think a properly setup dry kit on a 13b fc is probably going to cost more than the car itself. Add to that the fact that the n/a 13b likes low octane n/a, and would be more susceptible to knock without higher octane fuels on nitrous and it may not be the most attractive option for this application. My argument is simply that a properly setup dry kit is hands down safer, and will eventually standardize itself to being the preferred method of nitrous use for EFI engines.
Whats the answer for this specific case? Propane could be it, but it seems to be a more intricate setup then the OP planned for. I think running direct port sounds like a good idea in theory, but I have no first hand experience with this and don't even have a n/a intake manifold around to look at. All in all the single nozzle wet is probably going to end up being the most cost effective option, while there are all sorts of disadvantages that come along with this, the cheapness and fact the it could be installed, and running in a few hours at most make it somewhat attractive. The engine only being worth a few hundred bucks helps move this idea along too
You also might want to upgrade to propane as a fuel later on once you get the bugs worked out, all you'll really need is a fuel solenoid that can take some extra pressure, some hoses, propane tank, and a hobs switch to mount at the fuel noid.
#77
Rotary Freak
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
For years I have heard wet was better. Mainly because people thought you would pop the motor easily and wet was safer. I know I'm not the OP but thats for sharing your input.
You think it would be cheaper then swapping to a turbo'ed system?
You think it would be cheaper then swapping to a turbo'ed system?
#78
Canned. I got CORNED!
Thread Starter
iTrader: (5)
Join Date: Mar 2007
Location: Appleton, WI
Posts: 1,029
Likes: 0
Received 0 Likes
on
0 Posts
Uhhh...are you asking if a nitrous setup is cheaper than swapping a turbo engine in? Very much so.
Didn't get much done this weekend, waiting until I have a few days off so I can pull the engine again.
I managed to break a caliper bolt off on both sides removing the rear brakes, so off came the hubs and I drilled them both out. I suppose I'll be replacing wheel bearings as long as I have the hubs off, as the one bearing is completely shot.
Hopefully in 3 weeks I can get the engine out, fix the 6 ports, swap the steering rack, install the motor mounts and start working on getting this thing running!
Didn't get much done this weekend, waiting until I have a few days off so I can pull the engine again.
I managed to break a caliper bolt off on both sides removing the rear brakes, so off came the hubs and I drilled them both out. I suppose I'll be replacing wheel bearings as long as I have the hubs off, as the one bearing is completely shot.
Hopefully in 3 weeks I can get the engine out, fix the 6 ports, swap the steering rack, install the motor mounts and start working on getting this thing running!
#79
I wish I was driving!
Your saying a nozzle mounted before the throttle body is going to atomize fuel better then the fuel injectors at the port? hmmm sorry, physics is working against you there. I don't know if you have any proof that you have made more power in the past with all other factors being equal, but even if that were true, you should jet to the power you want to make, period.
In both instances, the only damage from the backfire was the intake coupling popping apart. Simple fix.
You act as though a dry kit cannot cannot nitrous backfire, and fuel doesn't hit the runner walls with fuel injectors. Definitely seen that before with the moron import racers at the track. Think its impossible? Pretty easy to watch on a flowbench. They're easy to build, you should try it for yourself. Compare the two systems.
If you find an engine that was damaged by a properly set up dry hit, it is a tuning mistake or the internals of the engine were simply not strong enough. Even if the solenoid stuck open on a setup going through the maf you'd still be alright because the maf would still compensate. Ever had a fuel solenoid stick open or fail to open? Blown engine. Ever had a nitrous solenoid stick open on a wet kit? Blown engine.
Never had either nitrous or fuel stick open, I regularly service my solenoids and use filters. Its regular maintenance, like changing your oil. Above 300hp shot levels, I use a safety back solenoid on the nitrous side.
You act as though its impossible to blow an engine on dry systems... wrong map= blown engine.
Set up things correctly on a dry kit, and you're fine for small power levels. Set it up wrong, blow your engine.
I'll take wet thanks.
#80
I wish I was driving!

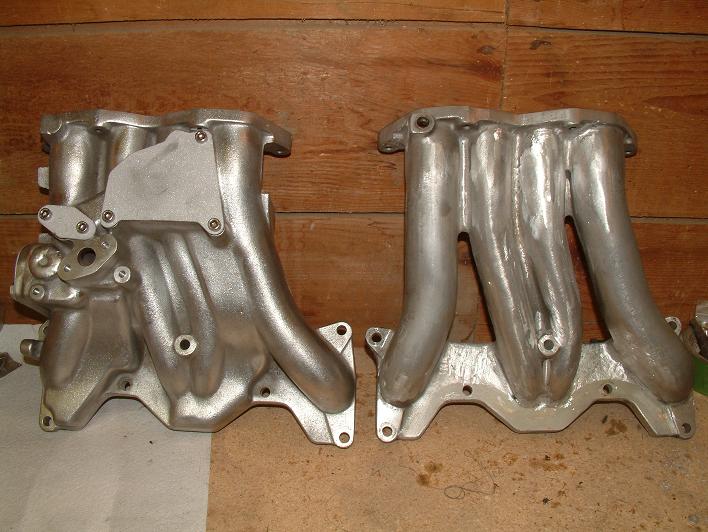

An example of a starting point for a 4-port LIM. All obstructions into the runners removed and welded closed, and all runners flow-matched to the engine's ports.
#82
Senior Member
iTrader: (1)
Join Date: Aug 2003
Location: WI
Posts: 535
Likes: 0
Received 0 Likes
on
0 Posts
I'm still not convinced that a wet kit will make more power all factors being equal. Here is a dyno graph of an ls1 with a 100 shot wet, and then a 100 shot dry. All that was changed was the fuel line was capped off, and the nozzle was moved in front of the MAF. Same solenoid, same jet, same lines, same nozzle.
http://img.villagephotos.com/p/2004-...N-wetvsdry.JPG
He did this to prove that a dry kit hits just as hard as a wet kit. The dry kit made 15hp more, admittedly due to the bottle pressure being up a little on the dry. I have a hard time believing that the differences wouldn't have been negligible had the bottle pressure been the same.
Scenario: I've got an engine that runs great on its existing injectors. I'd much rather simply swap a fuel jet than have to fork out $400 for 4 new injectors.
Twice. Once on a single fogger system, before the TB, on an unmodded TB. Secondary throttle plates were not opening fully. The second was a failure of the auxilary ports to open at their correct RPM, hence my reasoning for always using a system disconnect if the auxilary ports are not both fully open.
In both instances, the only damage from the backfire was the intake coupling popping apart. Simple fix.
You act as though a dry kit cannot cannot nitrous backfire, and fuel doesn't hit the runner walls with fuel injectors. Definitely seen that before with the moron import racers at the track. Think its impossible? Pretty easy to watch on a flowbench. They're easy to build, you should try it for yourself. Compare the two systems.
In both instances, the only damage from the backfire was the intake coupling popping apart. Simple fix.
You act as though a dry kit cannot cannot nitrous backfire, and fuel doesn't hit the runner walls with fuel injectors. Definitely seen that before with the moron import racers at the track. Think its impossible? Pretty easy to watch on a flowbench. They're easy to build, you should try it for yourself. Compare the two systems.
First off, a fuel solenoid stuck open results in an engine that runs massively rich off nitrous, not a blown engine.
Never had either nitrous or fuel stick open, I regularly service my solenoids and use filters. Its regular maintenance, like changing your oil. Above 300hp shot levels, I use a safety back solenoid on the nitrous side.
You act as though its impossible to blow an engine on dry systems... wrong map= blown engine.
Never had either nitrous or fuel stick open, I regularly service my solenoids and use filters. Its regular maintenance, like changing your oil. Above 300hp shot levels, I use a safety back solenoid on the nitrous side.
You act as though its impossible to blow an engine on dry systems... wrong map= blown engine.
True that the tune will need to be correct, much like a forced induction setup. If you go lean under boost, you risk serious engine damage. The damage is operator error, and is not due to inherent flaws in the design of the nitrous kit.
Dry systems are built for low power levels. I never build a system with any intent on injecting less than 150 shot. Good luck using your dry kit on a 300 shot on a rotary.
Set up things correctly on a wet kit, and your results are more power, more power capability, and excellent reliability. Set it up wrong, blow your engine.
Set up things correctly on a dry kit, and you're fine for small power levels. Set it up wrong, blow your engine.
Set up things correctly on a dry kit, and you're fine for small power levels. Set it up wrong, blow your engine.
#85
Canned. I got CORNED!
Thread Starter
iTrader: (5)
Join Date: Mar 2007
Location: Appleton, WI
Posts: 1,029
Likes: 0
Received 0 Likes
on
0 Posts
I thought you'd never ask!
I'm home for about a month now and my goal is to get it running before I leave for break.
I figured out the original color of the car....it's the dark silver! Wow, I can't really tell by looking at the door sills or anything. The inside has a tiny remainder of very plush maroon carpet...i'm glad that's gone.
Over Thanksgiving, I got quite a bit of work done...I got the engine back OUT, installed the TO bearing (slaps forehead), I installed solid motor mounts and I swapped to a manual steering rack. I also removed the rear calipers and completely rebuilt them.
I installed the driveshaft. I especially liked the part in the FSM where it says that if you experience vibration after installing a new driveshaft, try putting some weights on some random bolts and see if that fixes it.
I ran the wiring for my pyrometer and wbo2 sensors.
I've gotten the back hubs off and the DTSS bushings out....they were rotting out really bad. Here are the hubs off the car with the bushings out. I will take them in tomorrow to get new bearings and seals pressed in.
I swapped in a new master/slave clutch assembly and bled it...one of the three pedals works, does that mean i'm 1/3 of the way done?
The engine harness is finally installed on the car. It is all plugged in the inside of the firewall, just have a few odds and ends to tie up in the engine bay.
I installed the engine oil cooler today...no matter how long you let those things drain, they never seem to run out of oil....haha.
Priorities in the next few days:
1) Get the *** end back on the ground, make the car roll-able again; install rear calipers and get the brake system bled all the way through.
2) Run all vaccuum, fuel, and coolant hoses in the engine bay. New fuel filter.
3) Install upper intake manifold, throttle body, throttle cable, second fuel rail.
4) Drain the fuel tank of whatever 6+ year old gasoline is in there, put a few gallons in and run the fuel pump to make sure the lines are clear.
I was trying to remove the DTSS half bushings from the part of the knuckle still on the car with two sockets and a lag bolt...and I snapped off this half inch bolt and almost killed myself...lol. I looked for 5 minutes and never found the other half
And so the score after the first period is: Bushings - 1, Nathan - 0
As for the 6 port/VDI problem, I'm considering ditching the fancy diagram and just doing the electric conversion writeup twice...which is going to require two RPM switches and two bicycle pumps, but whatever.
What's this thing and what should I do with it?
I've still got lots and lots to do, but I'm getting there...progress is sweet.
I'm home for about a month now and my goal is to get it running before I leave for break.
I figured out the original color of the car....it's the dark silver! Wow, I can't really tell by looking at the door sills or anything. The inside has a tiny remainder of very plush maroon carpet...i'm glad that's gone.
Over Thanksgiving, I got quite a bit of work done...I got the engine back OUT, installed the TO bearing (slaps forehead), I installed solid motor mounts and I swapped to a manual steering rack. I also removed the rear calipers and completely rebuilt them.
I installed the driveshaft. I especially liked the part in the FSM where it says that if you experience vibration after installing a new driveshaft, try putting some weights on some random bolts and see if that fixes it.
I ran the wiring for my pyrometer and wbo2 sensors.
I've gotten the back hubs off and the DTSS bushings out....they were rotting out really bad. Here are the hubs off the car with the bushings out. I will take them in tomorrow to get new bearings and seals pressed in.
I swapped in a new master/slave clutch assembly and bled it...one of the three pedals works, does that mean i'm 1/3 of the way done?
The engine harness is finally installed on the car. It is all plugged in the inside of the firewall, just have a few odds and ends to tie up in the engine bay.
I installed the engine oil cooler today...no matter how long you let those things drain, they never seem to run out of oil....haha.
Priorities in the next few days:
1) Get the *** end back on the ground, make the car roll-able again; install rear calipers and get the brake system bled all the way through.
2) Run all vaccuum, fuel, and coolant hoses in the engine bay. New fuel filter.
3) Install upper intake manifold, throttle body, throttle cable, second fuel rail.
4) Drain the fuel tank of whatever 6+ year old gasoline is in there, put a few gallons in and run the fuel pump to make sure the lines are clear.
I was trying to remove the DTSS half bushings from the part of the knuckle still on the car with two sockets and a lag bolt...and I snapped off this half inch bolt and almost killed myself...lol. I looked for 5 minutes and never found the other half
And so the score after the first period is: Bushings - 1, Nathan - 0
As for the 6 port/VDI problem, I'm considering ditching the fancy diagram and just doing the electric conversion writeup twice...which is going to require two RPM switches and two bicycle pumps, but whatever.
What's this thing and what should I do with it?
I've still got lots and lots to do, but I'm getting there...progress is sweet.
#86
Canned. I got CORNED!
Thread Starter
iTrader: (5)
Join Date: Mar 2007
Location: Appleton, WI
Posts: 1,029
Likes: 0
Received 0 Likes
on
0 Posts
Don't make me start a new thread!!!
What's this thing and what should I do with it?
Other things:
Gas in tank appears to still be good...and the tank is pretty damn full, I drained about 2 gallons and it was still coming out hard. Gas smells good.
Drained differential
Wheel bearing problem referred to here:https://www.rx7club.com/2nd-generation-specific-1986-1992-17/rear-wheel-bearing-still-very-wobbly-after-replacement-716680/
I'm going to talk to my machinist tomorrow and see what the deal is on that hub....and i'm working on wiring in the engine bay right now. If you know harnesses (specifically the one that the battery connects to) keep an eye on this thread because I am confused as ****.
What's this thing and what should I do with it?
Other things:
Gas in tank appears to still be good...and the tank is pretty damn full, I drained about 2 gallons and it was still coming out hard. Gas smells good.
Drained differential
Wheel bearing problem referred to here:https://www.rx7club.com/2nd-generation-specific-1986-1992-17/rear-wheel-bearing-still-very-wobbly-after-replacement-716680/
I'm going to talk to my machinist tomorrow and see what the deal is on that hub....and i'm working on wiring in the engine bay right now. If you know harnesses (specifically the one that the battery connects to) keep an eye on this thread because I am confused as ****.
#87
Canned. I got CORNED!
Thread Starter
iTrader: (5)
Join Date: Mar 2007
Location: Appleton, WI
Posts: 1,029
Likes: 0
Received 0 Likes
on
0 Posts
One step forward, two steps back.
Maybe more than two.
Accomplished:
-Fixed wobbly wheel bearing. Needed to be pressed in farther.
-Drained differential, filled it most of the way, need to rig something up to pump the rest in.
-Installed rear hub carriers, calipers, rotors, and pads.
-Installed header, purchased new nuts for manifold studs.
Holy fack, it looks like something!
20 minutes of good brake bleeding. Filled the reservoir twice, pedal is coming up, caliper is superlubed and starting to move, things are looking great, when I hear something fall off the back of the car somewhere, followed by the sound of squirting liquid.
FACK FACK FACK.
I split a hard line. I guess I would rather it split now then when I'm driving, but now I'm going to bend new brake line from the proportioning valve in the engine bay all the way back to the rear calipers. Considering running new fuel line while i'm at it.
WTB: Lift.
At least I have all week off, so hopefully I'll make some real progress.
Maybe more than two.
Accomplished:
-Fixed wobbly wheel bearing. Needed to be pressed in farther.
-Drained differential, filled it most of the way, need to rig something up to pump the rest in.
-Installed rear hub carriers, calipers, rotors, and pads.
-Installed header, purchased new nuts for manifold studs.
Holy fack, it looks like something!
20 minutes of good brake bleeding. Filled the reservoir twice, pedal is coming up, caliper is superlubed and starting to move, things are looking great, when I hear something fall off the back of the car somewhere, followed by the sound of squirting liquid.
FACK FACK FACK.
I split a hard line. I guess I would rather it split now then when I'm driving, but now I'm going to bend new brake line from the proportioning valve in the engine bay all the way back to the rear calipers. Considering running new fuel line while i'm at it.
WTB: Lift.
At least I have all week off, so hopefully I'll make some real progress.
#89
DGRRX
iTrader: (3)
Join Date: May 2002
Location: Murfreesboro TN
Posts: 2,243
Likes: 0
Received 0 Likes
on
0 Posts
Hmmm, rust. I am glad I moved away from the Chicagoland area. My 7 would be a heap by now!!
Keep going. I had some brake issues on my 626 about the same time you did. Except instead of a hardline rupturing, I had 75% of the bleeder screws snap off. Lol.
Keep going. I had some brake issues on my 626 about the same time you did. Except instead of a hardline rupturing, I had 75% of the bleeder screws snap off. Lol.
#90
Canned. I got CORNED!
Thread Starter
iTrader: (5)
Join Date: Mar 2007
Location: Appleton, WI
Posts: 1,029
Likes: 0
Received 0 Likes
on
0 Posts
Luckily, all my brake bleeder screws on the back came loose...the front calipers were in much worse shape, those are brand new.
I ordered a ton of new parts, parking brake cables, brake hoses, pads....Rockauto was having a wholesale closeout and I got most of hte stuff for half price.
I ordered a ton of new parts, parking brake cables, brake hoses, pads....Rockauto was having a wholesale closeout and I got most of hte stuff for half price.
