my roll center correctors
Hey guys, I thought I would share with you guys a roll center correction I made for my car. Sorry I don't have pictures of the steps I took. Just a finished product. I saw another one that was made and designed it similarly.
-1/2 chromoly steel cnc water jet cut and cnc bent body
-tig welded chromoly cups that holds in my replaceable fk spherical bearing
-modified bolt that had been machined for bearing movement and modified to fit factory spindle with no modifications
-stainless steel spacer
Welded with a machined heat sink so the cup wouldn't get too distorted

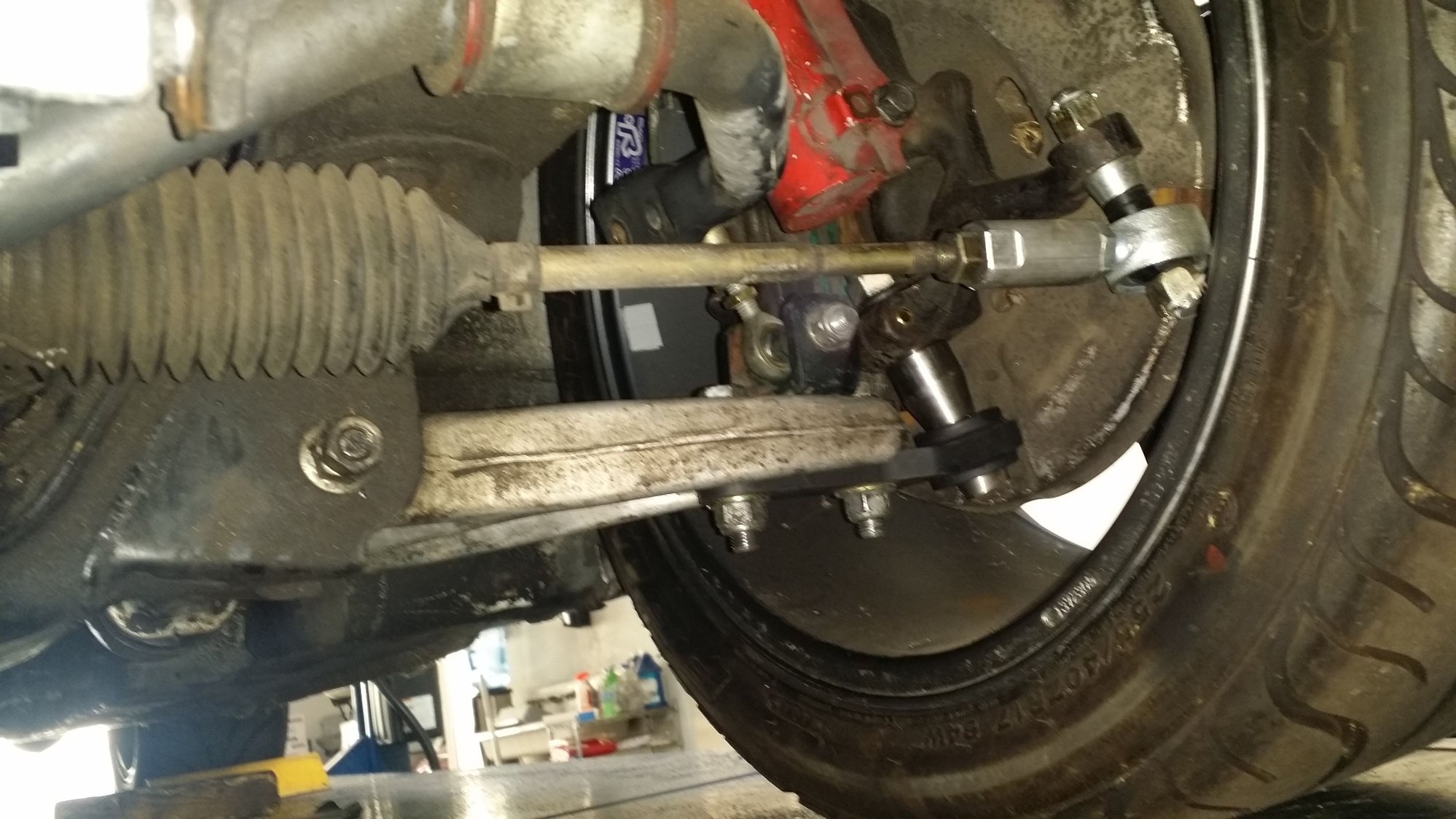

Car on a 4 post lift. I wonder how it would look without the roll center correction. The picture was taken at a slight slant , so it's hard to see how parallel it is
-1/2 chromoly steel cnc water jet cut and cnc bent body
-tig welded chromoly cups that holds in my replaceable fk spherical bearing
-modified bolt that had been machined for bearing movement and modified to fit factory spindle with no modifications
-stainless steel spacer
Welded with a machined heat sink so the cup wouldn't get too distorted
Car on a 4 post lift. I wonder how it would look without the roll center correction. The picture was taken at a slight slant , so it's hard to see how parallel it is
Last edited by GrossPolluter; 11-17-15 at 11:57 PM.
Trending Topics
#14
So if anyone is interested, I have a few to sell. I will not be making more of them. It took a long time to make trying to use high quality components. I got a few people asking to make it longer for more camber, but there would be a small sacrifice for fender to the wheel clearance. Not enough peole that actually road race and drift their cars and interested in handling performance vs big single turbo upgrades. I guess its a rotary thing. I've had people ask me what roll center was! I'll leave it at that
#15
Banned. I got OWNED!!!
Definitely want a set. Just emailed and PMed.
#18
That is a possibility. But I would need a deposit so people wouldn't back out.
I ran into issues when I already had to much invested in it. The fk bearing cups I purchased had 0.025" movement up and down when in the cup. It was a little much imo. I was able to find these other cups that only had 0.010" movement, but the way the cup was cut, the bearing would not be able to have full movement. So I ended up even having to get the cups machined down more.
After all the nickels and dimes, the price added up, and had these roll centers out for almost 6 months and only sold a few. One got damaged in assembley process, one went to me, I traded 3 of them for a part I needed, and I sold 4 so far. I would have to really add everything up. I may consider it.
Not to mention I remember awr ones selling for $350, when I saw them on their website. Theirs did not have much roll center correction
I ran into issues when I already had to much invested in it. The fk bearing cups I purchased had 0.025" movement up and down when in the cup. It was a little much imo. I was able to find these other cups that only had 0.010" movement, but the way the cup was cut, the bearing would not be able to have full movement. So I ended up even having to get the cups machined down more.
After all the nickels and dimes, the price added up, and had these roll centers out for almost 6 months and only sold a few. One got damaged in assembley process, one went to me, I traded 3 of them for a part I needed, and I sold 4 so far. I would have to really add everything up. I may consider it.
Not to mention I remember awr ones selling for $350, when I saw them on their website. Theirs did not have much roll center correction
Last edited by GrossPolluter; 02-11-16 at 09:40 AM.
#23
Banned. I got OWNED!!!
I'm going to redevelop these in the next few months with a few added benefits. Not set on price yet, but it'll be done right.
#24
Rotary Enthusiast
I have a question: Has anyone plotted the stock FC mounting points into a 3D suspension geometry program? I'd like to know where the moment centers and the roll center are at stock. IE: How bad is it? Or is the philosophy here just to put the tie rods parallel to the lower control arms and that's it?
thanks,
Jeff
thanks,
Jeff
#25
not that I know of. I made these because I wanted to improve it. Unfortunately there is no adjustment on my kit. Making diferent sized spacers you could stack everything differently but it would take a lot of time and money.
I just wanted to improve and restore the lost roll center. Especially since macpherson strut suspensions want a lot of camber. So these also help me minimize camber loss. I also wanted to improve the roll axis
I just wanted to improve and restore the lost roll center. Especially since macpherson strut suspensions want a lot of camber. So these also help me minimize camber loss. I also wanted to improve the roll axis
