Hi, I just went through my workshop manual and my Haynes manual and cannot find the torque specs for the motor mounts themselves!

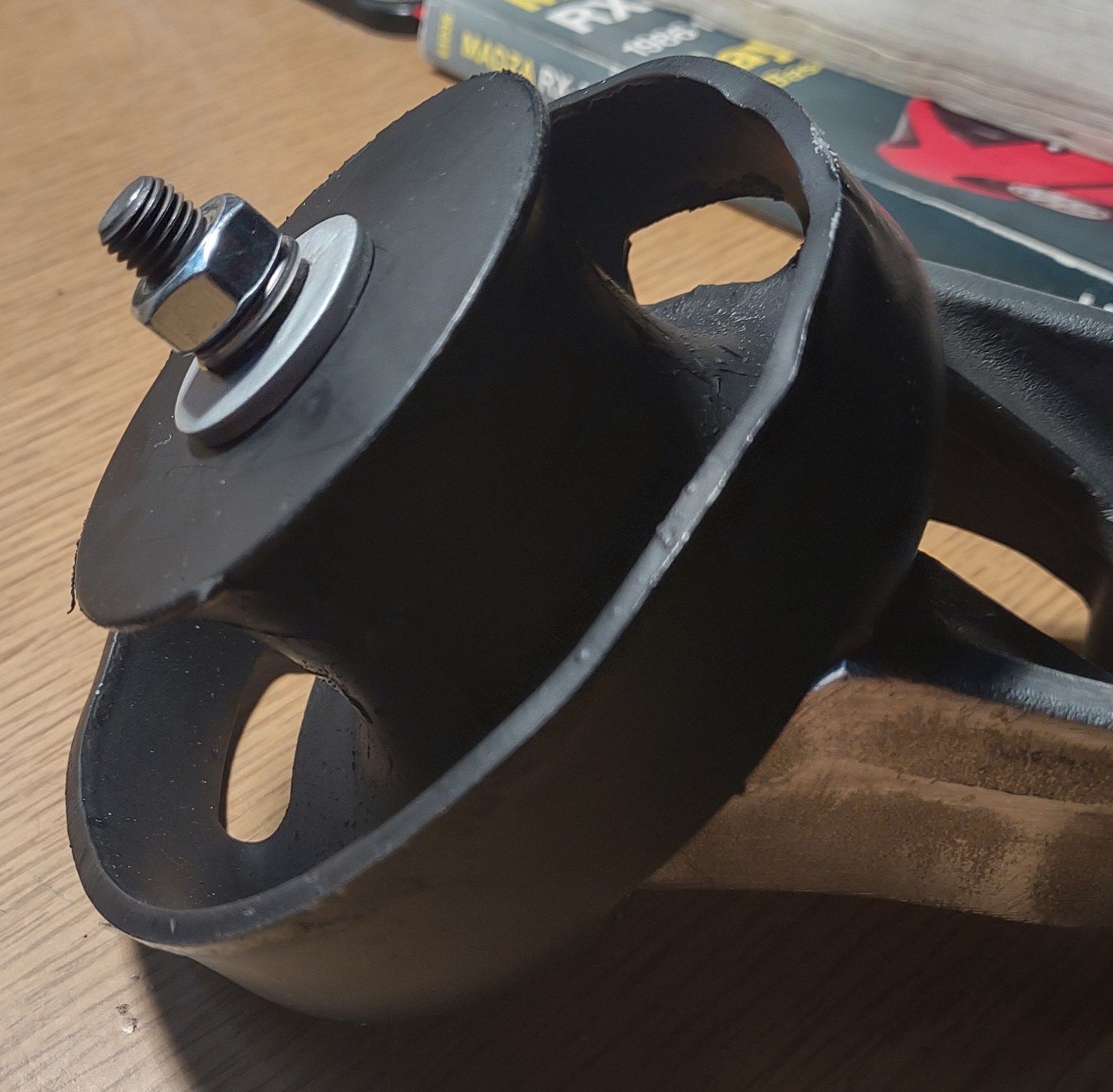

The torque specs I need are for the motor mount to the aluminum bracket and the motor mount to the steel bracket. Also the proper torque from the motor mounts to the Frame.




I have the specs for the right mounting bracket to the engine as 50 ft-lbs.
And the left mounting bracket to the engine as 50 ft-lbs also, are these correct?

Can I use the general 10mm torque of 27-40 ft-lbs for the mount to bracket and the mount to frame? They also recommend lock-tight for these two nuts.





Thanks for the info, am I correct in assuming that if the torque for the mount to the frame being 23-34 ft-lbs, that the torque for the mount to the bracket is also 23-34 ft-lbs?



Yes, same torque for both ends of the motor mount.



Perfect, thanks!
