More what are these???
In the first picture you can see where the wiring harness goes in through the firewall, my question is that the only place where the harness comes through the dash? Or does the harness run all throughout the dash?
11-20-11, 09:03 PM
#2
That's the engine harness, and it only goes through at that point. There are about 5 connectors inside the cabin right by that spot you need to disconnect to remove it. I don't remember the exact number of connectors, but if you've never done it before they're a pain in the *** to find, unless you have eyes like a snail.
And no, it doesn't run all up through the dash, it only goes in enough to connect to the ECU.
And no, it doesn't run all up through the dash, it only goes in enough to connect to the ECU.
11-20-11, 10:25 PM
#4
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
explain what you are trying to do,and someone may be able to help you or prevent you from doing something!.
Wires under the steering wheel stem from the fuse box on the inside driver's upper left kick panel area,and go all over.(inside the dash to outside the car on the left through the firewall).
Wires under the steering wheel stem from the fuse box on the inside driver's upper left kick panel area,and go all over.(inside the dash to outside the car on the left through the firewall).
11-21-11, 10:58 AM
#5
Junior Member
Thread Starter
Join Date: Sep 2011
Location: florida
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts
I am doing a S4 TII swap into my N/A S4, does anyone know all the wiring i would need? Do i just need the TII wiring harness and ecu? Also can i use the N/A TPS with the turbo 2 motor?
11-22-11, 09:02 AM
#6
There are literally hundreds of posts on this exact topic, but I'll give you the brief rundown. The rest you can search.
Use the NA harness, extend wires as necessary to reach each sensor's new location. Use the TII ECU, and all the TII sensors that come on the engine, as well as the AFM and boost sensor.
Turbo Swap FAQ
Use the NA harness, extend wires as necessary to reach each sensor's new location. Use the TII ECU, and all the TII sensors that come on the engine, as well as the AFM and boost sensor.
Turbo Swap FAQ
11-22-11, 09:10 AM
#7
Junior Member
Thread Starter
Join Date: Sep 2011
Location: florida
Posts: 34
Likes: 0
Received 0 Likes
on
0 Posts

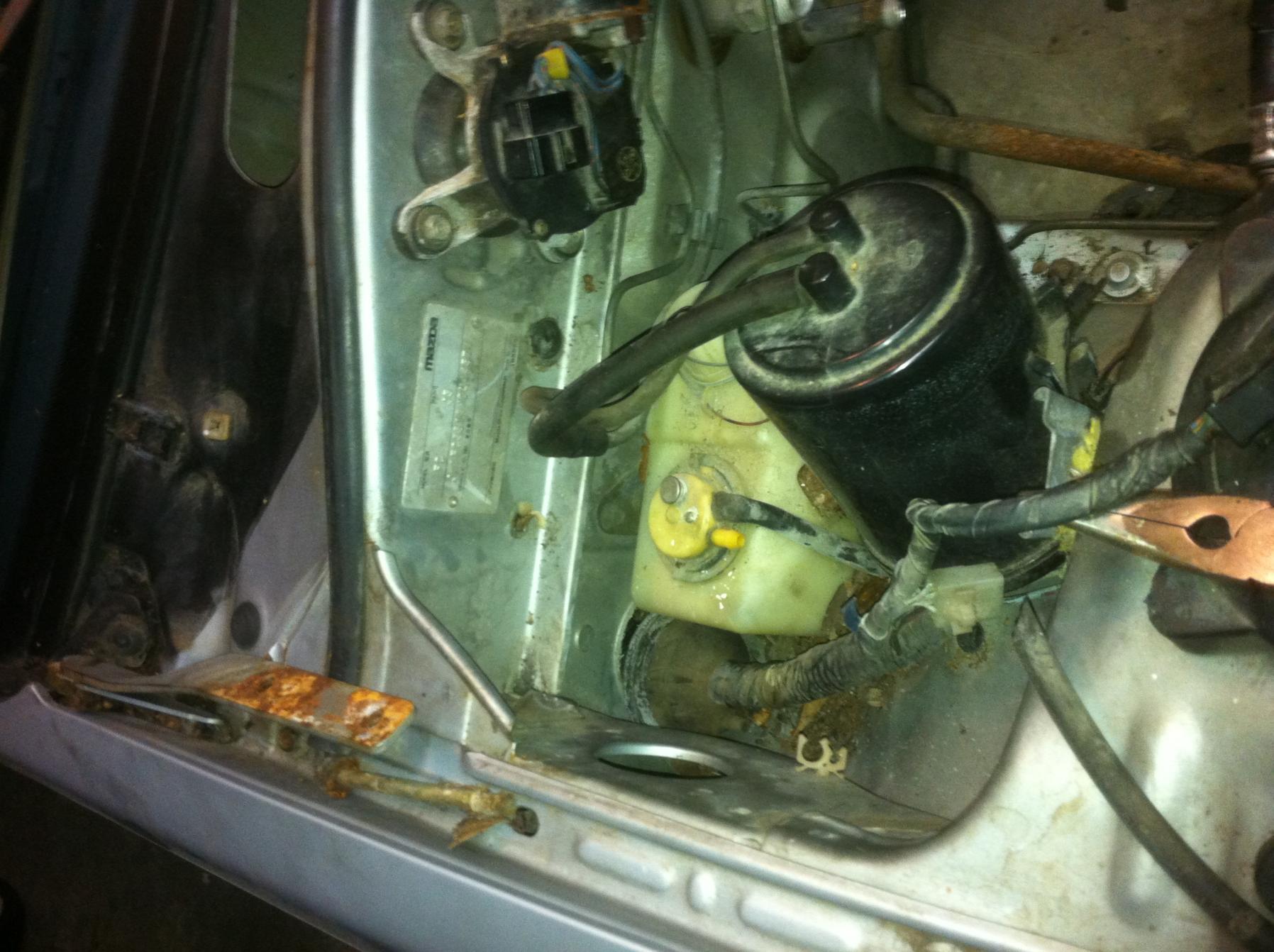

The owner before me cut the wiring cause cause he was doing a v8 swap, I also am having trouble figuring out what that black cylinder is in the picture, does anyone know?
Trending Topics
11-22-11, 09:43 AM
#8
i believe we should set up some sort of pay by chat service for more in depth assistance. cut wires... good luck. download the factory service manual and start looking at diagrams until you understand them is my best advice, or befriend someone who is good with wiring.
