More Bolt Sizes and alternator connection
#1
More Bolt Sizes and alternator connection
Basically I'm piecing together an S4 TII engine/drivetrain from a number of sources, and none of the bolts and nuts that should connect the stuff are there. I have used the master list in the archives with a degree of success, but needed to know about the bolts that hold the intercooler onto the engine, and the ones that hold the roughly triangular cast intake piece (the one that connects the rubber 90* bend from the IC to the throttle bodies) on to the throttle bodies.

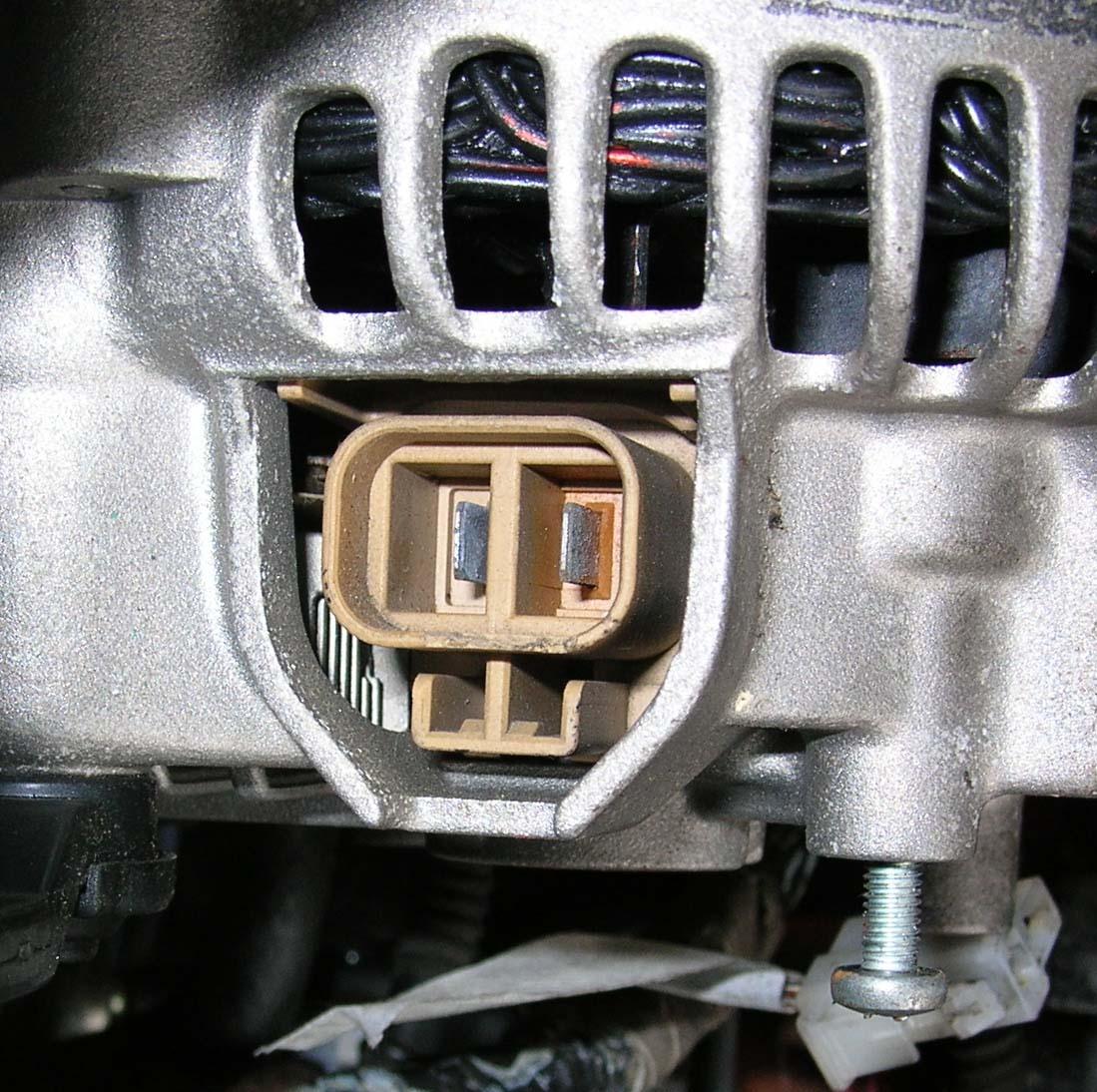

Also, an AC Delco alternator came on the engine (with the double pulley, since the airpump is gone), but the plug is different than the one on the harness. Are these common plugs, and which of the two wires on the alt connect to the ones on the harness? I'll put up pictures tomorrow.
My project is coming along slowly, but I only have weekends to work on it now that I'm back in school.
Thanks!
Also, an AC Delco alternator came on the engine (with the double pulley, since the airpump is gone), but the plug is different than the one on the harness. Are these common plugs, and which of the two wires on the alt connect to the ones on the harness? I'll put up pictures tomorrow.
My project is coming along slowly, but I only have weekends to work on it now that I'm back in school.
Thanks!
#2

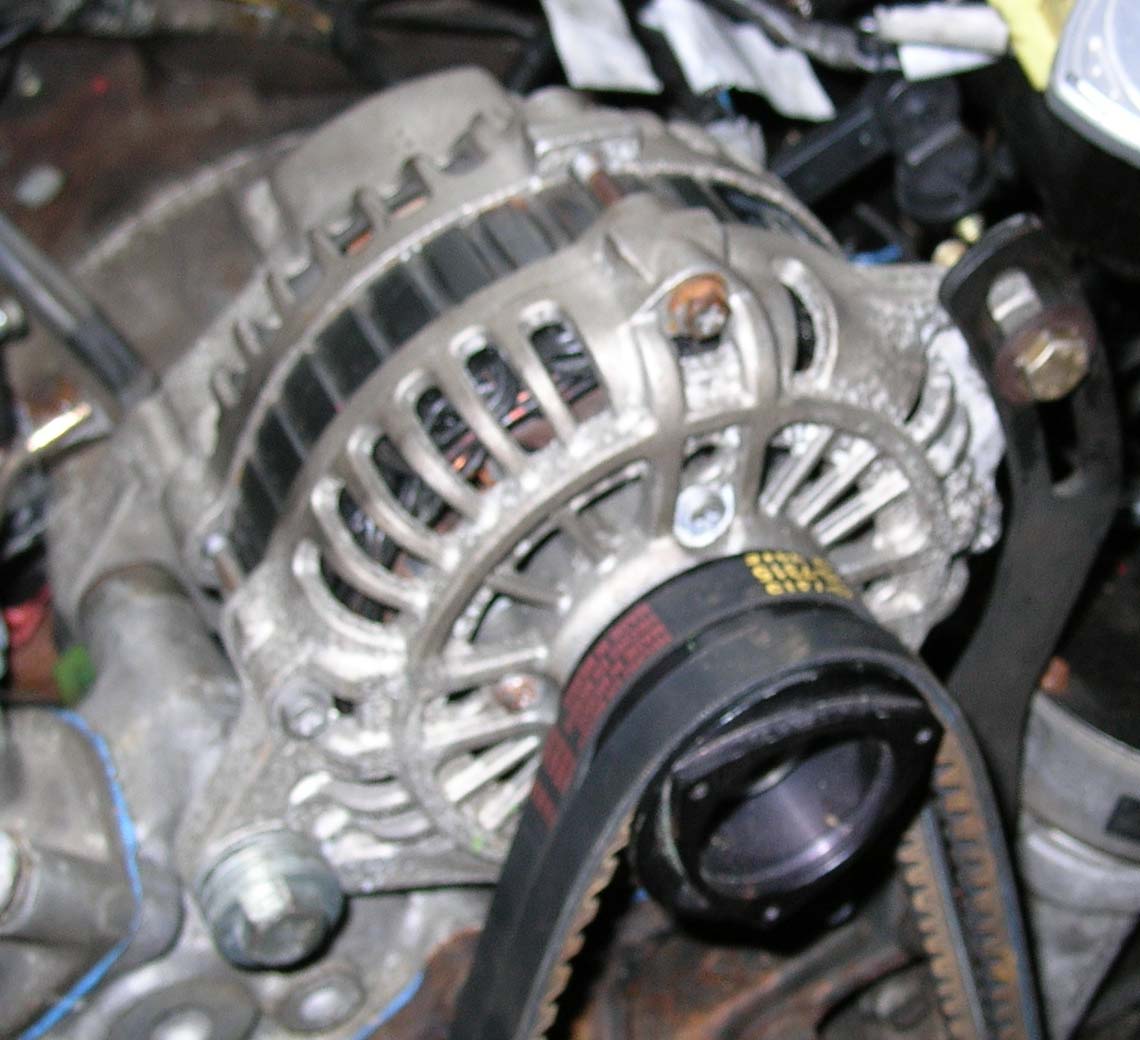

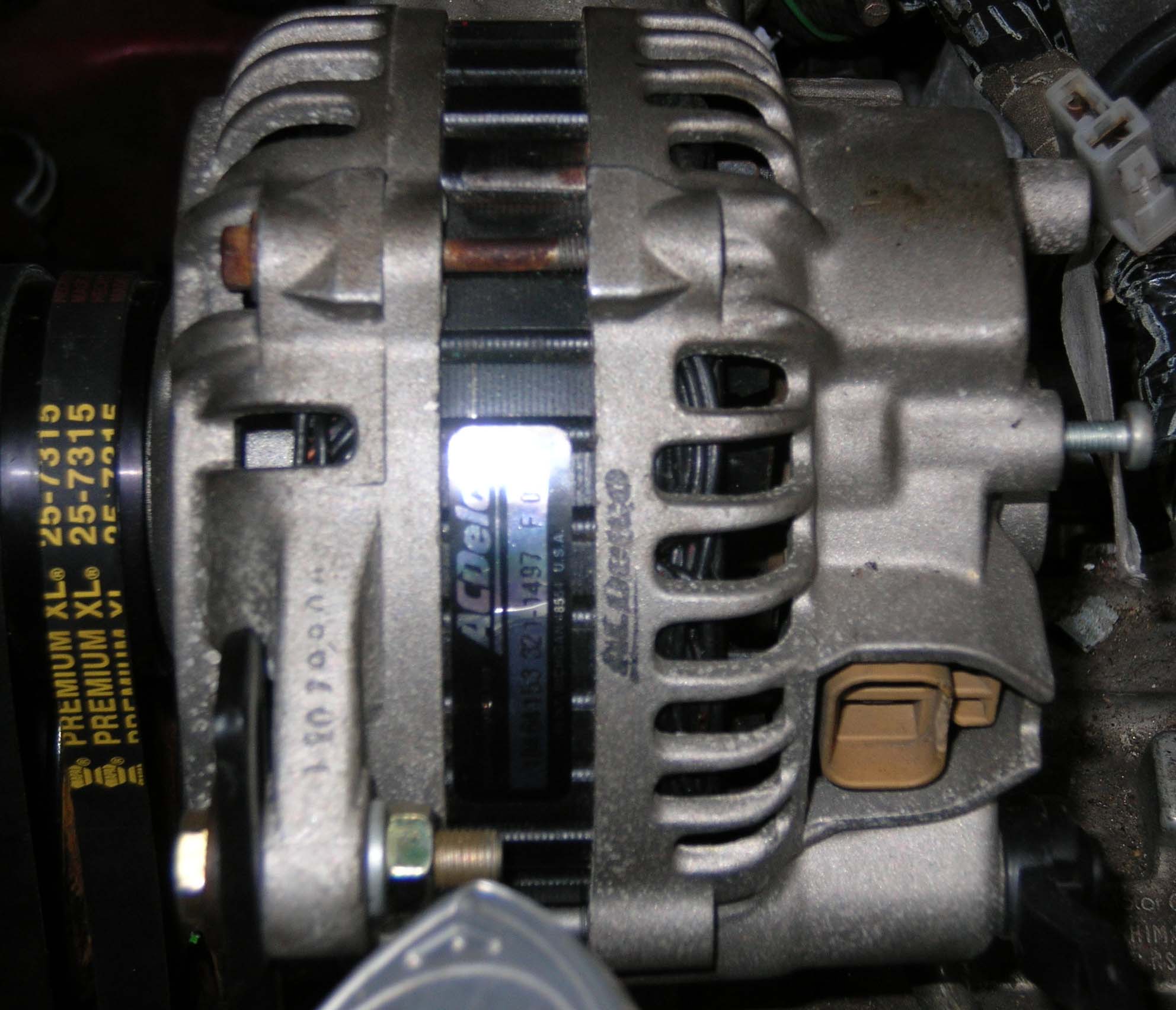

Ok, i got some pictures of the alternator... any idea what it is? I'm gonna take it off the car and see if i can find a plug that fits it at an auto parts store, but still need to know which way it gets wired up.

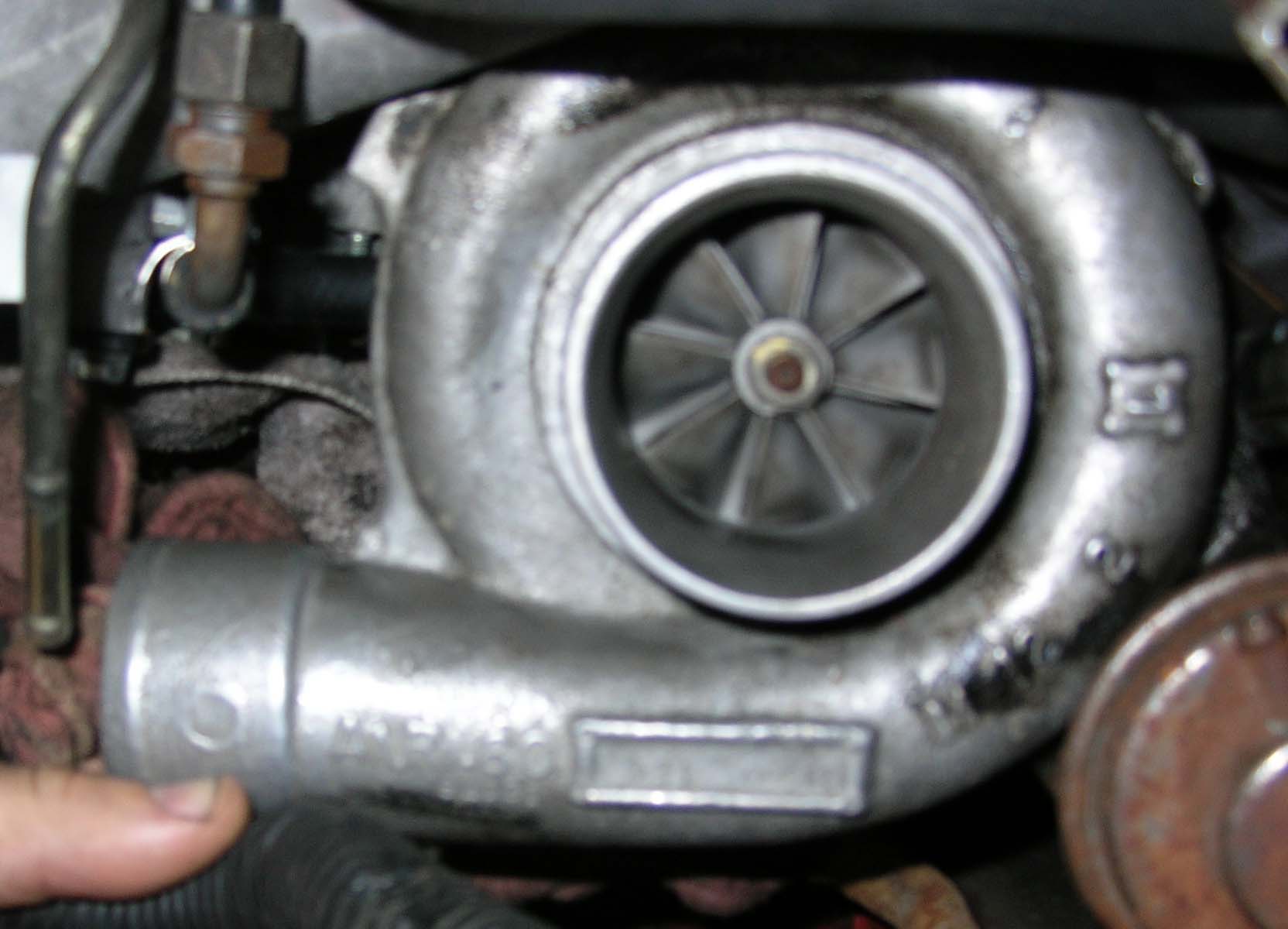

Also, i attached a pic of the turbo that was on the engine when I got it... any ideas what it is? I know it says A/R .60 on the compressor housing, and the exhaust housing looked stock, but with the twin scroll disconnected.
Also, i attached a pic of the turbo that was on the engine when I got it... any ideas what it is? I know it says A/R .60 on the compressor housing, and the exhaust housing looked stock, but with the twin scroll disconnected.
