Massive exhaust leak; difficulty building boost
#1
boom
Thread Starter
iTrader: (2)
Join Date: Feb 2005
Location: Santa Clara, CA
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Massive exhaust leak; difficulty building boost
So I was up a mountain when I heard a snap or something from the engine bay. Initially I didn't really pay any attention to it, but I realized throughout the day that the car was getting louder and louder.
I had an exhaust leak or something near the turbo before, but now it's as loud as the car was when I had straight pipes. Louder, even.
The excessive noise is definitely coming from the engine bay. I'm also having difficulty building boost.
Initially I thought that the wastegate might be stuck open, but it seems to be fine.
I'm guessing that the problem is either a severely cracked exhaust manifold or a snapped turbo stud.
Do you guys have any thoughts?
It's an S5 Turbo.
I had an exhaust leak or something near the turbo before, but now it's as loud as the car was when I had straight pipes. Louder, even.
The excessive noise is definitely coming from the engine bay. I'm also having difficulty building boost.
Initially I thought that the wastegate might be stuck open, but it seems to be fine.
I'm guessing that the problem is either a severely cracked exhaust manifold or a snapped turbo stud.
Do you guys have any thoughts?
It's an S5 Turbo.
#3
If your exhaust manifold is in-fact cracked, I would assume you could take it off and look at it to tell without too much difficulty. You could pressure test it too.
I mean, if it's that loud, I'd imagine it would be fairly noticeable..
I mean, if it's that loud, I'd imagine it would be fairly noticeable..
#4
boom
Thread Starter
iTrader: (2)
Join Date: Feb 2005
Location: Santa Clara, CA
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
I'm definitely going to pull it off and see what's up. There aren't too many points of failure between the exhaust pulse and the turbo, haha.
I was just kinda venting.
Do you guys know if i I have to remove the intake mani to get the exhaust manifold off?
I know it's a bad time when I'm hoping it's /just/ a snapped turbo stud.
I was just kinda venting.
Do you guys know if i I have to remove the intake mani to get the exhaust manifold off?
I know it's a bad time when I'm hoping it's /just/ a snapped turbo stud.
#7
Top Down, Boost Up
iTrader: (7)
Partially drain the coolant from the radiator, then remove the intake, downpipe, TMIC, ACV (optional). A wrench works in most cases for the exhaust manifold nuts, but they can be really tough to break loose. A ratchet with an extension will work for the top, front one.
Trending Topics
#10
boom
Thread Starter
iTrader: (2)
Join Date: Feb 2005
Location: Santa Clara, CA
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts
Well there are a handfull of zipties involved, because the Racing Beat hardware didn't really explain how the Y-pipe would work with the hangers, but yes I am using actual hangers.
I'll be digging into it this afternoon.
I'll be digging into it this afternoon.
#14
boom
Thread Starter
iTrader: (2)
Join Date: Feb 2005
Location: Santa Clara, CA
Posts: 151
Likes: 0
Received 0 Likes
on
0 Posts

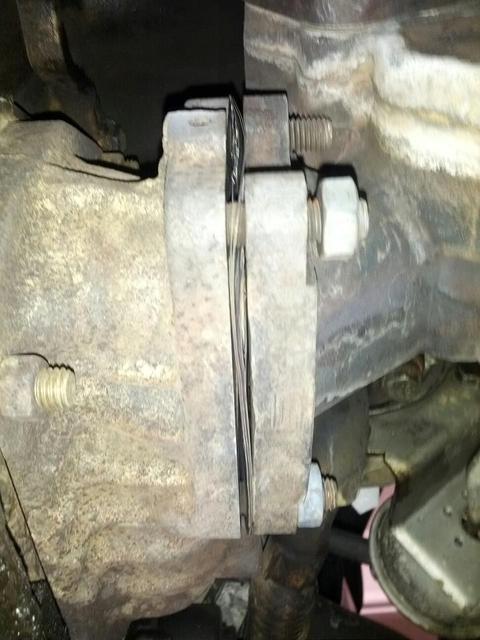

I tightened everything up and she's running much better now. Eventually I'll replace the gasket.
On a side note:
Does anybody here have a racing beat downpipe?
I can't seem to get a bolt on the stud closest to the passenger's fender. The pipe is too fat.
What did you guys do about that?
On a side note:
Does anybody here have a racing beat downpipe?
I can't seem to get a bolt on the stud closest to the passenger's fender. The pipe is too fat.
What did you guys do about that?
#15
Trunk Ornament
iTrader: (11)
You have the wrong nuts on the exhaust manifold. They don't lock, and it's just going to jiggle loose again. Get these:
M10-1.5 Exhaust Lock Nut Copper Plated Steel 14mm Hex
I bought one bag of 25 and have used them on every exhaust component and they work great. I also made a copper exhaust manifold to turbo gasket, and it seals great.
M10-1.5 Exhaust Lock Nut Copper Plated Steel 14mm Hex
I bought one bag of 25 and have used them on every exhaust component and they work great. I also made a copper exhaust manifold to turbo gasket, and it seals great.
#16
This is my social media.
iTrader: (22)
Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes
on
0 Posts
That is a great idea. ^
Glad to hear.
I have a Racing Beat downpipe. I have had to remove and reinstall it a few times, for various reasons... So, I know exactly what you're talking about. I just use the shortest 15mm open end box wrench I can find. Then it is patience and wrenching.
I have a Racing Beat downpipe. I have had to remove and reinstall it a few times, for various reasons... So, I know exactly what you're talking about. I just use the shortest 15mm open end box wrench I can find. Then it is patience and wrenching.
#19
This is my social media.
iTrader: (22)
Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes
on
0 Posts
Yes... You must concentrate, young padawan.
Just be patient. It might take you 5 minutes, it might take you 25 minutes... But you'll have peace of mind once you know it is on there damn tight. You may even want to slightly loosen the other two bolts when you start getting this one to bite. And then tighten them all evenly when you think they're around the same point.
Just be patient. It might take you 5 minutes, it might take you 25 minutes... But you'll have peace of mind once you know it is on there damn tight. You may even want to slightly loosen the other two bolts when you start getting this one to bite. And then tighten them all evenly when you think they're around the same point.
