Low fuel/seat belt idiot lights questions

Thread Tools

Search this Thread

Old Feb 26, 2012 | 11:30 PM
  #1
PnoyRx7's Avatar
Thread Starter
Super-Pinoy
Tenured Member: 15 Years
Liked
iTrader: (3)

Joined: Jul 2009
Posts: 1,747
Likes: 20
From: Hamilton, Ontario
Low fuel/seat belt idiot lights questions

My fuel low level light never works
My seat belt light works intermittently

The gauge for the fuel reads correct

What or where is the problem so I can fix it ?
Reply
Old Feb 26, 2012 | 11:34 PM
  #2
danegerous's Avatar
it go down in the dm
Tenured Member: 20 Years
Liked
iTrader: (10)

Joined: Jan 2005
Posts: 1,398
Likes: 7
From: Vegas
Cold solder joints in the idiot lights. You need to take it apart and remove the old solder, and redo them.
Reply
Old Feb 26, 2012 | 11:49 PM
  #3
clokker's Avatar
Cake or Death?
Tenured Member 10 Years
iTrader: (2)

Joined: Jan 2007
Posts: 10,249
Likes: 64
From: Mile High
Originally Posted by danegerous
Cold solder joints in the idiot lights. You need to take it apart and remove the old solder, and redo them.
Possibly, but that'd be the second thing I'd check.

The seat belt receiver has a connector at the base that's prone to dirt/water/general crap intrusion...check it (both sides) and clean as appropriate.

LOW fuel is- just like the fuel gauge sending unit- a ground, so it's easy to check.
Key ON, with the gang connector at the fuel tank bulkhead undone, run a jumper from the low fuel wire to ground. Essentially, you're duping the sending unit function, if the warning light comes on, the in-tank sender is bad.

If the light doesn't activate, you check the cluster solder joints (assuming it's not just a bad bulb) but keep in mind you could still have a bad sender as well.

I've had to redo the solder for the clock three times (because I suck, apparently) but the other joints in the cluster have been fine so far (and at twenty years, I wouldn't complain anyway).
Reply
Old Feb 27, 2012 | 12:37 AM
  #4
088's Avatar
088
...Serf of Taxifornia...
Tenured Member: 15 Years
iTrader: (9)

Joined: Jul 2006
Posts: 383
Likes: 9
From: Haywards 5000
s4: pages 15-170 & 15-171 in the FSM
s5: page T-46

s4 & s5 fuel warning connectors are identical. Buckle switches are identical. Seat belt warning connectors are different.

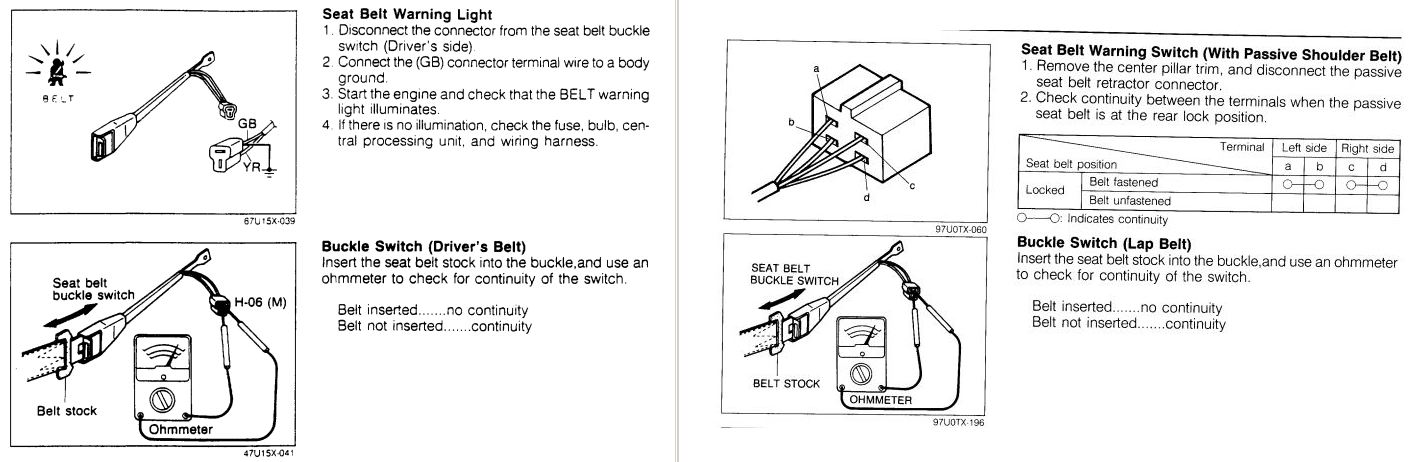

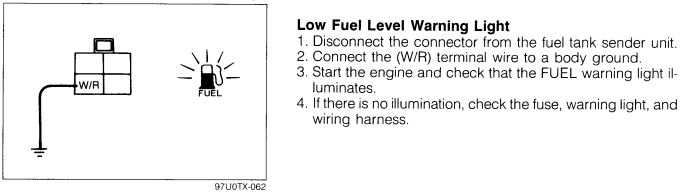

Attached Thumbnails Low fuel/seat belt idiot lights questions-seat_belt_s4_s5.jpg   Low fuel/seat belt idiot lights questions-low_fuel.jpg
