Im looking to redo all my starter wiring. from the starter to the battery terminals. However, im running into complications.
the stock battery will be in its standard location so i dont need to get complicated. what im really wondering is...
1)what gauge wire is used in our stock cars? im talking about the battery cables. what kind of lugs should i get (solder or crimp)?
2)also the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it?
3)i know the ground wire goes from the negative battery, to the strut tower, to the engine where its bolted to the starter. thats simple. however, the positive cable is confusing me. i know the alternator cable attaches to the power cable, but what else should i know about it before it goes smack dab to the starter?
the stock battery will be in its standard location so i dont need to get complicated. what im really wondering is...
1)what gauge wire is used in our stock cars? im talking about the battery cables. what kind of lugs should i get (solder or crimp)?
2)also the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it?
3)i know the ground wire goes from the negative battery, to the strut tower, to the engine where its bolted to the starter. thats simple. however, the positive cable is confusing me. i know the alternator cable attaches to the power cable, but what else should i know about it before it goes smack dab to the starter?
#6
Moderator
iTrader: (1)
1)what gauge wire is used in our stock cars? im talking about the battery cables. what kind of lugs should i get (solder or crimp)?
!). Already answered
2)also the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it?
2). Clean it up and reuse the one you have
3)i know the ground wire goes from the negative battery, to the strut tower, to the engine where its bolted to the starter. thats simple. however, the positive cable is confusing me. i know the alternator cable attaches to the power cable, but what else should i know about it before it goes smack dab to the starter?
3). Thicker positive cable goes directly to starter and thinner positive cable goes to your engine fuse box...
!). Already answered
2)also the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it?
2). Clean it up and reuse the one you have
3)i know the ground wire goes from the negative battery, to the strut tower, to the engine where its bolted to the starter. thats simple. however, the positive cable is confusing me. i know the alternator cable attaches to the power cable, but what else should i know about it before it goes smack dab to the starter?
3). Thicker positive cable goes directly to starter and thinner positive cable goes to your engine fuse box...
#7
Rotary Freak
iTrader: (6)
Crimp on connectors or solder connectors = same
http://www.engineeringtoolbox.com/am...uge-d_730.html
http://www.teamfc3s.org/main/factory_service_manual/
You don't need some special connector to ground ****. Just put (-) Negative to the Chassis.
If (+) Positive touches the chassis (ground) it will spark, get hot and cause a short circuit. A short circuit is where electricity flows from + to - in an unintended manner where it isn't fused or resisted to prevent fires/sparks/heat/melting. Electricity is used throughout your vehice to power the lights, radio, engine, fans, a/c, power windows, ect.
I'd just examine how it was wired from the factory (note: gauge of wire and connectors/lugs) and go get new ****. Should be pretty straight forward.
Good luck.
Trending Topics
#8
let me restate my question again.
the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it? no, i will not be reusing it. dont tell me to clean it and reuse it as i have stated i am not having problems. i just want to make a new circuit. new wires, new connectors. i want the exact same type of connector, or something similar to it.
the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it? no, i will not be reusing it. dont tell me to clean it and reuse it as i have stated i am not having problems. i just want to make a new circuit. new wires, new connectors. i want the exact same type of connector, or something similar to it.
#9
Moderator
iTrader: (1)
let me restate my question again.
the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it? no, i will not be reusing it. dont tell me to clean it and reuse it as i have stated i am not having problems. i just want to make a new circuit. new wires, new connectors. i want the exact same type of connector, or something similar to it.
the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it? no, i will not be reusing it. dont tell me to clean it and reuse it as i have stated i am not having problems. i just want to make a new circuit. new wires, new connectors. i want the exact same type of connector, or something similar to it.
#10
Captain OCD
iTrader: (13)
When I re-did my starter wiring, it was because the previous owner did a hack job of installing a stereo and the wire was trashed, plus I relocated the battery. You're not relocating the battery so your job is even easier.
Personally for a stock-length battery cable, 4 gauge wire is what I would use. I used screw-type battery terminals. Never had any issues with them. At the starter end, I just went to the auto parts store and bought a 4 gauge ring terminal. I used a torch to solder the wire in there and covered it with shrink wrap.
For the grounds, do the same thing. You need a wire connecting the battery negative to the chassis (doesn't matter where really) and one connecting it to the engine / trans. Use the same gauge wire and the same ring terminals. It's not tough.
Personally for a stock-length battery cable, 4 gauge wire is what I would use. I used screw-type battery terminals. Never had any issues with them. At the starter end, I just went to the auto parts store and bought a 4 gauge ring terminal. I used a torch to solder the wire in there and covered it with shrink wrap.
For the grounds, do the same thing. You need a wire connecting the battery negative to the chassis (doesn't matter where really) and one connecting it to the engine / trans. Use the same gauge wire and the same ring terminals. It's not tough.
#11
Rotary Freak
iTrader: (6)
+1
"the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it?" Call the dealership and ask them what you wrote above. They'll probably laugh at you. How are we supposed to know what your talking about? Is it a ring thing that holds the wire? Is it a terminal that attaches the wire to the chassis? Take/draw/find a picture of it or something?
My ground goes to the chassis, because I relocated my battery, and the ground from the Battery goes to the chassis!? ALL GROUND GOES TO THE CHASSIS!
The Wiring Diagram is shown in the FSM here: http://www.teamfc3s.org/main/factory_service_manual/
If your starter works fine why are you working on it???
"the ground connection on the strut tower for ground. the one that bolts there. is there a connector similar to this and if so, what is it called so that i may buy it?" Call the dealership and ask them what you wrote above. They'll probably laugh at you. How are we supposed to know what your talking about? Is it a ring thing that holds the wire? Is it a terminal that attaches the wire to the chassis? Take/draw/find a picture of it or something?
My ground goes to the chassis, because I relocated my battery, and the ground from the Battery goes to the chassis!? ALL GROUND GOES TO THE CHASSIS!
The Wiring Diagram is shown in the FSM here: http://www.teamfc3s.org/main/factory_service_manual/
If your starter works fine why are you working on it???
#13
Sharp Claws
iTrader: (30)
i heated up the old terminal for the ground strap to the strut tower, removed it, cut the insulator off the new wiring and crimped it on there after putting it on the wire wheel and soldered it.
answer your question better?
i looked around for a bit and couldn't find a suitable replacement short of special ordering crap and hoping it was close and decent quality.
answer your question better?
i looked around for a bit and couldn't find a suitable replacement short of special ordering crap and hoping it was close and decent quality.
#15
Sharp Claws
iTrader: (30)
i suppose, all i did was go down to the auto parts store and get some generic cables that looked OE with soldered lead terminals and laid them down in the OE locations using the one old ground strap. good luck finding that one new anywhere.
i mean i felt better about it, actually having a red positive wire and all. it's not rocket science.
i mean i felt better about it, actually having a red positive wire and all. it's not rocket science.
#19
Rotary Enthusiast
iTrader: (1)

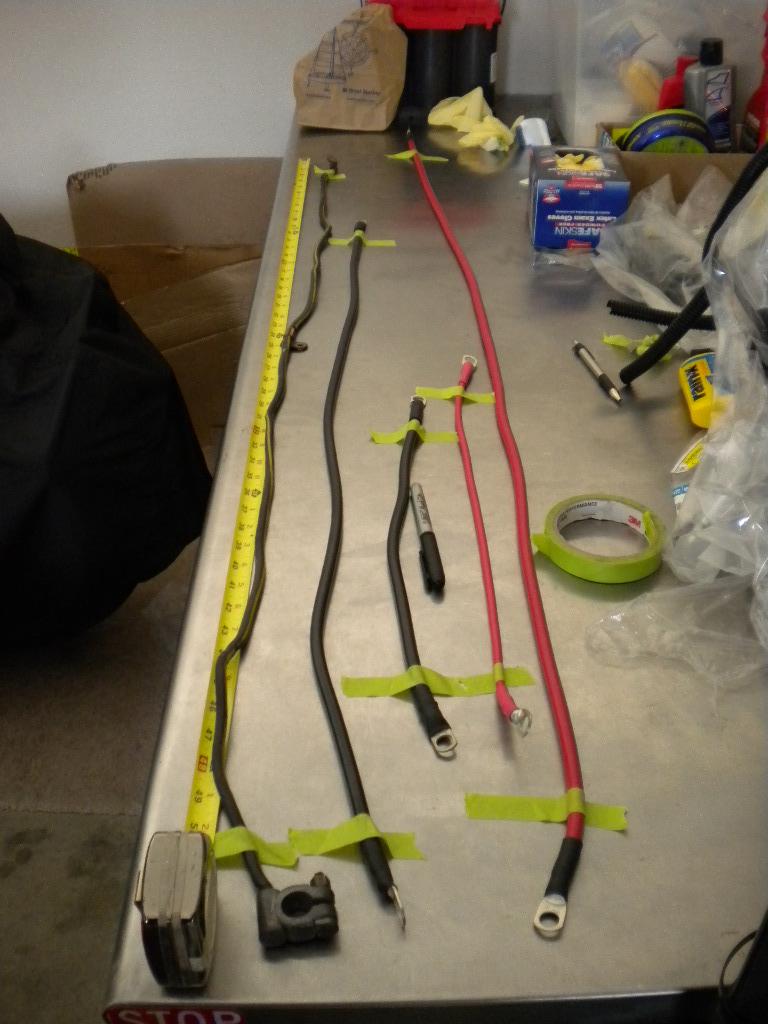

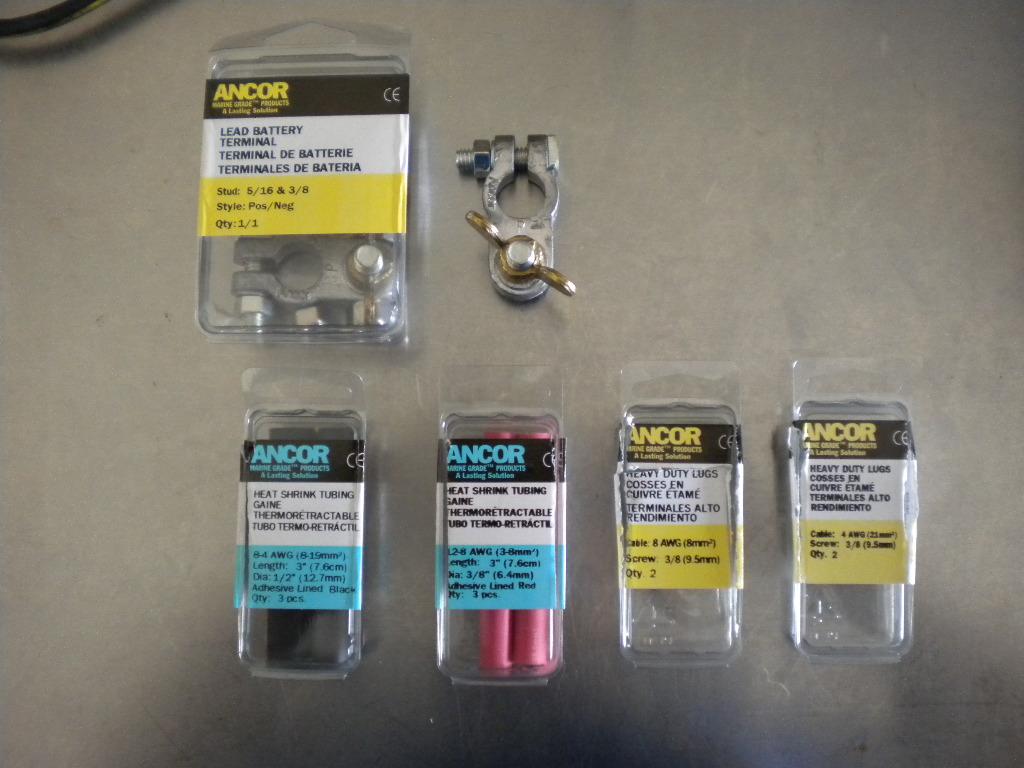

I did both my cars. Here's what I used marine grade since I live on the east coast. I used normal lugs with heat shrink and boat battery terminals.

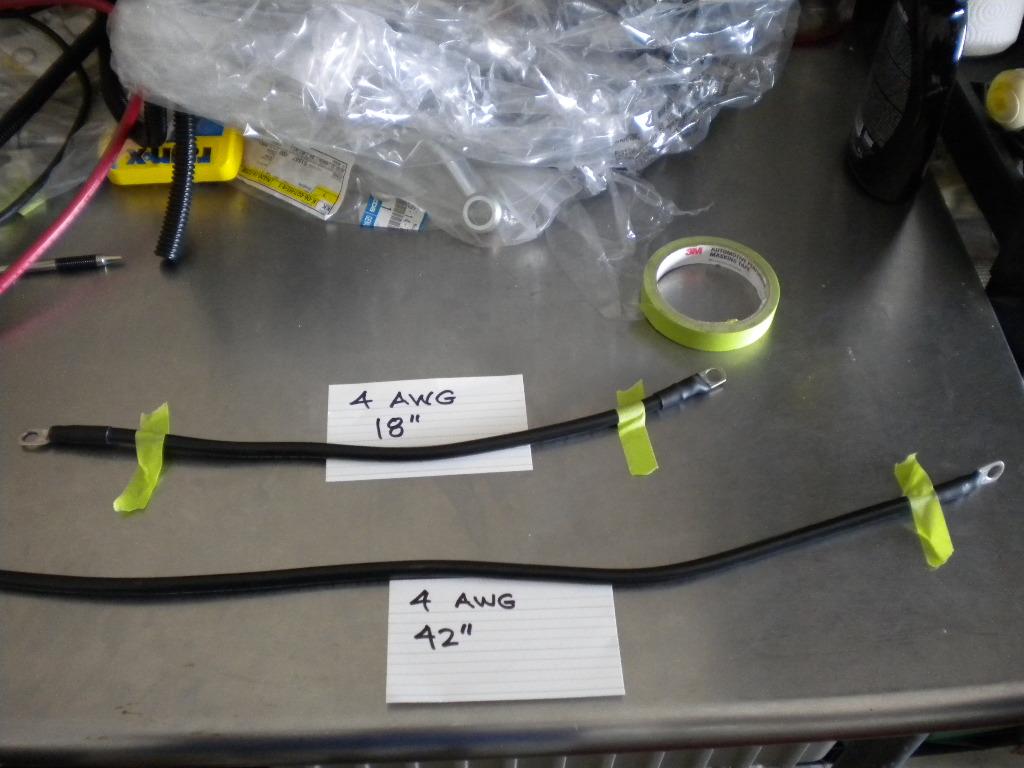

4 gauge black goes from (-) battery to strut tower
4 gauge black goes from (-) battery to starter bolt

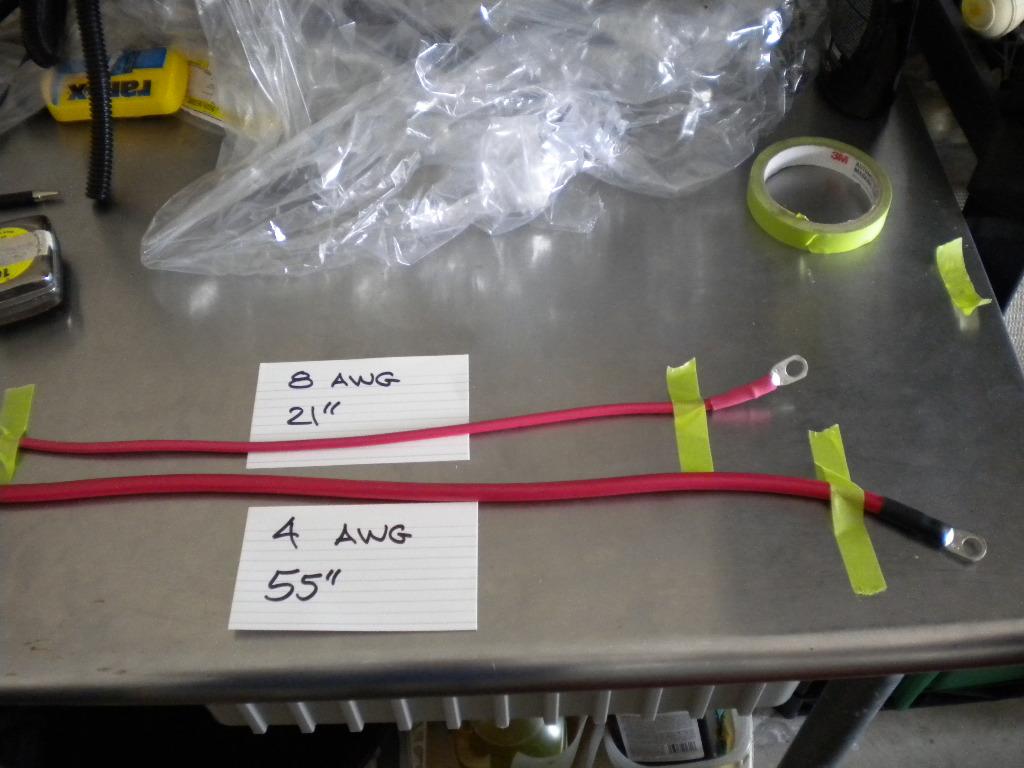

4 gauge red (+) from battery to starter terminal. I originally had 55 inch length but had to reduce it a foot because it was to long.
8 gauge red from (+) battery to fuse box.
4 gauge black goes from (-) battery to strut tower
4 gauge black goes from (-) battery to starter bolt
4 gauge red (+) from battery to starter terminal. I originally had 55 inch length but had to reduce it a foot because it was to long.
8 gauge red from (+) battery to fuse box.
#22
I FOUND WHAT I WAS LOOKING FOR!!!! i know its 2 years old but **** it, i found it.
its called a battery stud, or battery lug flag. weird huh?
http://www.grainger.com/Grainger/wwg...rue&sst=subset
its called a battery stud, or battery lug flag. weird huh?
http://www.grainger.com/Grainger/wwg...rue&sst=subset
