Location for these hoses?

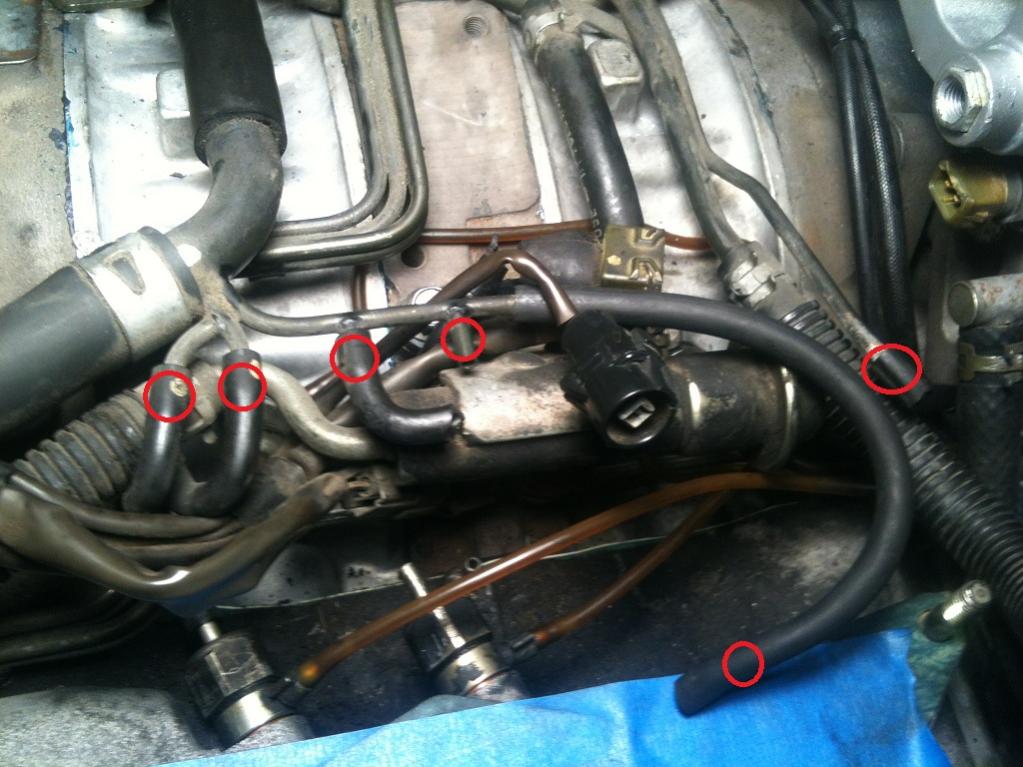

Hey guys i cant seem to find a clear diagram where these hoses go. Do they go on the oil metering banjo? Thanks!
Attached Thumbnails Location for these hoses?-loly.jpg
kagoostin is offline
Reply Like
Old 08-02-12, 03:08 AM
  #2
This is my social media.

iTrader: (22)

dwb87's Avatar

Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes on 0 Posts
Here's the S5 FSM -> Foxed.ca FREE Factory Service Manual: 1989 Mazda RX-7

I also found this picture with a Google search.

dwb87 is offline
Reply Like
Old 08-02-12, 04:34 PM
  #3
Full Member
Thread Starter
iTrader: (1)

kagoostin's Avatar

Join Date: Apr 2011
Location: San Diego
Posts: 103
Likes: 0
Received 0 Likes on 0 Posts
Where is that fourth hose going?
kagoostin is offline
Reply Like
Old 08-02-12, 07:47 PM
  #4
This is my social media.

iTrader: (22)

dwb87's Avatar

Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes on 0 Posts
The fourth hose from the left is routed to it's associated vacuum nipple. You can actually see the nipple in the photo you posted.
dwb87 is offline
Reply Like
Old 08-03-12, 01:31 AM
  #5
Full Member
Thread Starter
iTrader: (1)

kagoostin's Avatar

Join Date: Apr 2011
Location: San Diego
Posts: 103
Likes: 0
Received 0 Likes on 0 Posts
Okay thanks. I also had one more question. I was putting on the engine harness and I dont know where these plugs go. They're taped with the fuel injector wires on the iron if that helps. Thanks in advance
kagoostin is offline
Reply Like
