Little Square Tab = Ground?? Where...
#1
Rotary Enthusiast
Thread Starter
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
Little Square Tab = Ground?? Where...
I have this little square tab thing... I suppose it could be a capacitor or something?? it has no leads, just a little square black box and the tab like a grounding wire to be bolted to something.
Where does it go?
I'll take a picture if anyone needs it but I think you guys will know what I'm talking about. =)

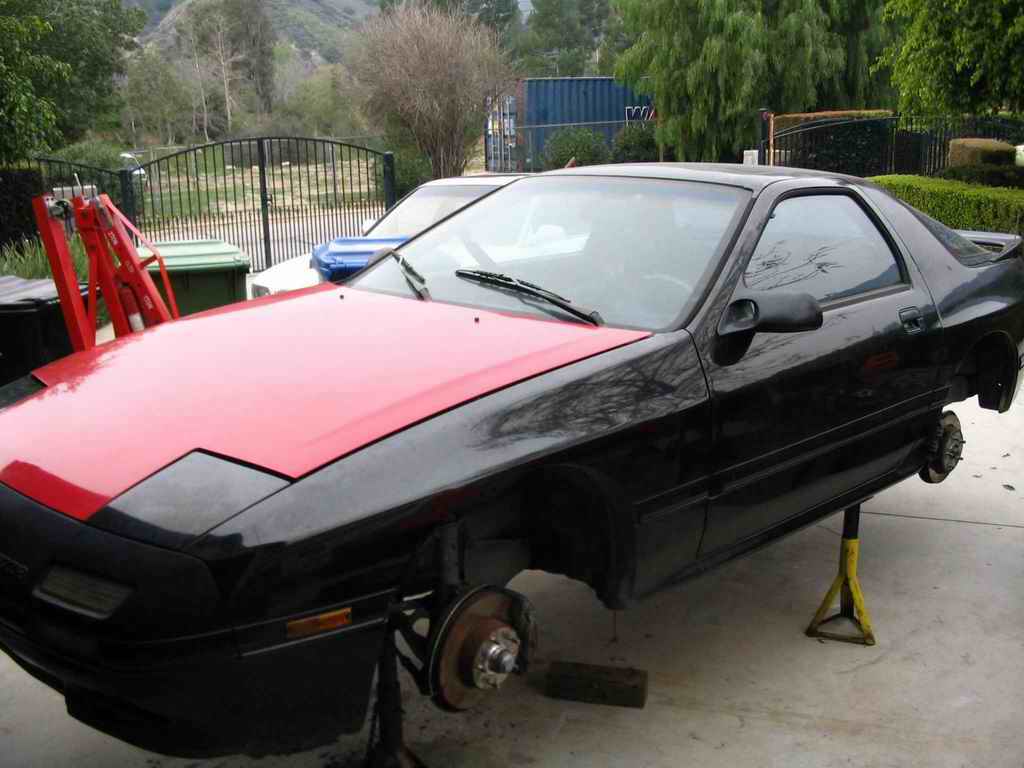

Oh, and should I go with my old car's hood? I just thought of it as a joke, I have the black hood in great condition...
But it matches my engine color scheme.... =) I'll have pics of that later.
--Gary
Where does it go?
I'll take a picture if anyone needs it but I think you guys will know what I'm talking about. =)
Oh, and should I go with my old car's hood? I just thought of it as a joke, I have the black hood in great condition...
But it matches my engine color scheme.... =) I'll have pics of that later.
--Gary
#3
Former Moderator. RIP Icemark.
It is a condensor, there are several through out the car.
Where is this one??
If it is under hood and on the engine area, then it is probably the oil pressure sender condensor and the metal tab mounts on the back of the engine or the clutch slave.
Where is this one??
If it is under hood and on the engine area, then it is probably the oil pressure sender condensor and the metal tab mounts on the back of the engine or the clutch slave.
#4
Rotary Enthusiast
Thread Starter
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Icemark
It is a condensor, there are several through out the car.
Where is this one??
If it is under hood and on the engine area, then it is probably the oil pressure sender condensor and the metal tab mounts on the back of the engine or the clutch slave.
Where is this one??
If it is under hood and on the engine area, then it is probably the oil pressure sender condensor and the metal tab mounts on the back of the engine or the clutch slave.
From where I left it, I'm making my best guess that it came from the driver's side engine bay either on the engine block or on the tranny/starter somewhere.
Any idea now?
Is it important that it is mounted in the right place? What lead should it have current to?
--Gary
#6
Former Moderator. RIP Icemark.
Originally Posted by Bob_The_Normal
Not sure, it's the only one I had to remove to pull the engine and transmission?
From where I left it, I'm making my best guess that it came from the driver's side engine bay either on the engine block or on the tranny/starter somewhere.
Any idea now?
Is it important that it is mounted in the right place? What lead should it have current to?
--Gary
From where I left it, I'm making my best guess that it came from the driver's side engine bay either on the engine block or on the tranny/starter somewhere.
Any idea now?
Is it important that it is mounted in the right place? What lead should it have current to?
--Gary
If you want to be sure, check to see if there is one on the engine next to the clutch slave.
#7
Rotary Enthusiast
Thread Starter
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts

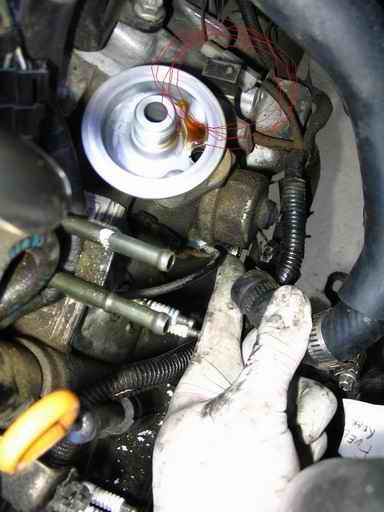

In trying to find a picture of it I found one with it attached! It was hiding quite well heh.
Glad I took a million pictures.
Here I circled it a bunch, can't see it that well but that's definately it. Looks like it bolts into the back of the oil filter pedistal.
So Icemark, what does this this thing do?
EDIT: It doesn't have any wires to connect to anything... so it's probably not what you were saying... unless it is and they're broken heh, hopefully not.
--Gary
Glad I took a million pictures.
Here I circled it a bunch, can't see it that well but that's definately it. Looks like it bolts into the back of the oil filter pedistal.
So Icemark, what does this this thing do?
EDIT: It doesn't have any wires to connect to anything... so it's probably not what you were saying... unless it is and they're broken heh, hopefully not.
--Gary
Last edited by Bob_The_Normal; 12-27-04 at 02:34 PM.
Trending Topics
#8
Former Moderator. RIP Icemark.
Yeah, that is the condensor.
Should have a black wire with single pin plug comeing off it. The wire will connect to a Yellow/Red wire single pin plug in that same area.
Should have a black wire with single pin plug comeing off it. The wire will connect to a Yellow/Red wire single pin plug in that same area.
