lean AND rich??
hello, my car has been running lean ever since i bought it (i have a a/f ratio gauge, it idles at about 20-21) but when i check the spark plugs, they are black like they are running rich.
my car:
i have a streetport, and i just got done doing a silicon hose job. When i first started the car after the job, it ran perfectly with a a/f ratio of 14.7 and idled perfectly. however, the 2nd time i started it up my idle went rough and i had some afterburn noises, and after it was heated up fully, my idle would die for a sec and then recover like little falls and jumps on the rpm gauge. oh btw, there is kind of a light squeaky noise when i floor it fast or when im at high rpm during a small drive. My car's warm up system is was fine during that first start up too, but after i did the 2nd startup and since, it goes to 3k but then stops at 2k and doesn't go down unless i unplug the blue solenoid in which my idle gets a little better, but my a/f ratio goes to about 14.2 (idk what this is or if it matters)! adn then the idle just stays at like 1500 after i plug it back in.
i do not use this car daily, i am working on it, so it sits in the garage. idk if they would help but its just info haha. Now, BEFORE the hose job, my car still was running lean but the afterburn noises were alot worse and it wanted to die when i would drive it then stop somewhere.
could someone please help my diagnose this problem?
if you need anymore info just ask! idk what this is and i've been searching for a good month. and i need my car soon cuz i need to get a job for summer :/
my car:
i have a streetport, and i just got done doing a silicon hose job. When i first started the car after the job, it ran perfectly with a a/f ratio of 14.7 and idled perfectly. however, the 2nd time i started it up my idle went rough and i had some afterburn noises, and after it was heated up fully, my idle would die for a sec and then recover like little falls and jumps on the rpm gauge. oh btw, there is kind of a light squeaky noise when i floor it fast or when im at high rpm during a small drive. My car's warm up system is was fine during that first start up too, but after i did the 2nd startup and since, it goes to 3k but then stops at 2k and doesn't go down unless i unplug the blue solenoid in which my idle gets a little better, but my a/f ratio goes to about 14.2 (idk what this is or if it matters)! adn then the idle just stays at like 1500 after i plug it back in.
i do not use this car daily, i am working on it, so it sits in the garage. idk if they would help but its just info haha. Now, BEFORE the hose job, my car still was running lean but the afterburn noises were alot worse and it wanted to die when i would drive it then stop somewhere.
could someone please help my diagnose this problem?
if you need anymore info just ask! idk what this is and i've been searching for a good month. and i need my car soon cuz i need to get a job for summer :/
06-10-09, 01:12 PM
#4
Right near Malloy
iTrader: (28)
Join Date: Dec 1999
Location: Behind a workbench, repairing FC Electronics.
Posts: 7,839
Received 505 Likes
on
342 Posts
What KIND of A/F ratio gauge? And What KIND of O2 sensor...
If that sensor is stock or has less than four wires and if you paid less than $150 for that gauge, you've got a Narrow band gauge, which I think are useless.
If that sensor is stock or has less than four wires and if you paid less than $150 for that gauge, you've got a Narrow band gauge, which I think are useless.
06-11-09, 06:21 PM
#7
No wankel= no man
Thread Starter
Join Date: Nov 2008
Location: Woodland ca.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
yup the afr is about 21 at idle, but i have a fuel controller so i bumped it down to like 18. idk what kind of o2 sensor or gauge cuz it was on the car when i got it (same with the fuel controller). So i will go check out the 02 sensor right now and see what i find.
Trending Topics
06-11-09, 07:55 PM
#8
Rotary Freak
Port Air is dumped into the exhaust PORTS which are located.....................prior to the 02 sensor. Then it goes on to the catalytic converter.
There's been no mention as to if the airpump or ACV is still on the car.
Most 02 controllers have the manufacturers name on it.
There's been no mention as to if the airpump or ACV is still on the car.
Most 02 controllers have the manufacturers name on it.
06-11-09, 08:13 PM
#10
Most of the air supplied to the cats comes from the port path (exhaust ports -> DP -> cat). The split air path does go directly to the main cat, but it barely flows at all until you're in 5th gear. You can pass the sniffer part of a smog test w/out the split air pipe. This is on US-spec cars. J-specs have the split air path open more often (no split air solenoid).
But back to the original topic, 20:1 is what a wideband reads when there is zero fuel going in and you're in decel. I would think you'd see #s somewhere in the high teens if the air pump was dumping air into the exhaust.
But back to the original topic, 20:1 is what a wideband reads when there is zero fuel going in and you're in decel. I would think you'd see #s somewhere in the high teens if the air pump was dumping air into the exhaust.
06-12-09, 07:55 AM
#11
Rotary Freak
Like 88 said above.
The air goes to the exhaust ports sleeve area to mix with the exhaust gasses. The way understand this. this is to get the exhaust gasses to read close to 14.7afr prior to reaching the converter. As THE BOOK mentions, the converter is most effiecient when the gasses entering it are in the 14.7 afr range.
Once the car is in motion, fully warmed up and being driven down the street, the 02 sensor and its feedback to the ECU make the car go into closed loop. Closed loop means afr in the range of 14.7afr. So at this point there is no real need for the airpump/ACV/air to the exhaust. Right? Right.
Split air does not do that much in life in my very humble opinion. There are times when have been driving over 120 seconds steadily, when all the airpump air goes overboard into the right front fenders silencer. See what I mean? Yes.
And the Split Air Solenoid on the ACV activates when fifth gear is selected, adding a bit more volume to the air in the split air pipe, but if you ever really look at it, when your in fifth gear, the relief valve in the ACV is fully open to relive the air pump air to the silencer in the right front fender.......................so I ask myself, just how much air can really get into the split air pipe via the Split air solenoid. What with little to no pressure to send it to the split air pipe (remember the relief valve is fully open to the silencer in the fender).
I know the jpg attached is talking about the 02 sensor and closed loop, but the same OBJECTIVE is being obtained at idle and low speeds , by the ACV and its control solenoids (relief, switching solenoids) by adding fresh air to the exhaust ports on the engine.
The air goes to the exhaust ports sleeve area to mix with the exhaust gasses. The way understand this. this is to get the exhaust gasses to read close to 14.7afr prior to reaching the converter. As THE BOOK mentions, the converter is most effiecient when the gasses entering it are in the 14.7 afr range.
Once the car is in motion, fully warmed up and being driven down the street, the 02 sensor and its feedback to the ECU make the car go into closed loop. Closed loop means afr in the range of 14.7afr. So at this point there is no real need for the airpump/ACV/air to the exhaust. Right? Right.
Split air does not do that much in life in my very humble opinion. There are times when have been driving over 120 seconds steadily, when all the airpump air goes overboard into the right front fenders silencer. See what I mean? Yes.
And the Split Air Solenoid on the ACV activates when fifth gear is selected, adding a bit more volume to the air in the split air pipe, but if you ever really look at it, when your in fifth gear, the relief valve in the ACV is fully open to relive the air pump air to the silencer in the right front fender.......................so I ask myself, just how much air can really get into the split air pipe via the Split air solenoid. What with little to no pressure to send it to the split air pipe (remember the relief valve is fully open to the silencer in the fender).
I know the jpg attached is talking about the 02 sensor and closed loop, but the same OBJECTIVE is being obtained at idle and low speeds , by the ACV and its control solenoids (relief, switching solenoids) by adding fresh air to the exhaust ports on the engine.
06-12-09, 08:18 AM
#12
Rotary Freak
OH yeah. Let it be known to the thread owner that the wideband sensors/controllers show a lean mixture for the first minute or so on engine startup. The sensor has to get up to operating temperature in order to send a accurate afr signal.
06-12-09, 10:10 AM
#13
Air is not added to the exhaust system to make the O2 sensor read 14.7:1. It is added to the system so there will be enough oxygen present to burn off the remaining particulates in the exhaust system that were the result of incomplete combustion. These can't be burned off without the presence of oxygen. A 13B can not pass emissions at low speeds without an airpump for this very reason. It could at higher speeds but that's not where most emissions tests take place anyways.
06-12-09, 12:12 PM
#14
Rotary Freak
Air is not added to the exhaust system to make the O2 sensor read 14.7:1. It is added to the system so there will be enough oxygen present to burn off the remaining particulates in the exhaust system that were the result of incomplete combustion. These can't be burned off without the presence of oxygen. A 13B can not pass emissions at low speeds without an airpump for this very reason. It could at higher speeds but that's not where most emissions tests take place anyways.
Nowhere above did I even mention air was added to the exhaust ports to make the 02 sensor read 14.7 afr. It's NOT the 02 sensor that matters at idle in any way shape or form. We all know closed loop only occurs at driving speeds and rpm over approx 1500 rpm and the 02 has no play at any speed under that. You can Trick the ECU to go into closed loop in the driveway, but that's another matter. Not a normal thing.
I wrote that the air is added to the exhaust gasses to make the afr mixture read closer to 14.7 afr BECAUSE that is the reading/mixuture the catalytic converter works at best. See jpg in my other post.
A normal half *** good idling RX has a AFR of approx 13-13.5 afr at idle if you disable the airpump. When you put the airpump/ACV back into the system the afr will read in the 14-16afr range due to the Port Air.
I DID write above that once the car is moving and actually being driven down the road, the 02 sensor and ECU working together go into closed loop and the afr in closed loop is approx 14.7 afr , and again if you read the jpg attached above it indicates that is the afr the converter works best at.
Air is NOT always injected into the exhaust Ports. After steady driving for approx 120 seconds, the relief solenoid de-energizes and causes the relief valve in the ACV to open and dump the air into the silencer, so when that happens there ain't no damn air going into the converter. Been there seen it too many times.
06-12-09, 02:04 PM
#15
Not sure why the hostile attitude. I didn't claim air always goes into the exhaust. It depends on many things and can be sent to the exhaust ports, to the cat, to both, or to neither. I did however contribute and explain why air is injected into the exhaust system which is something no one else said. It is there to supply the needed oxygen to help the remaining elements to burn off.
Now saying that, the air is not injected because the cat works most efficiently at 14.7:1. That's not true and your pdf doesn't even say that although you somehow are interpreting it that way which is wrong! The cat works best above a certain temperature, not a/f ratio. The hotter the better. The downside is we have to balance that heat with cat life as too much heat will kill it quickly. Not enough heat and it won't do it's job effectively.
The 14.7:1 afr has NOTHING to do with the cat. It has everything to do with being the theoretical ratio (using gasoline) at which the engine burns up all the available fuel and air resulting in the lowest emissions. Now we know that's in a perfect world and since we don't live in one, there are some leftovers. That is however where most of it is burned up. The remaining amounts that aren't burned up go out the exhaust. The cat's job is to heat up and provide a large surface area over which to allow these leftover emissions to finish burning up and hence convert into less noxious emissions. However depending on several variables, it may or may not need help from excess oxygen to do so. Adding air through an airpump supplies this oxygen when necessary. Depending on the exhaust velocity it may be more benefical to either supply it to the exhaust ports or farther down in the cat itself. At other times it isn't needed. The more efficient your combustion, the less you'll need an air pump. Most cars today only use an electric airpump to clean up emissions immediately after the engine is started and nowhere else. That's because an engine runs rich until warm (it needs to) which means the odds of unburned gasses going out the tailpipe is higher and will hence need more air to help burn it off in the cat.
Now saying that, the air is not injected because the cat works most efficiently at 14.7:1. That's not true and your pdf doesn't even say that although you somehow are interpreting it that way which is wrong! The cat works best above a certain temperature, not a/f ratio. The hotter the better. The downside is we have to balance that heat with cat life as too much heat will kill it quickly. Not enough heat and it won't do it's job effectively.
The 14.7:1 afr has NOTHING to do with the cat. It has everything to do with being the theoretical ratio (using gasoline) at which the engine burns up all the available fuel and air resulting in the lowest emissions. Now we know that's in a perfect world and since we don't live in one, there are some leftovers. That is however where most of it is burned up. The remaining amounts that aren't burned up go out the exhaust. The cat's job is to heat up and provide a large surface area over which to allow these leftover emissions to finish burning up and hence convert into less noxious emissions. However depending on several variables, it may or may not need help from excess oxygen to do so. Adding air through an airpump supplies this oxygen when necessary. Depending on the exhaust velocity it may be more benefical to either supply it to the exhaust ports or farther down in the cat itself. At other times it isn't needed. The more efficient your combustion, the less you'll need an air pump. Most cars today only use an electric airpump to clean up emissions immediately after the engine is started and nowhere else. That's because an engine runs rich until warm (it needs to) which means the odds of unburned gasses going out the tailpipe is higher and will hence need more air to help burn it off in the cat.
06-12-09, 03:35 PM
#16
Rotary Freak
No. I'm sticking with the idea that the air is sent to the exhaust ports when the car isn't in closed loop, to obtain a afr of close to 14.7afr which the converter can more easily do its job.
When in closed loop the port air isn't needed because the ECU/02 sensor re controlling the afr close to 14.7afr without the need for addional air.
It's similar to having a setting a 750 rpm idle with the BAC nulled out, then when the BAC is put back in the system it does not have to work as hard to recover from loads put on the engine.
When in closed loop the port air isn't needed because the ECU/02 sensor re controlling the afr close to 14.7afr without the need for addional air.
It's similar to having a setting a 750 rpm idle with the BAC nulled out, then when the BAC is put back in the system it does not have to work as hard to recover from loads put on the engine.
06-13-09, 09:28 PM
#18
No wankel= no man
Thread Starter
Join Date: Nov 2008
Location: Woodland ca.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
well i took off my o2 sensor and its a single wire. it is covered in white stuff so its running lean right? and i was inspecting the wire that the o2 sensor was connected to and the guy who had the car before was a dumbass cuz there was 3 wire connectors keeping the wire together. i wonder if the breaks in the wire might change what my o2 sensor is reading because of the added resistance in the wire??
i don't know jack squat about o2 sensors, and the whole exhaust ports thing im actually not all that familiar with, i've never really looked into the rx7 emissions stuff. so im going to try to test or replace the 02 sensor...but i'd appreciate it if somone could simplify the whole exhaust thing that was being talked about.
thanks
david
i don't know jack squat about o2 sensors, and the whole exhaust ports thing im actually not all that familiar with, i've never really looked into the rx7 emissions stuff. so im going to try to test or replace the 02 sensor...but i'd appreciate it if somone could simplify the whole exhaust thing that was being talked about.
thanks
david
06-13-09, 09:55 PM
#19
well i took off my o2 sensor and its a single wire. it is covered in white stuff so its running lean right? and i was inspecting the wire that the o2 sensor was connected to and the guy who had the car before was a dumbass cuz there was 3 wire connectors keeping the wire together. i wonder if the breaks in the wire might change what my o2 sensor is reading because of the added resistance in the wire??
i don't know jack squat about o2 sensors, and the whole exhaust ports thing im actually not all that familiar with, i've never really looked into the rx7 emissions stuff. so im going to try to test or replace the 02 sensor...but i'd appreciate it if somone could simplify the whole exhaust thing that was being talked about.
thanks
david
i don't know jack squat about o2 sensors, and the whole exhaust ports thing im actually not all that familiar with, i've never really looked into the rx7 emissions stuff. so im going to try to test or replace the 02 sensor...but i'd appreciate it if somone could simplify the whole exhaust thing that was being talked about.
thanks
david
Also, white/light tan build up on an 02 sensor is normal. 90% of driving is done around 14.7 AFR. You can't jump to the conclusion that you're running lean based on its color. Same goes for reading spark plugs. Unless it's a dedicated track/drag car, there's a whole lot of "lean" condition driving to create light colored deposits.
06-14-09, 10:23 PM
#20
No wankel= no man
Thread Starter
Join Date: Nov 2008
Location: Woodland ca.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
lol whoops ok i guess i took out the wrong sensor. like i said before i don't know anything about o2 sensors. sooo i guess i'll take out the other one XD
06-20-09, 02:48 PM
#21
No wankel= no man
Thread Starter
Join Date: Nov 2008
Location: Woodland ca.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
took out my wideband o2 sensor and it seemed perfectly fine when i tested it but im replacing my stock one cuz it looks like it might be bad when i tested it...i'll probably be getting it in about a week and then i'll put it in and post what happens
in the meantime if anyone has an idea of what could be the problem if its not the o2 sensor feel free to comment...
in the meantime if anyone has an idea of what could be the problem if its not the o2 sensor feel free to comment...
06-21-09, 07:10 PM
#23
No wankel= no man
Thread Starter
Join Date: Nov 2008
Location: Woodland ca.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
it is a innovate motorsports wideband sensor and apexi fuel controller. and i have the stock airpump and acv.
nobody has addressed whether or not unplugging that blue solenoid connect is supposed to richen my car. the high idle issue has been fixed somewhat because i found my fast idle cam was off, and i fixed it. now it just idles a little higher than normal (like 1200-1100) but still has all the other problems :/
nobody has addressed whether or not unplugging that blue solenoid connect is supposed to richen my car. the high idle issue has been fixed somewhat because i found my fast idle cam was off, and i fixed it. now it just idles a little higher than normal (like 1200-1100) but still has all the other problems :/
06-21-09, 08:22 PM
#24
Rotary Freak

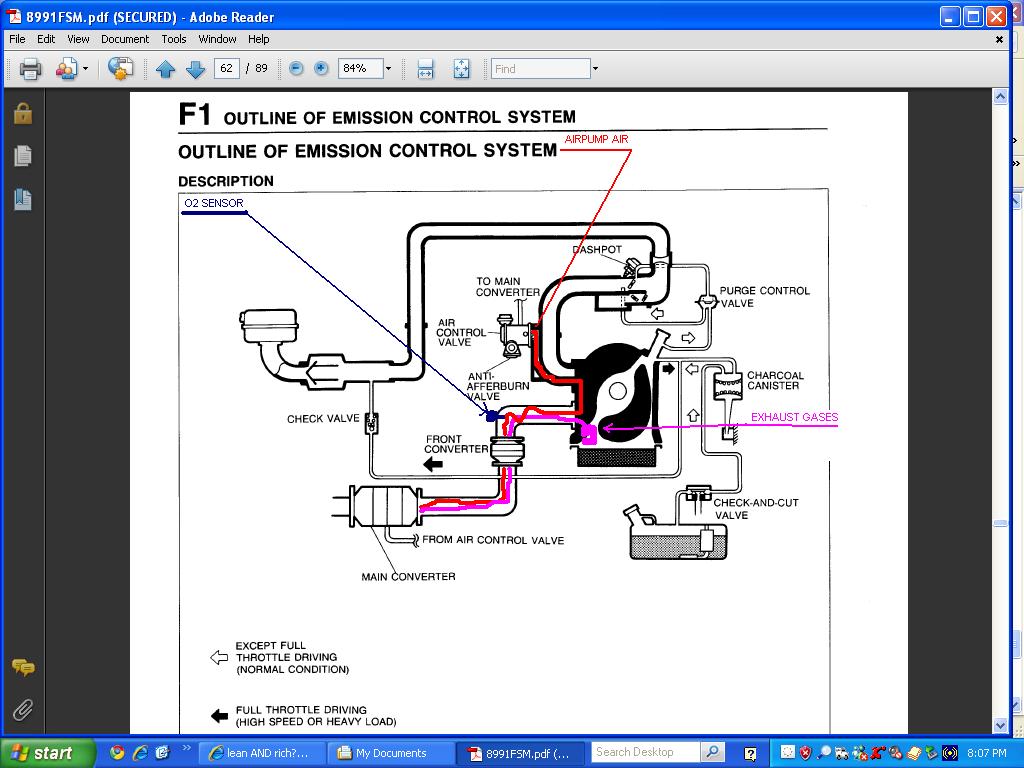

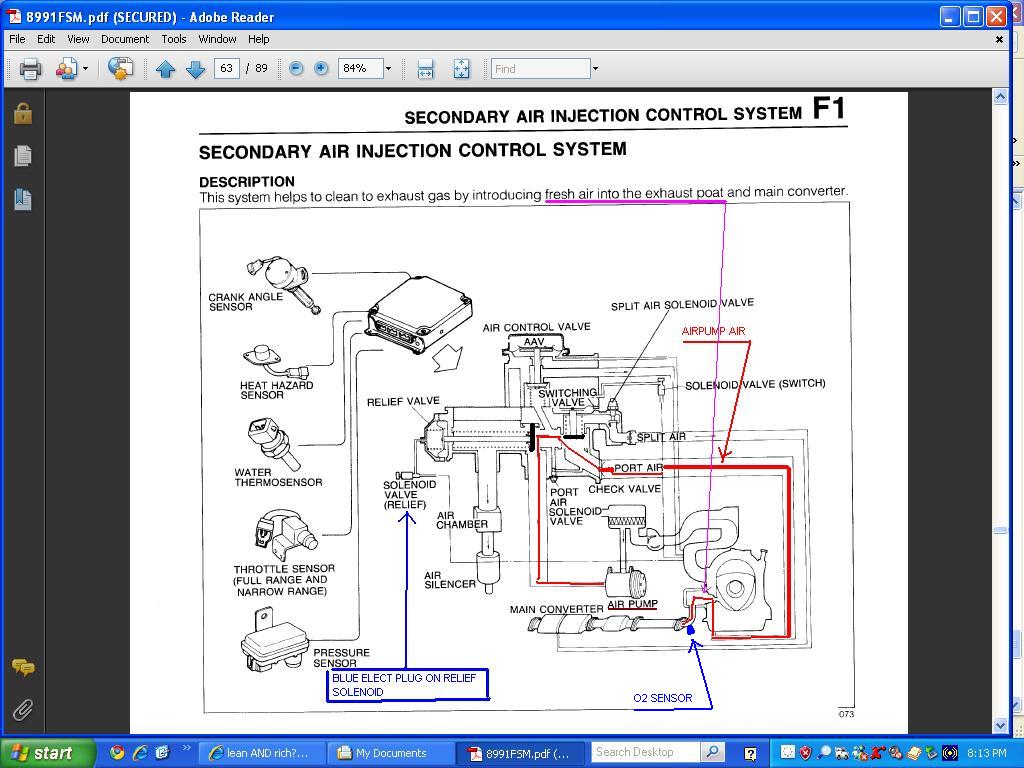

IF your car is a 91na like I read in another thread by you, then if you remove the Blue plug from the Relief solenoid on the left side of the engine, you will THEN read the real afr the engine is running at. The airpump air will not go to the exhaust ports now but get dumped into the silencer in the right front fender.
IF you put the Blue relief solenoid plug back on, then the air from the air pump will again be mixed with the gases from the engine and give a false reading of the afr being burnt in the engine.
You know where the 02 sensor is. So you realize if the airpump air is dumped into the piping prior to the 02 sensor your going to get a false afr reading. Right? Right. IF no air pump air is dumped into that piping, then your going to read only the exhaust gasses and the afr reading will be the real thing.
On a normal car the afr will be in the low 13afr. If the airpump air is dumped into that pipe the reading will go up into the 15-16afr readings because of the exhaust gas being diluted with airpump air.
IF you put the Blue relief solenoid plug back on, then the air from the air pump will again be mixed with the gases from the engine and give a false reading of the afr being burnt in the engine.
You know where the 02 sensor is. So you realize if the airpump air is dumped into the piping prior to the 02 sensor your going to get a false afr reading. Right? Right. IF no air pump air is dumped into that piping, then your going to read only the exhaust gasses and the afr reading will be the real thing.
On a normal car the afr will be in the low 13afr. If the airpump air is dumped into that pipe the reading will go up into the 15-16afr readings because of the exhaust gas being diluted with airpump air.
06-22-09, 09:20 PM
#25
No wankel= no man
Thread Starter
Join Date: Nov 2008
Location: Woodland ca.
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
so something is dumping too much air into the exhaust if the reading is only supposed to be around 16? would this be an acv malfunction or an airpump problem?
