1169rotory

Hi I just bought a 88 rx-7 10th ae.I do not know that much about rotory engines and I saw changing the plugs and now I do not know where the 1 lead and trailing go.Can some one help me.

john ward

iTrader: (7)

leading lower trailing top 1 towards front

DarkKnightFC

Are you serious? They have an L and a T beside the plug holes.

SpooledupRacing

but if his motor is cacked with oil/grease then it may be hard to see if possible!
not only that but if he is a newb maybe he did not know to look there I know when I bought mine I did'nt no other car in the world I knwo of does

Gremlin

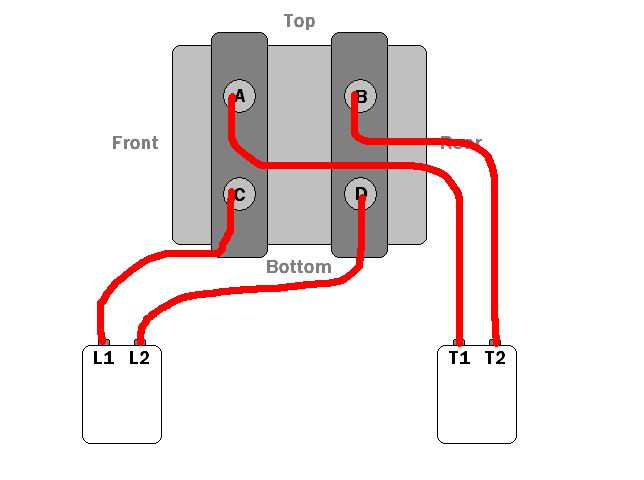

This was listed on another thread here in the 2nd Gen section. Helped me out.

Sideways7

iTrader: (7)

Wow, that pic is awesome. I realize its easy to figure it out, but its still nice to see it visually like that.
For future searching: spark plug wire location picture.

NZConvertible

Most of the technical info you'll need to servicing and repairing these cars can be found in the Factory Service Manual (FSM). Click here and download it in PDF format for free. Also go out and buy a Haynes manual. It doesn't have as much info, but it has good photos and is written in a fashion easier to follow.

Sideways7

iTrader: (7)

For many simple tasks I find the haynes easier to use. Like he said, it is easier to follow and doesn't get bogged down in deails like the FSM can. The way I describe it is that they complement each other.
