JDM Twin Turbo Conversion On A Vert!
So last night we were tinkering with my buddies vert. He has this twin turbo kit lying in the back of the garage and jokingly says we should put it on. Well a few hours/beers later we have the block tore down and these turbos mounted up. I'll get some pics up tonight to show some of the progress.
Were going to be running this off a microtech. I know the N/A engine harness is a lot different than the Turbo. So I think if we get rid of that and go full stand alone we'll have to rewire the alternator and a few other things for everything to work, right?
We removed the 5/6 port sleeves and had to cut both actuator ports off the lower intake manifold then blocked them and the acv off.
Today we are going to mount the intercooler and upgrade the stock rad to a koyo then start putting it all back together. The way the intercooler pipe bends for this kit, it makes it perfect to use the stock n/a intake.
We are not sure were to tap the oil feed and return lines though. Probably the oil cooler and the pan?
Were going to be running this off a microtech. I know the N/A engine harness is a lot different than the Turbo. So I think if we get rid of that and go full stand alone we'll have to rewire the alternator and a few other things for everything to work, right?
We removed the 5/6 port sleeves and had to cut both actuator ports off the lower intake manifold then blocked them and the acv off.
Today we are going to mount the intercooler and upgrade the stock rad to a koyo then start putting it all back together. The way the intercooler pipe bends for this kit, it makes it perfect to use the stock n/a intake.
We are not sure were to tap the oil feed and return lines though. Probably the oil cooler and the pan?
#7
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
Can't run seq unless you swap in a FD harness/ECU/solenoid rack/etc, which, in the end, doesn't even become worth it, and it's better off just running a properly sized single anyway.
Trending Topics
#8
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by walken
Were going to be running this off a microtech. I know the N/A engine harness is a lot different than the Turbo. So I think if we get rid of that and go full stand alone we'll have to rewire the alternator and a few other things for everything to work, right?
We are not sure were to tap the oil feed and return lines though. Probably the oil cooler and the pan?
For feed, you have several options. Perhaps the easiest is to get an oil filter pedistole from Speed Machine/Racing Beat/Mazdatrix/etc. They have two 1/8" NPT ports for gauges cut into them already. Just use the appropriate adapter to bring it to AN size, and go from there.
You can also tap the oil cooler banjo bolts. Or, make a set of AN/braided stainless oil cooler lines with a T fitting in the feed (the one that leads to the rear of the engine). Or weld a bung onto the cooler itself (bit of a pain, unless you are already welding on the cooler for something else).
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by SonicRaT
Can't run seq unless you swap in a FD harness/ECU/solenoid rack/etc, which, in the end, doesn't even become worth it, and it's better off just running a properly sized single anyway.
#10
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,624
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by Aaron Cake
Easiest thing to do for the drain is to go to the pan. Pull it off, and weld on a bung/pipe, then make a line.
Originally Posted by Aaron Cake
You're assuming that these are FD turbos. There were several Japan only twin turbo kits sold for the FC.
#16
Lives on the Forum
Uh, another Troll???
"Twin turbo kit" can mean anything.
If it's stock FD or Cosmo, there is no way in hell it'll just bolt onto a 6-port motor.
It's bad enough on a 13BT, but there 6-port LIM sticks out even more.
Something stinks...
-Ted
"Twin turbo kit" can mean anything.
If it's stock FD or Cosmo, there is no way in hell it'll just bolt onto a 6-port motor.
It's bad enough on a 13BT, but there 6-port LIM sticks out even more.
Something stinks...
-Ted
#17
Registered Loser
Thread Starter
iTrader: (6)
Join Date: Dec 2002
Location: Whiterock
Posts: 2,224
Likes: 0
Received 0 Likes
on
0 Posts
Non belivers ey? Oh well, here is some pics of the progess.

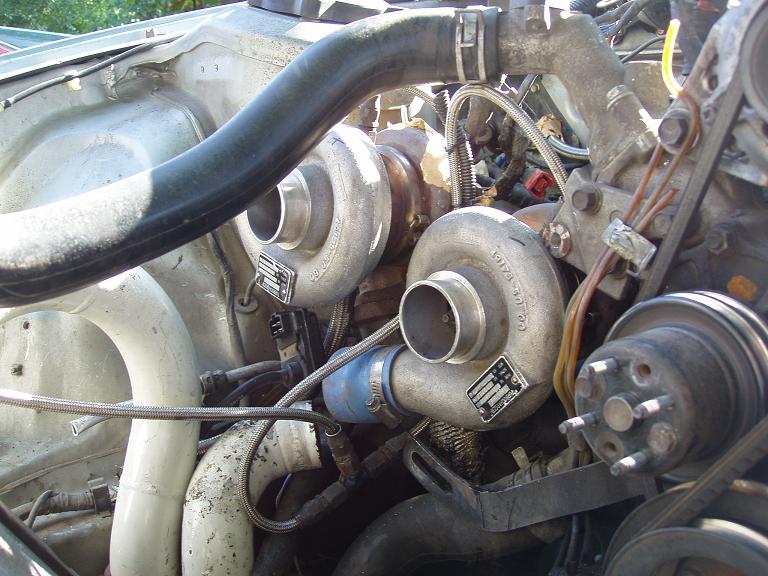

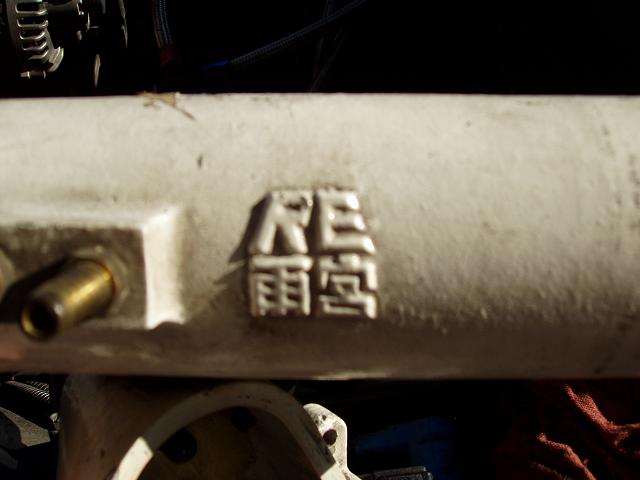

88 Vert, S4 6 Port block, maybe it is a first.... yeah I think its definately a first. lol

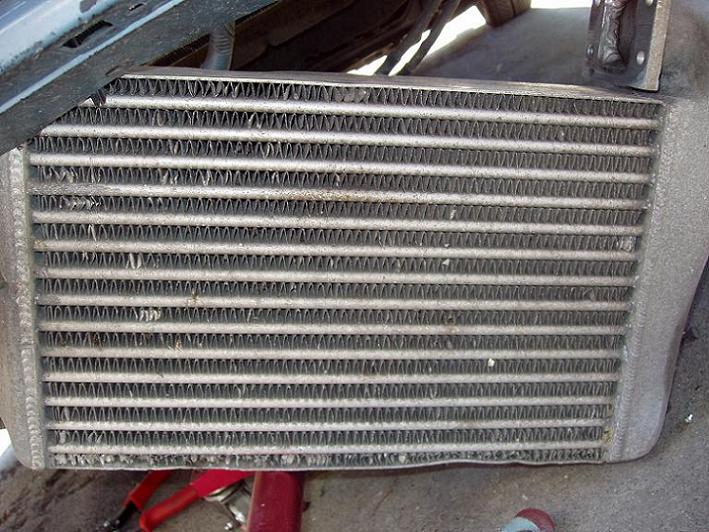

here is the intercooler dropped, its so old school the s4 maf bolts to it!

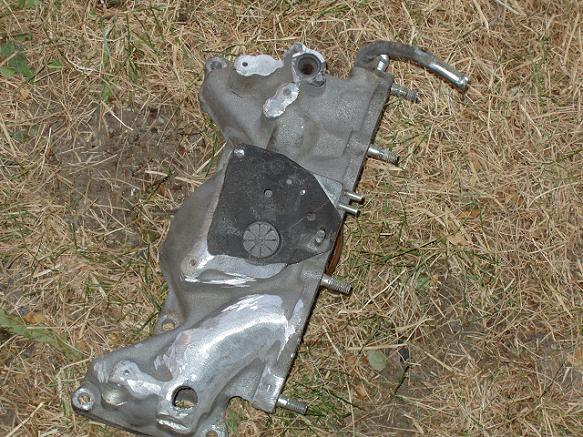

here is the grinded down s4 lim

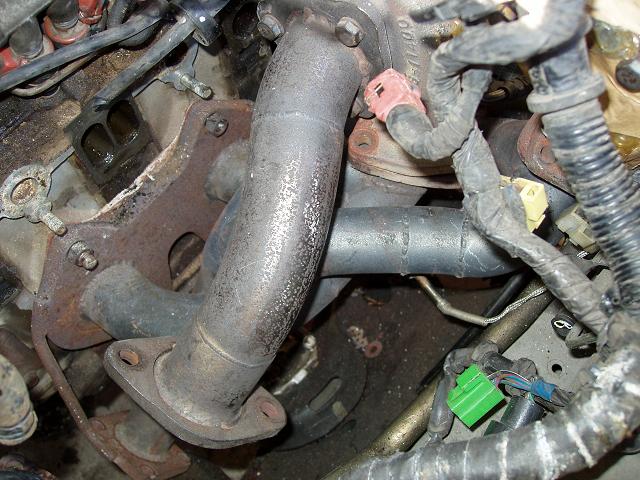

here is a test fit of the exhaust manifold
and here's the mad doctor
88 Vert, S4 6 Port block, maybe it is a first.... yeah I think its definately a first. lol
here is the intercooler dropped, its so old school the s4 maf bolts to it!
here is the grinded down s4 lim
here is a test fit of the exhaust manifold
and here's the mad doctor
#23
Lives on the Forum
It's obviously not stock...
Yes, that's a custom twin turbo system.
Any monkey can bolts things together.
Get it running and post back your results!
-Ted
Yes, that's a custom twin turbo system.
Any monkey can bolts things together.
Get it running and post back your results!
-Ted
Last edited by RETed; 07-05-05 at 12:47 AM.
#24
Registered Loser
Thread Starter
iTrader: (6)
Join Date: Dec 2002
Location: Whiterock
Posts: 2,224
Likes: 0
Received 0 Likes
on
0 Posts
yeah, tuning the microtech is going to be the hardest part and we ran into some snags today, but it should be all worked out by the weekend.

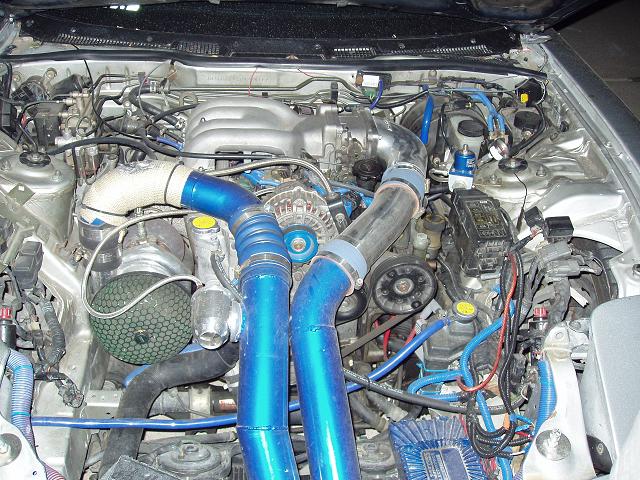

Here is my buddy's setup. He did it all himself. T04R, 460hp at 13psi
Here is my buddy's setup. He did it all himself. T04R, 460hp at 13psi
