anyone have any pics of a stock S4 turboII interior at night with all dash lights and lights on the radio and logicon illuminated. i'm trying to figure out exactly how many lights are actually illuminated and what the interior will look like. i'm sorting out electrical issues and lighting issues in my 10AE and this will be a big help!



i dunno would a 1990 s5 n/a be the same?



should be close enough



Gauge lights, clock, logicon sliders and the pictograms atop the push buttons. Radio controls and pictograms. Cig lighter and ash-tray. If you've got A.A.S. (GXL only) then those controls should also be illuminated.

I think that covers it, bud.

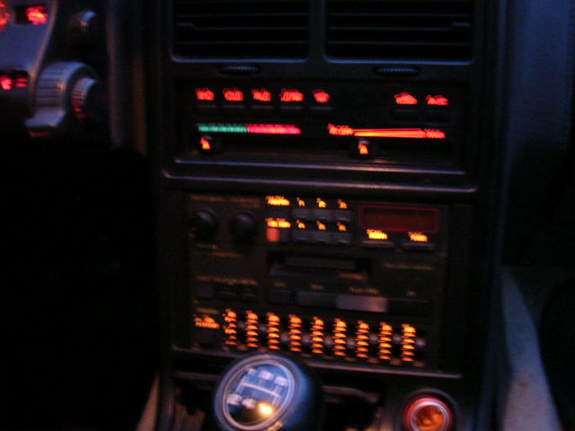

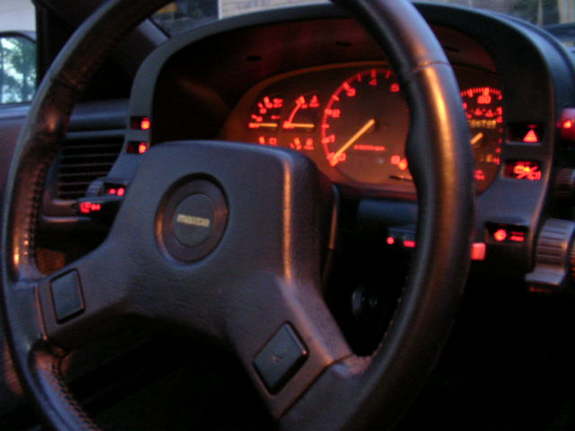

Addition: I know that it's blurry, but it's the best I could find. It's an S4 GXl...all interior lights worked but the A.A.S. control, if I remember correctly. Radio is off.



thanks!!! it looks as if my logicon lights are pretty much out it also seems that the light for my rear wiper control is out. even my needles are out nad i replaced all of the bulbs in the cluster



the part number for the special logicon lights that are available at radio shack is: 272-1092



do the needles actualy light up? ive got some white euro gauges in mine and the needles dont seem to light up it just reflects light off of the gauge face.



Mine don't. That's the problem with the aftermarket white face gauges, you can't see the needles at night for ****



the needles are supposed to light up on stock cars. mine dont and i have to figure out why the light is not getting directed to the needles.



I didn't think they lighted up so much as just "transfered" light.



fellow AE owner.
the needles on my gauges light up . EVERYTHING on my car
is in perfect working order. i made sure before i purchased it.
Like 5A said it may be a light transfer more than lighting up, but anyhow, they should obviously be visible.
EVERYTHING works perfectly! hope i helped some

http://www.angelfire.com/amiga2/aurora0/10ae.htm



from what i understand the light is channeled to the needles from three bulbs in the lower part of the cluster. i replaced all of the bulbs in my cluster and i'm still not getting any light to the needles. they are extremely dim.
