Intake Cone Mod on a N-A?
03-28-06, 10:42 AM
#3
Law Breaker
Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes
on
0 Posts
if it is an S4, you'll need AFM adapter to use a cone filter, and for the air pump, go to a local auto parts place a get one of the small K&N breather filters and put it on the intake tube.
03-28-06, 10:49 AM
#4
^^^ yeah, what they said.
Are you making it a true cold air intake(cold air box or fender well) or just slapping a cone filter on it? Because just putting a cone filter on will lose horsepower.
Are you making it a true cold air intake(cold air box or fender well) or just slapping a cone filter on it? Because just putting a cone filter on will lose horsepower.
03-28-06, 10:50 AM
#5
Full Member
Thread Starter
Join Date: Jun 2005
Location: Lafayette, La
Posts: 210
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 90FC
^^^ yeah, what they said.
Are you making it a true cold air intake(air box or fender well) or just slapping a cone filter on it? Because just putting a cone filter on will lose horsepower.
Are you making it a true cold air intake(air box or fender well) or just slapping a cone filter on it? Because just putting a cone filter on will lose horsepower.
I would not want to lose hp
How do i do that?
True cold air that is.
How is this on my motor life?
03-28-06, 10:56 AM
#6
Full Member
Join Date: Jun 2005
Location: Minnesota
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
http://www.fc3s.org/how_tos/engine/cold_air_box.html
Here's a great source of information upon how to create your very own cold air box!

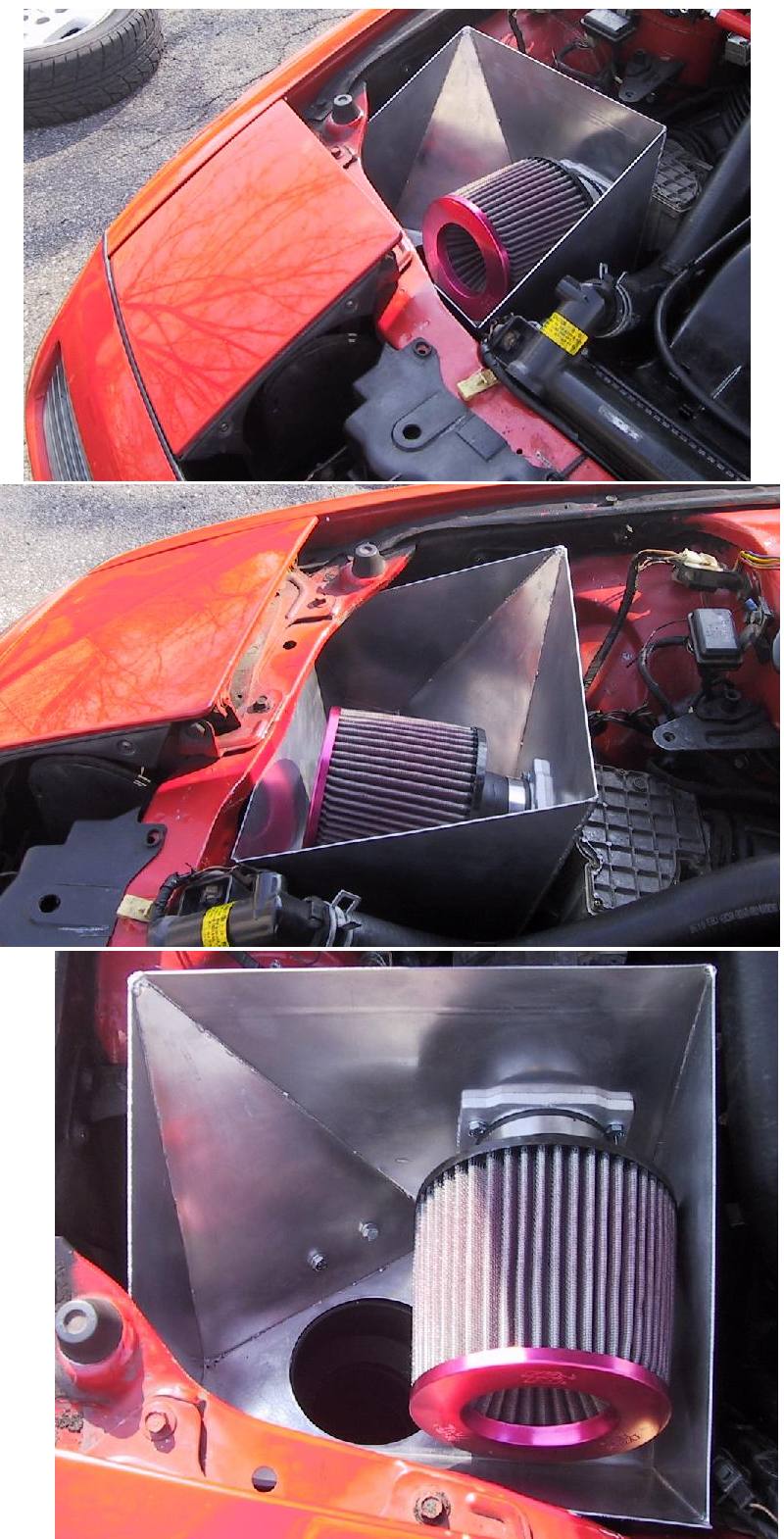

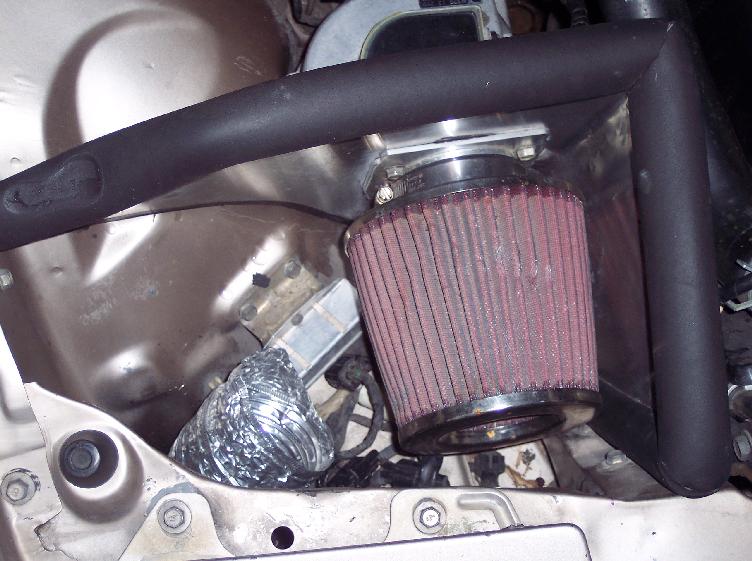

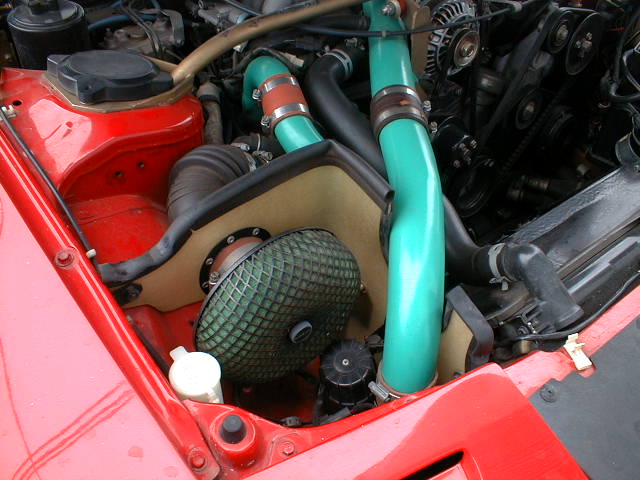

BTW here are some examples...so you get the general idea.
Here's a great source of information upon how to create your very own cold air box!
BTW here are some examples...so you get the general idea.
Last edited by JMY952; 03-28-06 at 11:01 AM.
03-28-06, 11:08 AM
#7
^^^you could do that, or you could build a fender well intake.
Heres a link, its not mine but it has a lot of pics and info on how to make it.
https://www.rx7club.com/showthread.p...old+air+intake
ps. if you have any questions feel free to ask.
Heres a link, its not mine but it has a lot of pics and info on how to make it.
https://www.rx7club.com/showthread.p...old+air+intake
ps. if you have any questions feel free to ask.
Trending Topics
03-28-06, 04:24 PM
#11
Full Member
Join Date: Sep 2003
Location: Phoenix
Posts: 187
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 90FC
^^^ yeah, what they said.
Are you making it a true cold air intake(cold air box or fender well) or just slapping a cone filter on it? Because just putting a cone filter on will lose horsepower.
Are you making it a true cold air intake(cold air box or fender well) or just slapping a cone filter on it? Because just putting a cone filter on will lose horsepower.
03-28-06, 04:33 PM
#12
Former Moderator. RIP Icemark.
Originally Posted by blackangst
How do you figure?
With just a cone filter and no cold air box, you loose about 5 HP over the stock air box due to the inceased air temp and loss of air density of the air being sucked in.
Couple of threads already on this with actual dyno sheets posted.
03-28-06, 04:43 PM
#14
Former Moderator. RIP Icemark.
Originally Posted by blackangst
Interesting.
Most people think that they are getting more HP when using a cone, simply because the motor sounds louder, growlling like it is making more HP.
But on the Tacoma using the stock air box with the deck plate mod, or relocating the Cone into the fender cavity, actually net'd about 5 RWHP more than just the stock air box.
Our cars are no different (except I think the deck plate mod wouldn't work on our air boxes, just because of the underhood heat issues).
Last edited by Icemark; 03-28-06 at 04:47 PM.
03-28-06, 11:53 PM
#15
Insert witty comment here
Join Date: Oct 2005
Location: Richmond/San Francisco/ Bay Area, Ca
Posts: 474
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Icemark
Dyno and real world proven on FCs.
With just a cone filter and no cold air box, you loose about 5 HP over the stock air box due to the inceased air temp and loss of air density of the air being sucked in.
Couple of threads already on this with actual dyno sheets posted.
With just a cone filter and no cold air box, you loose about 5 HP over the stock air box due to the inceased air temp and loss of air density of the air being sucked in.
Couple of threads already on this with actual dyno sheets posted.
03-29-06, 01:12 PM
#16
Full Member
Thread Starter
Join Date: Jun 2005
Location: Lafayette, La
Posts: 210
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by JMY952
http://www.fc3s.org/how_tos/engine/cold_air_box.html
Here's a great source of information upon how to create your very own cold air box!
BTW here are some examples...so you get the general idea.
Here's a great source of information upon how to create your very own cold air box!
BTW here are some examples...so you get the general idea.
The s4 link is broken.
Is it basically the same build?
Any ideas?
03-31-06, 05:07 PM
#17
Full Member
Join Date: Jun 2005
Location: Minnesota
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
I need a preview before buying. 90FC, considering you have done this mod before, will this intake on ebay work? Prelude 92-96 CAI
I will replace the filter with either K&N or Apexi.
I will replace the filter with either K&N or Apexi.
03-31-06, 09:08 PM
#18
Full Member
Join Date: Jun 2005
Location: Minnesota
Posts: 226
Likes: 0
Received 0 Likes
on
0 Posts
04-12-06, 08:54 PM
#20
Junior Member
Join Date: Apr 2006
Location: Northern VA
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts
What do you all think of this K&N performance intake? http://www.crutchfield.com/S-MobmVlM...5005&s=0&cc=01 from what ive read, it would lead to hp loss, but with a cold air box, would you have a gain?
