well tomorrow im tearing into my ecu to install my safc 2 ... i do have the instruction manual for both the install and set up .. but i was wondering if any of you guys could offer tips on what to watch out for that say the manual doesnt say ... and for referance my car is an s4 na so yeah any help would be great .. thnx in advance
brian



Allow me to nicely point you towards another section of this forum.

https://www.rx7club.com/super-afc-123/



Double check the wires you are going to cut or strip. Sometimes very simple things can cause unimaginable stress. Good luck.



• APEXi S-AFCII •

- Not a writeup or some sort, just fun for me. (Initialize the S-AFCII and follow the rest of the instructions found on 1300cc)
- Fun day with the FC3s ECU!
- Problems with Narrow TPS
- Wired to Map Sensor for throttle reading
- Connections were soldered
- Source: 1300CC
- SonicRat
- NzConvertible
- sa01@teamfc3s
- X-JaVeN-X

•VIDEO 1


•VIDEO 2



PHOTOS:

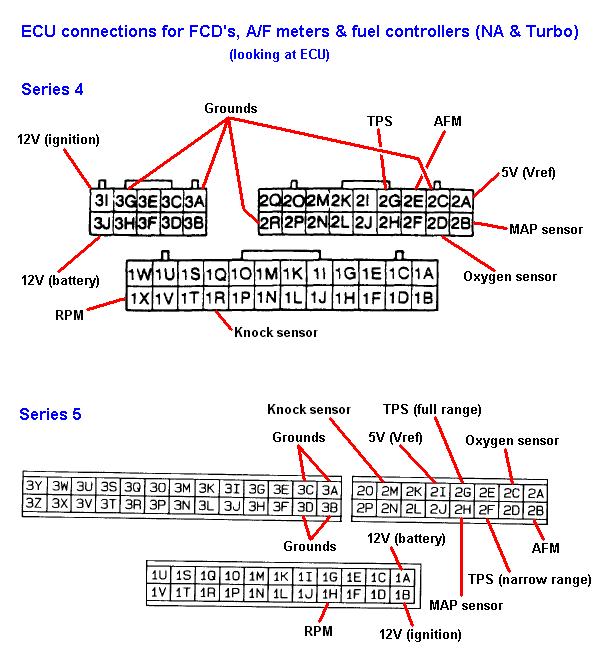

Credit to NZconvertable for this diagram.

Also follow the writeup at www.1300cc.com
