injector resistors? I need PICS!
i have a 87' TII and i need to find out what impedence of injectors i have. i have heard that early cars have low impednece injectors and that it has resistors on the left front wheel well (facing the car from the front while the hood it open) inside the engine bay. i dont want to trear it apart, test the injectors, and then have to wait for injectors to come.
thanks for the help in advance.
thanks for the help in advance.
#2
Full Member
iTrader: (4)
Join Date: Mar 2007
Location: Tx
Posts: 189
Likes: 0
Received 0 Likes
on
0 Posts
Here is some info directly out of the FAQ's
Year Engine Plug Size Colour Part #
84-85 13B NA, low square center, 680cc, orange, 195500-0900
86-87 13B NA, low square center, 460cc, red, 195500-1350
86-87 13B Turbo, low square center, 550cc, tan, 195500-1370
88 13B NA, high square offset, 460cc, purple, 195500-1350
88 13B Turbo, high square offset, 550cc, purple, 195500-1370
89-91 13B NA, high oval center, 460cc, red, 195500-2010
89-91 13B Turbo, high oval center, 550cc, purple, 195500-2020
If it's an 87 T2 then they are low imp and their plug is square with a notch directly in the center of the plug.

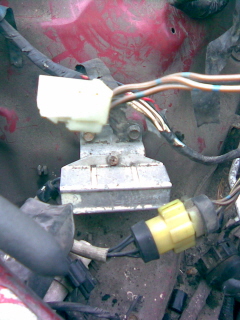

Here is a pic of the resistor as well.
Mike
Year Engine Plug Size Colour Part #
84-85 13B NA, low square center, 680cc, orange, 195500-0900
86-87 13B NA, low square center, 460cc, red, 195500-1350
86-87 13B Turbo, low square center, 550cc, tan, 195500-1370
88 13B NA, high square offset, 460cc, purple, 195500-1350
88 13B Turbo, high square offset, 550cc, purple, 195500-1370
89-91 13B NA, high oval center, 460cc, red, 195500-2010
89-91 13B Turbo, high oval center, 550cc, purple, 195500-2020
If it's an 87 T2 then they are low imp and their plug is square with a notch directly in the center of the plug.
Here is a pic of the resistor as well.
Mike
Last edited by BushyTea; 03-19-07 at 07:09 PM.
