Injector connectors

Anyone have a diagram for the S4 87.5 Tii emission harness? The haynes manual had different colors for the fuel injectors and the harness doesn't have the resistor.
Reply
Old Jun 27, 2005 | 01:59 PM
  #2
Houstonderk's Avatar
Thread Starter
My girl
Tenured Member 15 Years
iTrader: (3)

Joined: Apr 2004
Posts: 2,173
Likes: 3
From: Andrews AFB, MD
How about the two that goes with the water thermo sensor on the back of the water pump? Are those the primary or secondary?
Reply
Old Jun 27, 2005 | 02:13 PM
  #3
WonkoTheSane's Avatar
Green Flameless
Tenured Member 15 Years
iTrader: (2)

Joined: Feb 2002
Posts: 2,242
Likes: 0
From: North Central PA
okay, to answer your first question (a bit). As you're already aware, the S4 injectors are Low Impedance, which needs those resistors. The place that the "resisitors" hang out, in is in the distrobution block that goes to the injectors. On the passanger side of the engine bay, up along the front (near the coolant reseviour), there's a silver-block, with a 5 wire connector. One of the wires goes to power, the other 4 go to the injectors. that block is the reisistor.. If you have that block, then you can just use that.. if you don't have it (most likely), then you need to just put the resistor in-line, i believe. but a search should clear that up.
Reply
Old Jun 27, 2005 | 02:14 PM
  #4
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
On a high impedence system, one wire on EACH plug will be Black/Yellow. The 88 manual is online for a download. Download the Wiring and look at the EGI Emission Control System. Save the download to your computer.

FRONT PRIMARY: BLACK/YELLOW and a light green wire.

FRONT SECONDARY: Black/Yellow and a light green/white wire

Rear Primary: Black/Yellow and a light green/black wire

Rear Secondary: Black/yellow and a light green/red wire.

Last edited by HAILERS; Jun 27, 2005 at 02:19 PM.
Reply
Old Jun 27, 2005 | 02:16 PM
  #5
Houstonderk's Avatar
Thread Starter
My girl
Tenured Member 15 Years
iTrader: (3)

Joined: Apr 2004
Posts: 2,173
Likes: 3
From: Andrews AFB, MD
Well i am running high impendence injectors with an FD pump so i got the Tii harness without the resistor pack.
Reply
Old Jun 27, 2005 | 02:21 PM
  #6
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
With the key to ON, each black/yellow wire should have 12vdc.
Reply
Old Jun 27, 2005 | 03:01 PM
  #7
Houstonderk's Avatar
Thread Starter
My girl
Tenured Member 15 Years
iTrader: (3)

Joined: Apr 2004
Posts: 2,173
Likes: 3
From: Andrews AFB, MD
Thanks Hailers, thats the color codes i needed..
Reply
Old Jun 27, 2005 | 03:22 PM
  #8
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Originally Posted by Houstonderk
Thanks Hailers, thats the color codes i needed..
Primaries on the short rail.......secondaries on the longer rail up above the short rail.

If you don't get 12v on the black/yellow wires, make sure the key is to ON and the ENGINE fuse is installed plus the Inj EGI fuse and Inj Comp fuse both in the engnie bay are good.

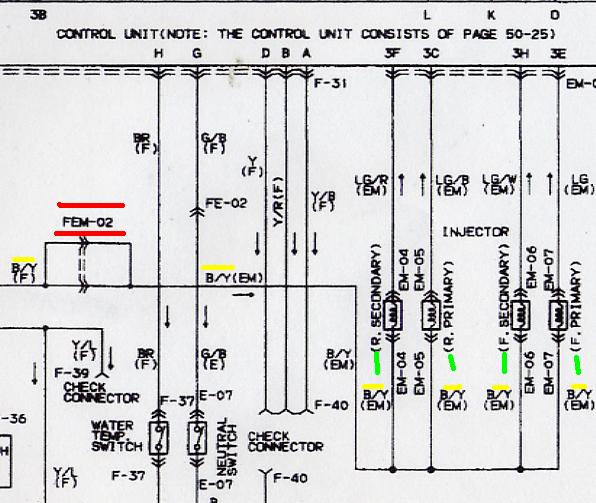

Go to this url and you'll see a high impedence wiring for the injectors. https://www.rx7club.com/attachment.p...hmentid=106394

This is a jpg of the low impedence setup with the solelnoid resistor: https://www.rx7club.com/attachment.p...hmentid=106364

Last edited by HAILERS; Jun 27, 2005 at 03:29 PM.
Reply
