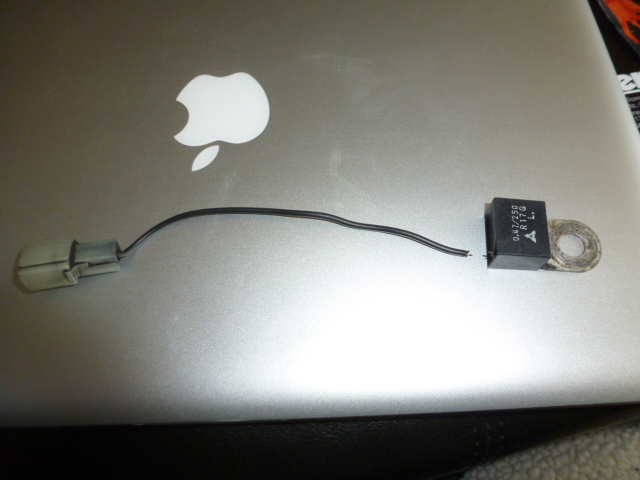

I was redoing my Crank angle sensor wire (Replacing it) on the charge harness and I broke this part? Now car doesn't appear to start. Could be my new IGN-1A coils and adaptronic setup (Car started right away before this change)
What is this part and what is its function?
What is this part and what is its function?
#2
MECP Certified Installer
That is the condensor for the trailing coils. That shouldn't keep the car from starting as far as I know.
(The oil pressure gauge has one of these as well, but the plug is different.)
(The oil pressure gauge has one of these as well, but the plug is different.)
#3
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
make sure your settings are right to start up the car Ian.
By the way,do not alter settings with the Coils attached to the harness as you CAN fry the Coils. (did it and got the T shirt..and had to get another Freakin coil!..smoked the bugger!)
..and if you need another one of those parts ya busted,I remember seeing one..somewhere...lol!
By the way,do not alter settings with the Coils attached to the harness as you CAN fry the Coils. (did it and got the T shirt..and had to get another Freakin coil!..smoked the bugger!)
..and if you need another one of those parts ya busted,I remember seeing one..somewhere...lol!
#4
Thanks guys. I hope I don't burn out a brand new AEM coil
So while doing the dishes it dawned on me that i didn't attached the ground wire for the SBgarage harness for the coils. So today after babysitting (Wife says its not babysitting when your looking after your own kids!) gonna hook it up and tonight gonna try again.
So while doing the dishes it dawned on me that i didn't attached the ground wire for the SBgarage harness for the coils. So today after babysitting (Wife says its not babysitting when your looking after your own kids!) gonna hook it up and tonight gonna try again.
#14
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,780
Received 2,565 Likes
on
1,824 Posts

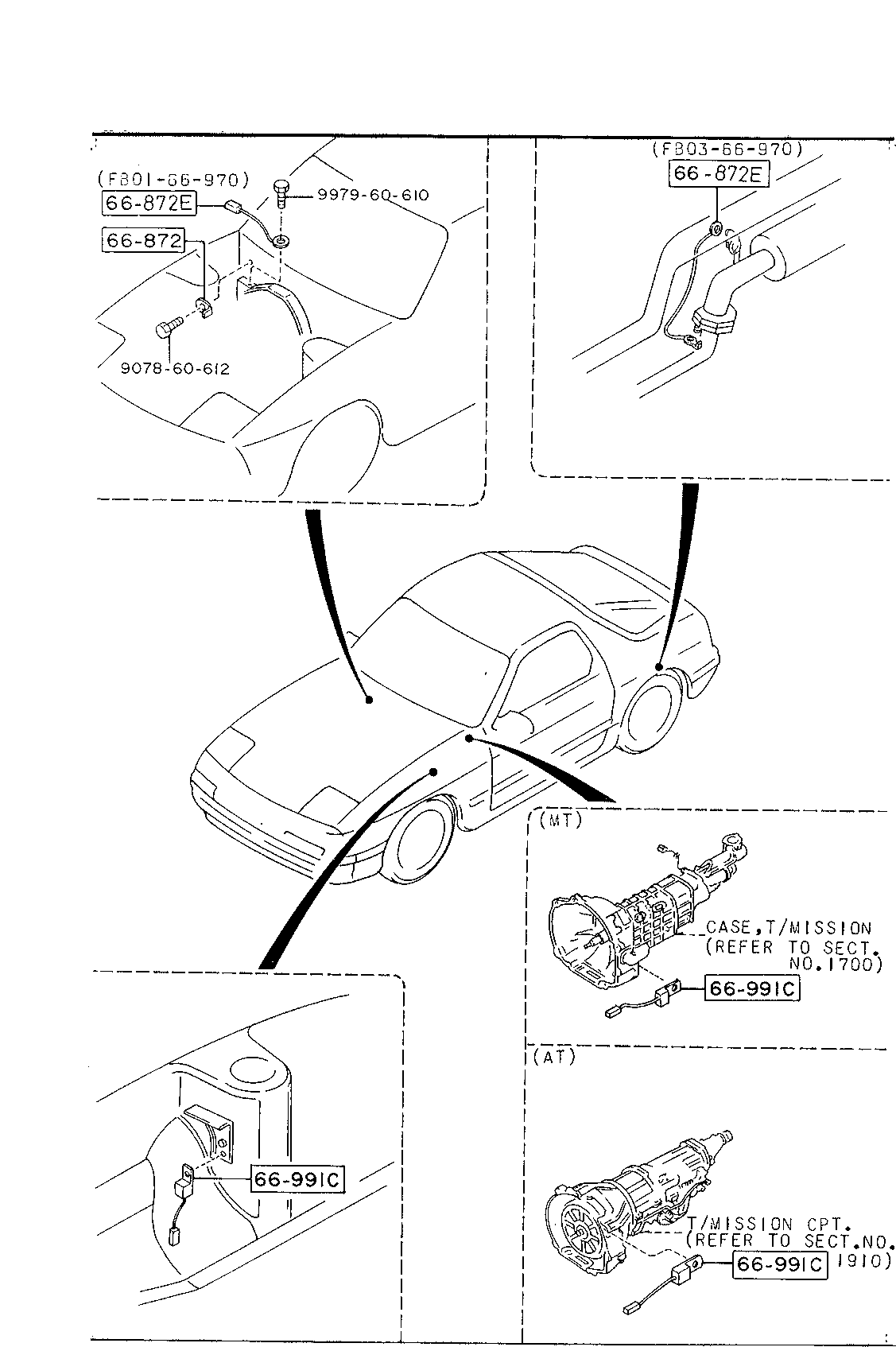

here is the page from the parts catalog. semi helpful.
FB01-66-991B is the part number if it helps
FB01-66-991B is the part number if it helps
#16
Rotary Enthusiast
Join Date: Feb 2005
Location: Bossier City, LA
Posts: 984
Likes: 0
Received 0 Likes
on
0 Posts
This part was possibly one of the worst designed parts on the car. They break VERY easily.
I just pulled mine off the clutch slave cylinder last night and it's hanging on by a strand.
Thanks for the part#
I just pulled mine off the clutch slave cylinder last night and it's hanging on by a strand.
Thanks for the part#
#17
MECP Certified Installer
Hell, Mine are both intact but I have been contemplating removing the one for the oil pressure sensor so that the gauge responds quicker.
#19
Rotary Enthusiast
Join Date: Feb 2005
Location: Bossier City, LA
Posts: 984
Likes: 0
Received 0 Likes
on
0 Posts
I noticed my second one under the Trailing coil when I removed it last night. It looked to be intact.
