I need Trailing igniter wiring help!
#1
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
I need Trailing igniter wiring help!
So my tach wasn't working so I hooked up a aftermarket tach to that little female connecter that is the suppose to be the tach diagnostic port and I still get nothing. So Then I pulled off both the wires going to my spark plugs on the trailing side and my car didn't run any differently at idle. Shouldn't it?
So before I go blow money on new igniters I want to check the wiring. Does anybody have a good resource on what voltage or ohms each plug should have and what should be pluged into what?
I can take pics if that would help...
Thanks in advance!
Dan
So before I go blow money on new igniters I want to check the wiring. Does anybody have a good resource on what voltage or ohms each plug should have and what should be pluged into what?
I can take pics if that would help...
Thanks in advance!
Dan
#2
Junior Member
Join Date: Jul 2008
Location: Fairly Reliable Falls, Montana
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Spark or no spark
Hi
When you pulled the plug wires did you check to see if they had spark. I think that would be the easy check first. If no spark then it would be time to dig deeper.
Did you try hooking the tach directly to your coil to see if that worked? Just some thoughts
Loren
When you pulled the plug wires did you check to see if they had spark. I think that would be the easy check first. If no spark then it would be time to dig deeper.
Did you try hooking the tach directly to your coil to see if that worked? Just some thoughts
Loren
#3
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
How would I hook the tach directly to the coil without frying it?
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
You download the factory service manual from this site. See FAQ thread.
You just download the Fuel and Emissions section. You look at page 4A-30 and the next two pages. On those pages is the input/output of the trail coil assy to/from the ECU. You look at the pinout of the ECU plug, looking at the wire side of the ECU plug.
No tach equals no spark at the trail coils assy. The trail coil assy will cutoff if the ECU sees certain conditions. Like a very low battery. I forget what else.
Trail coils add very little to the performance of the engine. Pull them off at idle and you won't notice a thing has happened. Effects starting little to nothing at all. Helps clean up emissions is it's role in life on the whole.
Make sure both elect plugs are on the coil assy. Look to see if there is batt voltage on the BLACK/YELLOW wire. If that is there, go to the FSM.
Check out your aftermarket tach by connecting it up the LEAD coil assy's black bullet connector, to see if it works there. Should if your car is starting up and running just off lead plugs.
You just download the Fuel and Emissions section. You look at page 4A-30 and the next two pages. On those pages is the input/output of the trail coil assy to/from the ECU. You look at the pinout of the ECU plug, looking at the wire side of the ECU plug.
No tach equals no spark at the trail coils assy. The trail coil assy will cutoff if the ECU sees certain conditions. Like a very low battery. I forget what else.
Trail coils add very little to the performance of the engine. Pull them off at idle and you won't notice a thing has happened. Effects starting little to nothing at all. Helps clean up emissions is it's role in life on the whole.
Make sure both elect plugs are on the coil assy. Look to see if there is batt voltage on the BLACK/YELLOW wire. If that is there, go to the FSM.
Check out your aftermarket tach by connecting it up the LEAD coil assy's black bullet connector, to see if it works there. Should if your car is starting up and running just off lead plugs.
#5
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
You download the factory service manual from this site. See FAQ thread.
You just download the Fuel and Emissions section. You look at page 4A-30 and the next two pages. On those pages is the input/output of the trail coil assy to/from the ECU. You look at the pinout of the ECU plug, looking at the wire side of the ECU plug.
No tach equals no spark at the trail coils assy. The trail coil assy will cutoff if the ECU sees certain conditions. Like a very low battery. I forget what else.
Trail coils add very little to the performance of the engine. Pull them off at idle and you won't notice a thing has happened. Effects starting little to nothing at all. Helps clean up emissions is it's role in life on the whole.
Make sure both elect plugs are on the coil assy. Look to see if there is batt voltage on the BLACK/YELLOW wire. If that is there, go to the FSM.
Check out your aftermarket tach by connecting it up the LEAD coil assy's black bullet connector, to see if it works there. Should if your car is starting up and running just off lead plugs.
You just download the Fuel and Emissions section. You look at page 4A-30 and the next two pages. On those pages is the input/output of the trail coil assy to/from the ECU. You look at the pinout of the ECU plug, looking at the wire side of the ECU plug.
No tach equals no spark at the trail coils assy. The trail coil assy will cutoff if the ECU sees certain conditions. Like a very low battery. I forget what else.
Trail coils add very little to the performance of the engine. Pull them off at idle and you won't notice a thing has happened. Effects starting little to nothing at all. Helps clean up emissions is it's role in life on the whole.
Make sure both elect plugs are on the coil assy. Look to see if there is batt voltage on the BLACK/YELLOW wire. If that is there, go to the FSM.
Check out your aftermarket tach by connecting it up the LEAD coil assy's black bullet connector, to see if it works there. Should if your car is starting up and running just off lead plugs.
Awesome!!! Thanks you for that very very useful info. For some reason I was looking in the "Engine Electrical" Section... Silly me...
Darn though... I was hoping that was why my engine wasn't running as smooth as I would like it to.
#6
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
I tried that and I still get nothing. Can put a jumper wire between the black bullet connector and the blue/yellow one to make the dash tach work?
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Write back on how that worked out. I'm even tempted to try that out on my 86na (hardly ever driven car), just to see if that works or not.
Last edited by HAILERS; 09-18-08 at 07:31 AM.
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I just went out to the 86na. I pulled the two white elect plugs off the trail coil assy for safety reasons. Then jumpered the two black bullet connectors. Tach worked just fine.
I've had the tach/trail coil fail on me only twice in the past. Both times was after having to jumper the battery. I remember noticing the lack of tach after I'd been driving a couple of miles. So instinct somehow told me to turn the engine/key off while driving and then key back ON and dumped the clutch. Engine started and tach then worked. I attributed the lack of tack due to the ECU killing the trail signal because of a low battery. It's written somewhere that the ECU can do this....kill the trail coil assy only. Training Manual I think, that is online somewhere.
I've had the tach/trail coil fail on me only twice in the past. Both times was after having to jumper the battery. I remember noticing the lack of tach after I'd been driving a couple of miles. So instinct somehow told me to turn the engine/key off while driving and then key back ON and dumped the clutch. Engine started and tach then worked. I attributed the lack of tack due to the ECU killing the trail signal because of a low battery. It's written somewhere that the ECU can do this....kill the trail coil assy only. Training Manual I think, that is online somewhere.
#9
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Never crossed my mind to do that. It seems it could work. I don't see it harming anything. Tell you what, I'd remove the elect plugs from the Trail coil assy prior to doing so. Not the sparkplug wires, but the electrical plugs. Then jumper a wire b/t bullet connectors.
Write back on how that worked out. I'm even tempted to try that out on my 86na (hardly ever driven car), just to see if that works or not.
Write back on how that worked out. I'm even tempted to try that out on my 86na (hardly ever driven car), just to see if that works or not.
#11
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
#12
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Sometime I'd fix the problem with the trail coil assy. The wires from the coil assy to the large plug on the ECU have no connections inbetween. Usually you can get a trail coil assy from the wreckers for less than twenty bucks. I'd check the continuity of the wires b/t the coil assy and the ECU large plug prior to buying a used one. OR check the wires with a voltmeter by backprobing the wires at the ECU plug while the engine is idling and compare it with the jpgs I attached.
Also... someone (aka: not me) has wired the radiator fan to run whenever the key is on so I wonder if that is putting a load on the battery and then the ecu thinks the battery is low so it doesn't power the Trailing igniter? Could I just put a battery charger on the battery and then start it to keep the ECU from turning off the Trailing Igniter?
#13
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Never crossed my mind to do that. It seems it could work. I don't see it harming anything. Tell you what, I'd remove the elect plugs from the Trail coil assy prior to doing so. Not the sparkplug wires, but the electrical plugs. Then jumper a wire b/t bullet connectors.
Write back on how that worked out. I'm even tempted to try that out on my 86na (hardly ever driven car), just to see if that works or not.
Write back on how that worked out. I'm even tempted to try that out on my 86na (hardly ever driven car), just to see if that works or not.

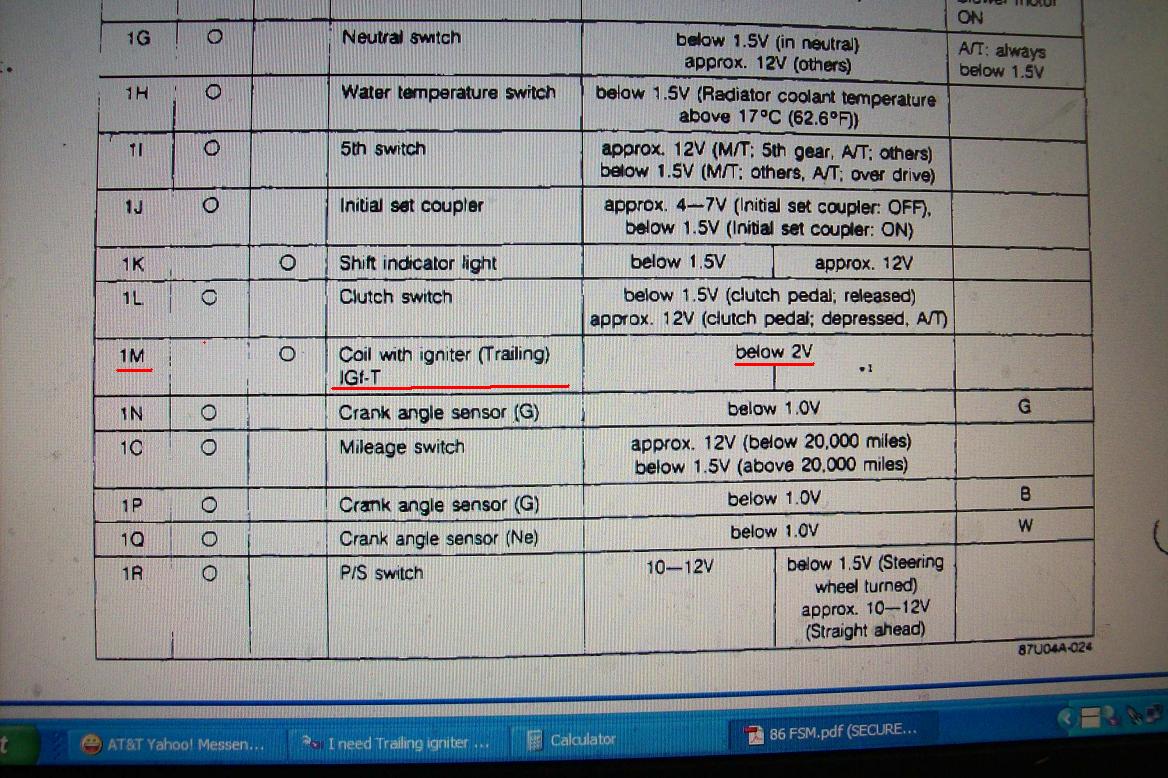

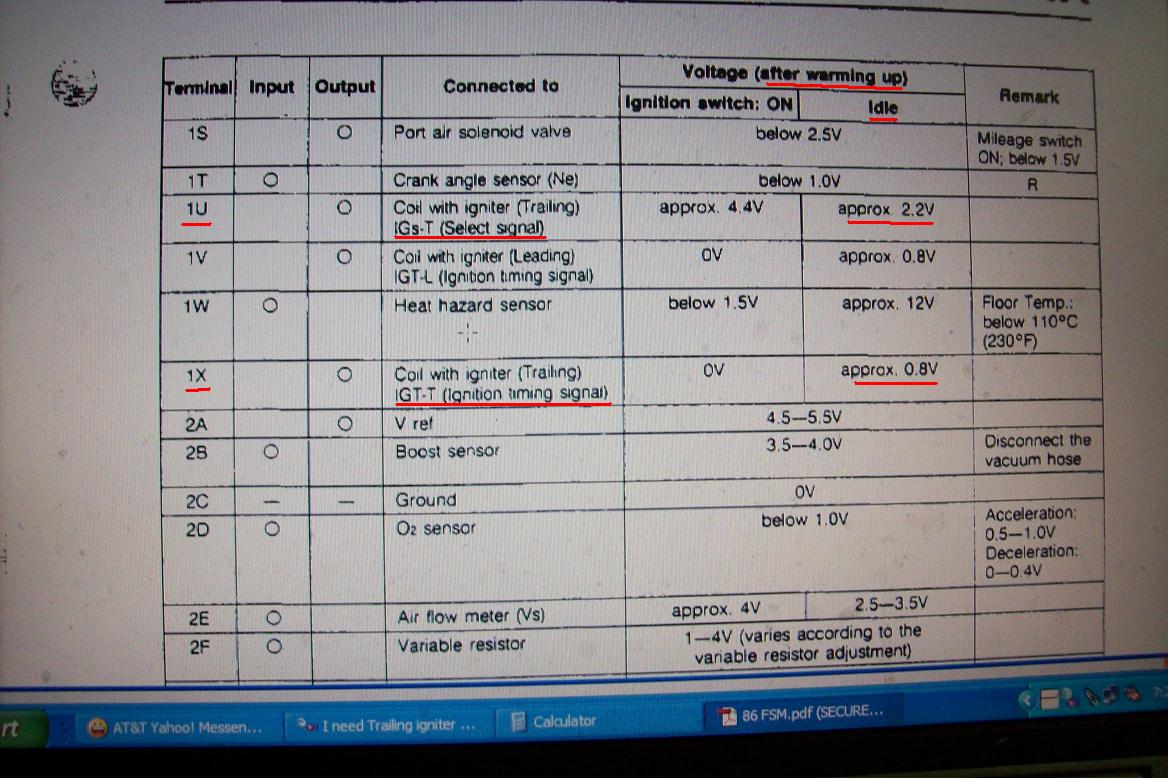

Try this... Hit that button on your keyboard that says "PrtScn". Hold down the windows key and hit "R". Then type "mspaint" and hit the Enter key. Then hold down "Ctrl" and hit "V". Then edit it or save it or do what you want with it. Try it, it might save you some time.
Thanks again for your help.
Dan
#14
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Does your stock tach work if you get a piece of ordinary wire and jumper the two bullet connectors? Like I did in post #8 above???
I never had a aftermarket tach. I just use a Fluke 88 with a clamp adaptor that goes over a plug wire or use the Fluke connected to the bullet connector and put it on RPM's.
What's the name of the aftermarket tach?
By the way, the stock coil assy's ignitor gets its ground from the base of the coil assy unit mating with the chassis. If it sits on a piece of wood/rubber/you name it, the coil assy won't work. Then again, of the three nuts that hold it to the chassis, only one could do the job.
You could start the car cold and have the elect fan disconnected, just to find out if that is causing a problem. You'd find out before the engine gets too hot.
I never had a aftermarket tach. I just use a Fluke 88 with a clamp adaptor that goes over a plug wire or use the Fluke connected to the bullet connector and put it on RPM's.
What's the name of the aftermarket tach?
By the way, the stock coil assy's ignitor gets its ground from the base of the coil assy unit mating with the chassis. If it sits on a piece of wood/rubber/you name it, the coil assy won't work. Then again, of the three nuts that hold it to the chassis, only one could do the job.
You could start the car cold and have the elect fan disconnected, just to find out if that is causing a problem. You'd find out before the engine gets too hot.
Last edited by HAILERS; 09-18-08 at 08:36 PM.
#15
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
Does your stock tach work if you get a piece of ordinary wire and jumper the two bullet connectors? Like I did in post #8 above???
I never had a aftermarket tach. I just use a Fluke 88 with a clamp adaptor that goes over a plug wire or use the Fluke connected to the bullet connector and put it on RPM's.
What's the name of the aftermarket tach?
You could start the car cold and have the elect fan disconnected, just to find out if that is causing a problem. You'd find out before the engine gets too hot.
I never had a aftermarket tach. I just use a Fluke 88 with a clamp adaptor that goes over a plug wire or use the Fluke connected to the bullet connector and put it on RPM's.
What's the name of the aftermarket tach?
You could start the car cold and have the elect fan disconnected, just to find out if that is causing a problem. You'd find out before the engine gets too hot.
I tried unpluging the main harness from the trailing igniter and jumpered the two tach connectors and it did make my tach work.
I tried starting the car with the fan unpluged and the trailing igniter still didn't work.
#16
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Hailers I appreciate all the help but what is up with the digital pictures of your monitor?
Try this... Hit that button on your keyboard that says "PrtScn". Hold down the windows key and hit "R". Then type "mspaint" and hit the Enter key. Then hold down "Ctrl" and hit "V". Then edit it or save it or do what you want with it. Try it, it might save you some time.
Thanks again for your help.
Dan
Try this... Hit that button on your keyboard that says "PrtScn". Hold down the windows key and hit "R". Then type "mspaint" and hit the Enter key. Then hold down "Ctrl" and hit "V". Then edit it or save it or do what you want with it. Try it, it might save you some time.
Thanks again for your help.
Dan
That was very, very helpful. Thank you for the information. I was clueless about that.
#17
Full Member
Thread Starter
Join Date: Aug 2008
Location: GF Montana
Posts: 68
Likes: 0
Received 0 Likes
on
0 Posts
So I bought a trailing coil and igniter off ebay and hooked it up. Now the tach works but when the motor is under a load it sounds like it's only running on one rotor. Almost like it's grounding out somehow. If I unplug the two connectors for it then it runs fine again. What would cause that?
