i was doing the tb mod and these little spring things came loose...how do i reattach them? how many times do they wrap around that little shaft thing? when i pull on the throttle cable mount nothing happens because of them. its a s4 t2 throttle body BTW...



the just go around maybe 3/4 ths of a turn. you cant turn them too many times.



but where does each end of the spring attach? here's another pic

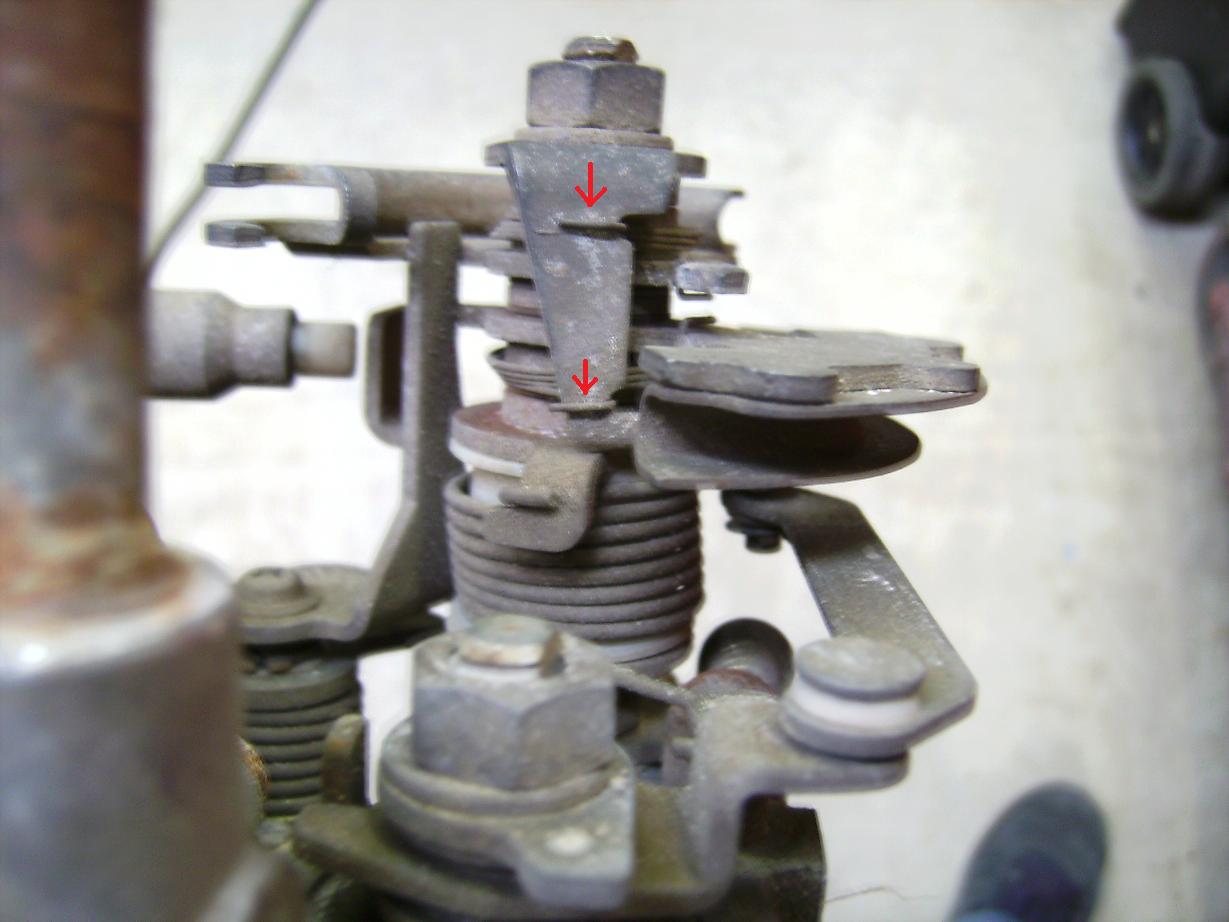

Here's a shot of the springs on my extra S4 NA throttle body. From your second picture, it looks like you can just hook them on the metal piece on the right. Just like on the NA TB.

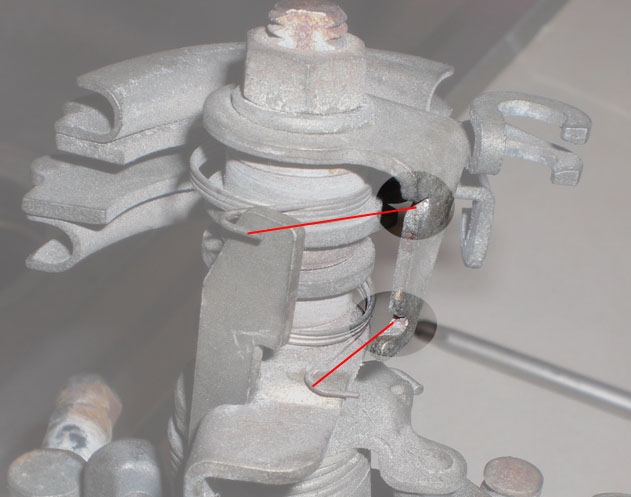

How about this?



thats it right there.



this is why so many people dont **** around with the tb lol ... i did mine and forgot t ot take ap icture and it took me about 8 horsu to figure it out lol



where do the other ends connect?

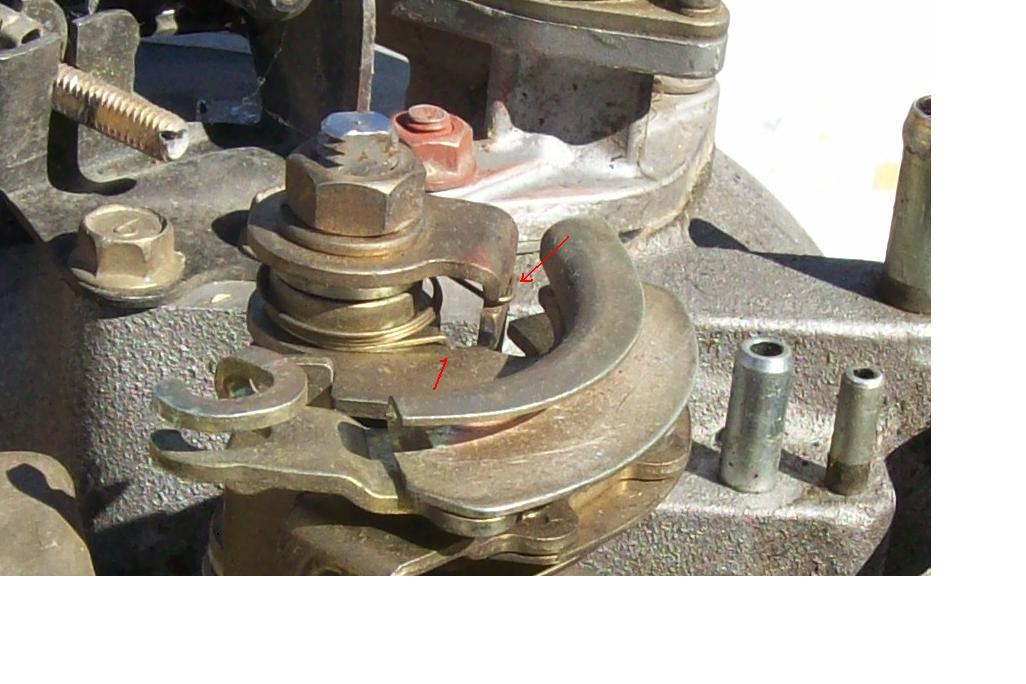

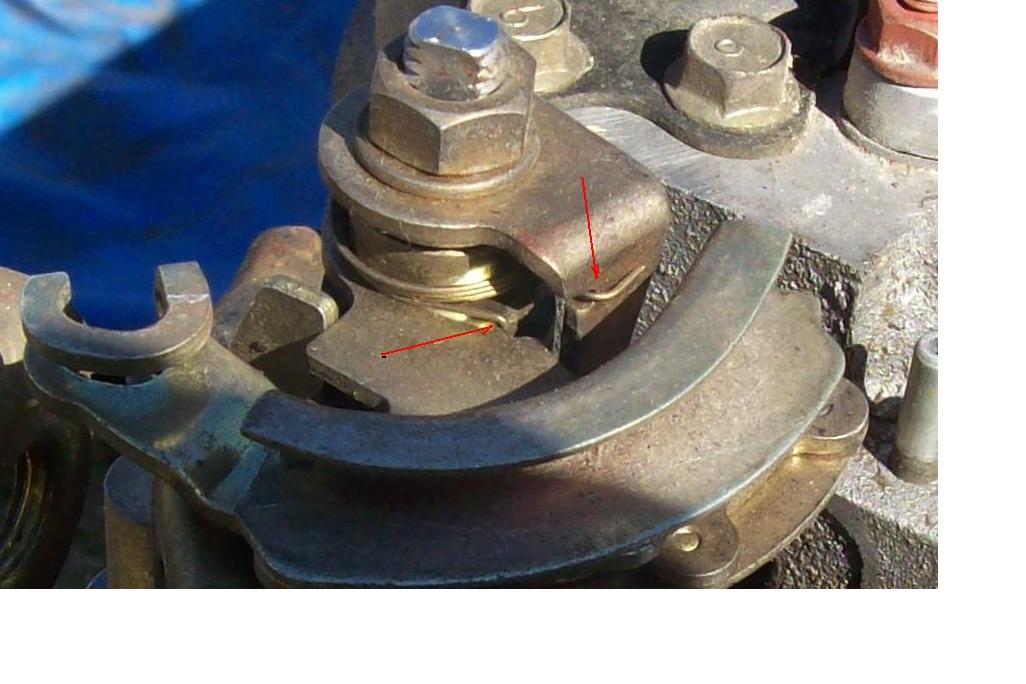

Here and here

I think your going to have to *wind it up* so it has tension all the time.



thanks hailers
