how to identify engine?
just bought a 6-port engine and i wanna know what year it is? how can i find out
it had power stearing,emission controll(air pump) and was automatic
i need help so i can buy the correct parts thanx
it had power stearing,emission controll(air pump) and was automatic
i need help so i can buy the correct parts thanx
Rotary Enthusiast
Joined: Dec 2001
Posts: 1,350
Likes: 0
From: not in winterpeg anymore
if it is from a gsl-se it would have motor munts on the front cover and none on the oil pan. If it is s4 it has motor mounts on the bottom of the engine. S4 rear iron inspection cover has 2 bolt holes one on each side, s5 only has 1 bolt hole on the inspection cover. thats the external differences.
The spark plug holes are different from s5 to s5 as well
The spark plug holes are different from s5 to s5 as well
Junior Member
Joined: Dec 2006
Posts: 9
Likes: 0
From: oklahoma

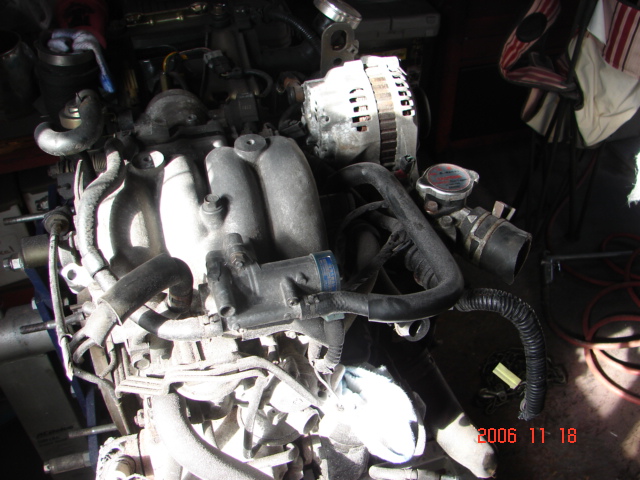

I've read all the threads and am still confused .Isent a picture to atkins rotary and they said it was a 89 -92 turbo. The intake gasket looks like a 86-88 model. The thermostat housing has a filler cap on it and I haven't found an egr valve. the rear iron inspection plate only has one bolt hole in it.
Trending Topics
Originally Posted by Rocking Rotary
well it has s5 housing. the s4s didn't have a knock sensor hole.
The pics included above are for a S4 Turbo.
It has a narrow range TPS. S5's use a dual widerange TPS.
It also has the S4 twinscroll turbo.
Oh yeah and like said above. The knock sensor is on the front side of the oil fill tube(you can barely see it in your pic on the top middle)
Oh and a nother dead give away is the mechanical oil metering pump on the passenger side of the front cover.
It has a narrow range TPS. S5's use a dual widerange TPS.
It also has the S4 twinscroll turbo.
Oh yeah and like said above. The knock sensor is on the front side of the oil fill tube(you can barely see it in your pic on the top middle)
Oh and a nother dead give away is the mechanical oil metering pump on the passenger side of the front cover.
Nurse I need 1300cc's NOW
Joined: Dec 2003
Posts: 1,261
Likes: 1
From: Hartford
Originally Posted by Digi7ech
The pics included above are for a S4 Turbo.
It has a narrow range TPS. S5's use a dual widerange TPS.
It also has the S4 twinscroll turbo.
Oh yeah and like said above. The knock sensor on S5's is above the spark plugs while S4's have it on the front side of the oil fill tube(you can barely see it in your pic on the top middle)
Oh and a nother dead give away is the mechanical oil metering pump on the passenger side of the front cover.
It has a narrow range TPS. S5's use a dual widerange TPS.
It also has the S4 twinscroll turbo.
Oh yeah and like said above. The knock sensor on S5's is above the spark plugs while S4's have it on the front side of the oil fill tube(you can barely see it in your pic on the top middle)
Oh and a nother dead give away is the mechanical oil metering pump on the passenger side of the front cover.
uh, how about the metal filler neck? that'll tell you too. I dont know about the inspection panel tho... on both the 88 NA and 88 turbo engines I have, the inspection panel has one bolt. I dont have the full history of either engine, so concievably stuff could have been switched on both, but it doesnt seem to be that way.
