how hard is it to install a boost gauge on a t2?
09-22-02, 11:45 PM
#1
Full Member
Thread Starter
Join Date: May 2002
Location: Prince George, BC, Canada
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
how hard is it to install a boost gauge on a t2?
im thinking of getting a electric boost gauge for my car and i wanted to install it my self, what is the proceedur of doing this? and with electric boost gauge is the most easy to install and looks closest to the stock gauges?
09-22-02, 11:49 PM
#2
Queer
Join Date: Mar 2001
Location: Formerly in the Ass end of the pacific.
Posts: 742
Likes: 0
Received 0 Likes
on
0 Posts
I don't have a DYI on it but it is really quite simple. You will need to find an illumination wire and a power wire, maybe from the radio, and then find a good place to mount it. Most people put it on the pillar by the window. Then all you do is buy a "T" for a 4mm hose from the store and then cut the line going to the pressure sensor on the pass side shock tower and then stick the "T" in there and hook up the boost gauge hose to it.
09-23-02, 12:03 AM
#3
Former Moderator. RIP Icemark.
electric boost gauges are very expensive comparied to mechanical, you may have better luck using a mechanical and following Cosmo's suggestion for installation.
09-23-02, 12:23 AM
#4
Full Member
Thread Starter
Join Date: May 2002
Location: Prince George, BC, Canada
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts
i herd that mechanicle boost gauges blow up and shoot oul every were, is this true? and if this is not true or i can find a way to avoid it then is there a website that explains it better and has pics?
09-23-02, 12:53 AM
#6
It's a Hammer
Join Date: Jul 2002
Location: Richland WA
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
Connecting a boot gauge is simple. Just T it off the small rubber hose that goes to your boost sensor. The boost sensor is the small black box mounted on the front passenger side wheel well in the engine bay. Ive never heard of boost gauges blowing up.
09-23-02, 12:55 AM
#7
Game of Death
Join Date: Apr 2002
Location: Chicago
Posts: 1,750
Likes: 0
Received 0 Likes
on
0 Posts
Boost gauge was easy. I dunno how much it cost, but I helped a friend install one. I was easy as drilling a hole in the firewall, hooking up the hose, putting it through the firewall, soldering some wires, and sticking the new pillar cover on. Looks badass too.
Trending Topics
09-23-02, 02:36 PM
#9
Full Member
Thread Starter
Join Date: May 2002
Location: Prince George, BC, Canada
Posts: 125
Likes: 0
Received 0 Likes
on
0 Posts

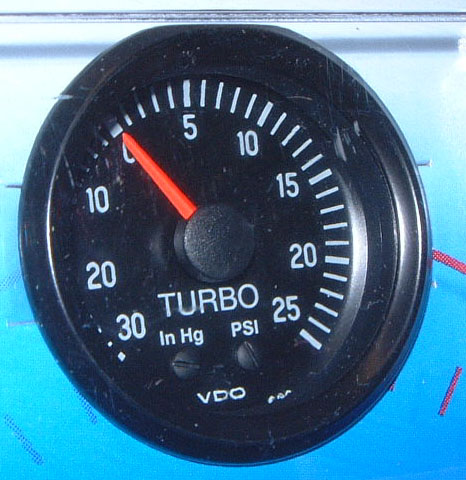

what boost gauge can i get that looks closest to the stock gauges and mesures in PSI? i would like to know for bolth electric and mechanicle
09-23-02, 08:07 PM
#10
It's a Hammer
Join Date: Jul 2002
Location: Richland WA
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
12-25-03, 03:05 PM
#12
On my A Pillar I have a string of Guages. The 1st one (bottom of the A Pillar) was tapped Into via the Cig Lighter(+Ign switched and ground). The lighting for this was tapped from the Cig Lighters Light bulb, both +&-.
From there, every successive Guage on top of the previous one was mounted and was used as a tapping Into for the Guages for direct Illumination, power, ground etc. Kinda like a piggy back.
I'm not sure I stated this correctly.
From there, every successive Guage on top of the previous one was mounted and was used as a tapping Into for the Guages for direct Illumination, power, ground etc. Kinda like a piggy back.
I'm not sure I stated this correctly.
12-25-03, 05:30 PM
#15
Full Member
Join Date: Sep 2003
Location: Bellevue
Posts: 122
Likes: 0
Received 0 Likes
on
0 Posts
ok kinda on subject...how hard is it to install a boost controller or even a turbo timer...(gonna do an install on 94 Eagle talon tsi, but this will be for future references.
12-25-03, 06:59 PM
#16
Banned. I got OWNED!!!
Join Date: Nov 2002
Location: San Jose, CA
Posts: 312
Likes: 0
Received 0 Likes
on
0 Posts
i didn't think it was hard, just follow instructions and be careful with the wiring. I did the Vaccumm hosing on the AVC-R and my buddy did the wiring into the ECU.
12-25-03, 09:42 PM
#17
Jesus is the Messiah
Haha, blowing up and leaking oil, thats an OLD OLD problem from musule cars with mechanical oil gauges!
You'd get oil all over your legs when those went bad! HA!
(I had a 66 Stang before I had the 7!)
You'd get oil all over your legs when those went bad! HA!
(I had a 66 Stang before I had the 7!)
12-25-03, 10:29 PM
#19
Senior Member
iTrader: (2)
Join Date: Sep 2002
Location: Mississippi
Posts: 287
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by harjms
ok kinda on subject...how hard is it to install a boost controller or even a turbo timer...(gonna do an install on 94 Eagle talon tsi, but this will be for future references.
ok kinda on subject...how hard is it to install a boost controller or even a turbo timer...(gonna do an install on 94 Eagle talon tsi, but this will be for future references.
-Tee the vacumm/pressure tube to a source from the intake manifold.
-Route the tube/wiring through the firewall... you don't even have to drill holes, just route it through the wiring harness boot
-Wire the backlighting to your stock gauge dimmer switch
-Find a way to mount it and hide all the wires
!
