How do you get the clutch fan/shroud off?
10-02-04, 04:54 PM
#1
Rotary Freak
Thread Starter
How do you get the clutch fan/shroud off?
I got to this point in my teardown, and I'm a bit stumped. I can't seem to get any of the bolts off of the clutch fan, and I can't remove the shroud while the clutch fan is on. Anyone done this before (I'm sure)?
10-02-04, 04:57 PM
#2
Will Work For Apex Seals
Join Date: Jan 2004
Location: Lower NY
Posts: 1,277
Likes: 0
Received 0 Likes
on
0 Posts
stick a screw driver between two nuts to lock it in place, then lean the other way with a wrench, break the bolt loose by tapping the wrench with a mallet.
10-02-04, 05:10 PM
#4
Will Work For Apex Seals
Join Date: Jan 2004
Location: Lower NY
Posts: 1,277
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by snub disphenoid
How do I get the shroud off? Seems like there's something in the way no matter what direction I go...
10-02-04, 05:19 PM
#5
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
Don't try to get the shroud off.

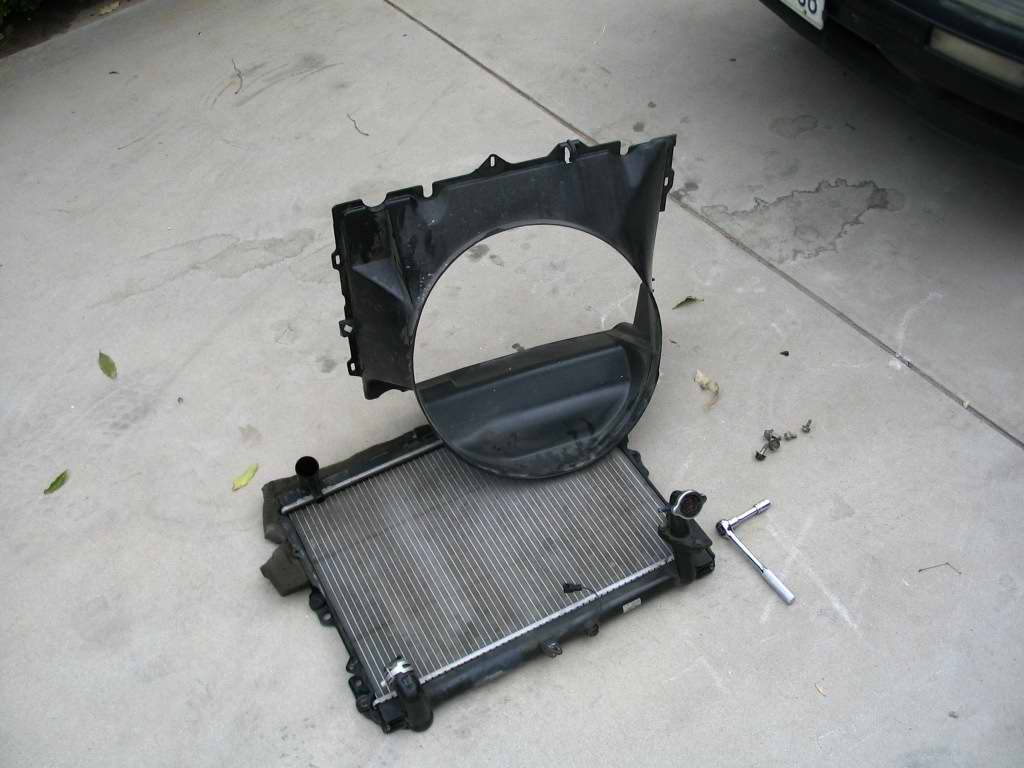

You could break your radiator neck the way I did getting it off, when you get the fan off you'll be able to pull the shroud.
Good thing that radiator had a hole in the top anyway... gee I wonder why, so brittle I pushed a little with the shroud and it crumbled. :rollleyes:
Do what he says with the screwdriver to hold the fan still... otherwise you'll regret things... make sure you don't strip those bolts... I stripped one and had to use vice grips eventually... god damn what a pain.
--Gary
You could break your radiator neck the way I did getting it off, when you get the fan off you'll be able to pull the shroud.
Good thing that radiator had a hole in the top anyway... gee I wonder why, so brittle I pushed a little with the shroud and it crumbled. :rollleyes:
Do what he says with the screwdriver to hold the fan still... otherwise you'll regret things... make sure you don't strip those bolts... I stripped one and had to use vice grips eventually... god damn what a pain.
--Gary
10-02-04, 05:51 PM
#6
Rotary Freak
Thread Starter
Well, I have to remove all of my pullies. I'm going to take out the battery and tray, see how that works. That way it looks like I can move it to the driver's side a bit and get it to clear the radiator neck.
Trending Topics
10-02-04, 06:40 PM
#9
Senior Member
Join Date: Mar 2004
Location: Victoria, BC
Posts: 350
Likes: 0
Received 0 Likes
on
0 Posts
I just use 2 10mm wrenches to remove replace fan(one holds the other snap it loose), always worked no prob, and ya the shroud you gotta be a little careful like others have said as so many plastic parts, sensors etc are old/brittle.
10-02-04, 11:07 PM
#10
Resident autoglass pro
iTrader: (1)
Join Date: Jul 2003
Location: edinburg PA
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
I think there were lower bolts holding the shroud on to my car. I don't remember, but I had to disconnect the upper rad. hose, and remove the battery at least, and I think I moved the air box too. It took some flexing, but it came out.
10-02-04, 11:13 PM
#11
24 yrs driving 2nd Gen RX
Join Date: May 2002
Location: A Mile Closer to God (Denver)
Posts: 525
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by snub disphenoid
How do I get the shroud off? Seems like there's something in the way no matter what direction I go...
Unbolt the fan/clutch assembly from the water pump pulley. Remove the fan assembly, then the shroud comes out easily.
- k -
