how do i take off my bumper?
04-26-06, 11:20 PM
#1
aim** JI II IM IM Y
Thread Starter
Join Date: May 2005
Location: 90703 cerritos california
Posts: 495
Likes: 0
Received 0 Likes
on
0 Posts
how do i take off my bumper?
i have a s5 bumper but wanna put it in my 10th ae and i have no clue what to unbolt. anyone know how to take out my old bumper? thx
04-26-06, 11:27 PM
#3
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
front or rear? rear is easy. there are a line of bolts that you can access from the inside once you move the carpet out of the way. there are also a couple or nuts/bolts that are accessable from under the car that hold the very sides on.
the front is a little more involved. you will need to unbolt the bottom lip that is also connected to the front fenders. this is done from the bottom. you will unbolt a line of bolts right by the hood latch, and finally you will need to remove 6 nuts/bolts from the sides, 3 on each side accessable from the wheel well once the plastic guard is removed.
hope that helps,
Ryosuke

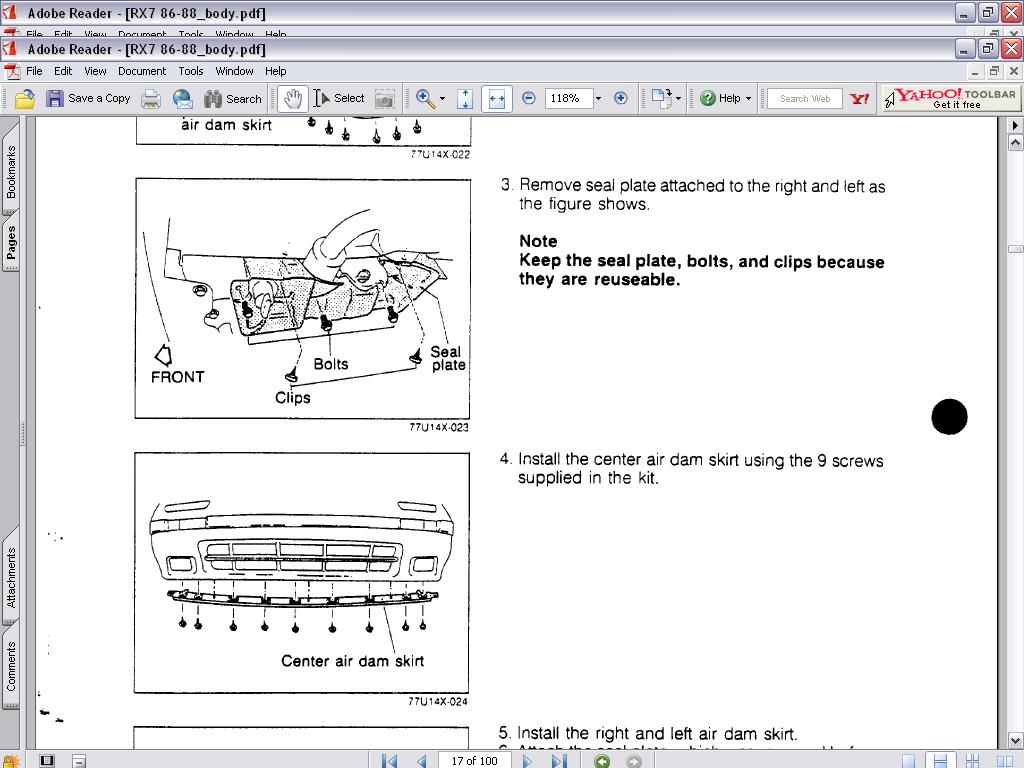

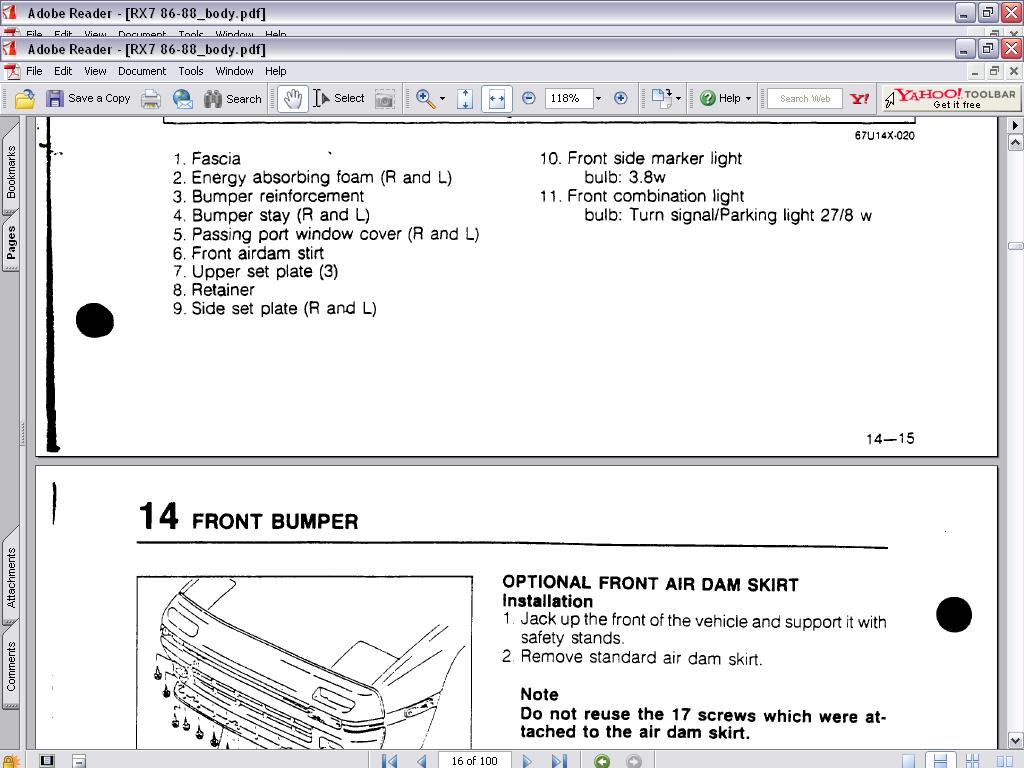

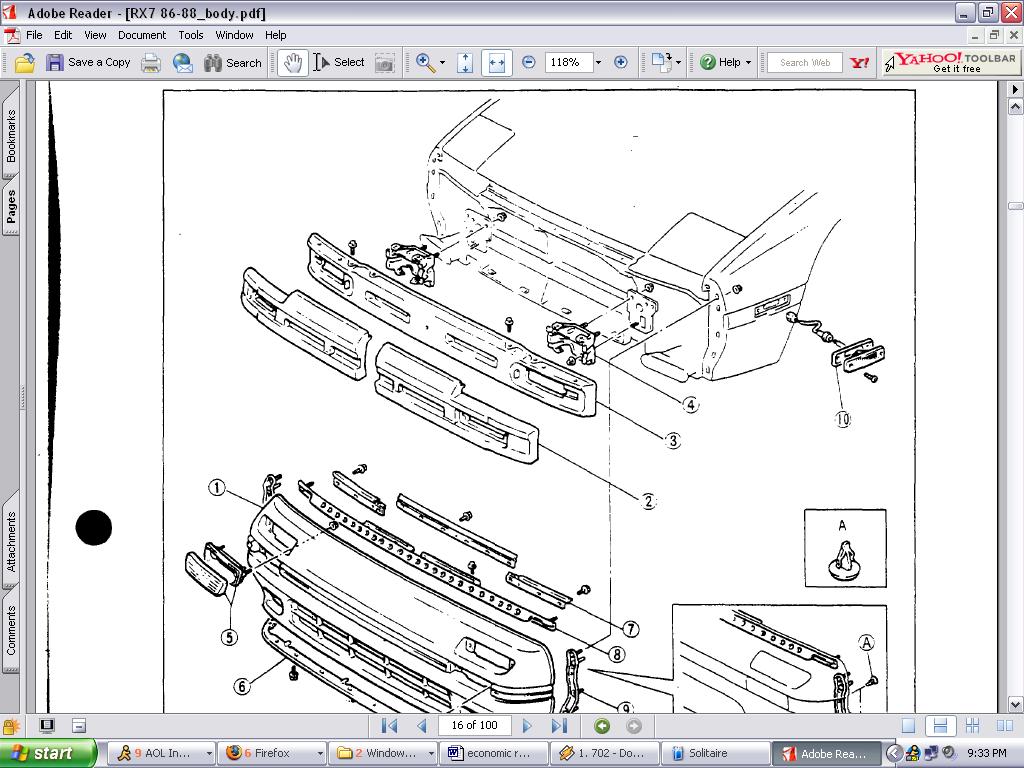

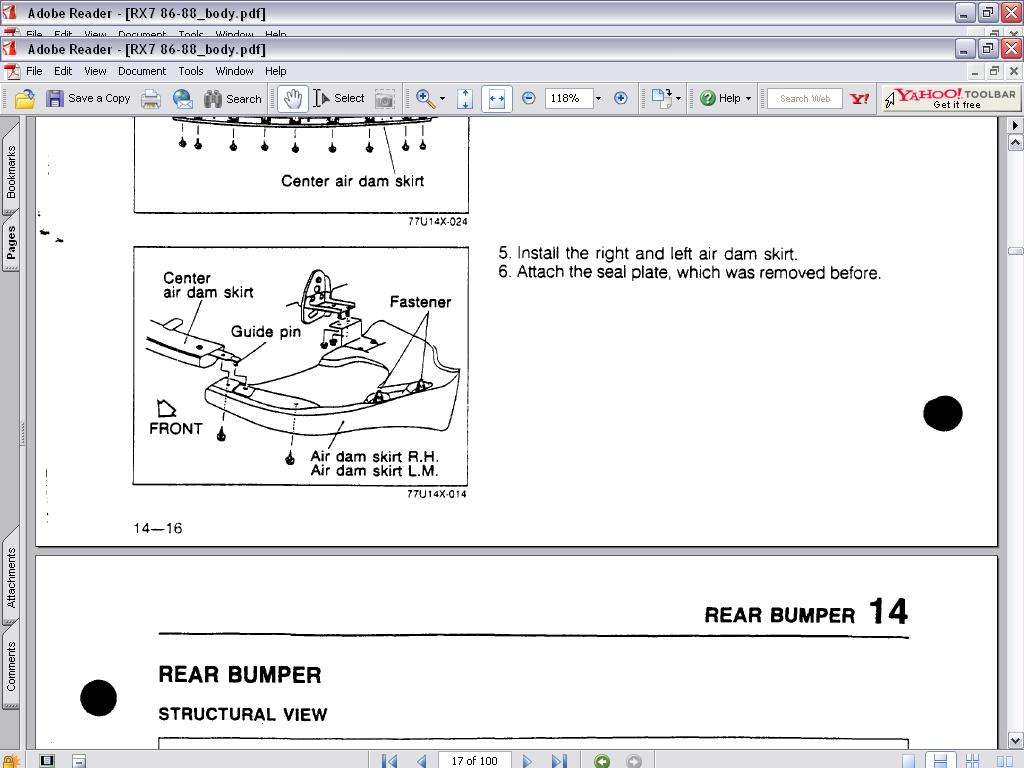

EDIT: Consult your FSM
http://www.teamfc3s.org/main/factory...ual/1986_1988/
http://www.teamfc3s.org/main/factory...ual/1989_1991/
the front is a little more involved. you will need to unbolt the bottom lip that is also connected to the front fenders. this is done from the bottom. you will unbolt a line of bolts right by the hood latch, and finally you will need to remove 6 nuts/bolts from the sides, 3 on each side accessable from the wheel well once the plastic guard is removed.
hope that helps,
Ryosuke
EDIT: Consult your FSM
http://www.teamfc3s.org/main/factory...ual/1986_1988/
http://www.teamfc3s.org/main/factory...ual/1989_1991/
Trending Topics
04-27-06, 02:20 AM
#8
aim** JI II IM IM Y
Thread Starter
Join Date: May 2005
Location: 90703 cerritos california
Posts: 495
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by robtechfabrications
as much as i prefer the s5 bumper...dont do it to a 10th ae!!
04-27-06, 02:26 AM
#9
D1 Drifter Status
Join Date: Dec 2004
Location: Sacramento CA
Posts: 484
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by takahashiRyosukeFC3S
front or rear? rear is easy. there are a line of bolts that you can access from the inside once you move the carpet out of the way. there are also a couple or nuts/bolts that are accessable from under the car that hold the very sides on.
the front is a little more involved. you will need to unbolt the bottom lip that is also connected to the front fenders. this is done from the bottom. you will unbolt a line of bolts right by the hood latch, and finally you will need to remove 6 nuts/bolts from the sides, 3 on each side accessable from the wheel well once the plastic guard is removed.
hope that helps,
Ryosuke
EDIT: Consult your FSM
http://www.teamfc3s.org/main/factory...ual/1986_1988/
http://www.teamfc3s.org/main/factory...ual/1989_1991/
the front is a little more involved. you will need to unbolt the bottom lip that is also connected to the front fenders. this is done from the bottom. you will unbolt a line of bolts right by the hood latch, and finally you will need to remove 6 nuts/bolts from the sides, 3 on each side accessable from the wheel well once the plastic guard is removed.
hope that helps,
Ryosuke
EDIT: Consult your FSM
http://www.teamfc3s.org/main/factory...ual/1986_1988/
http://www.teamfc3s.org/main/factory...ual/1989_1991/
Yeah, listen to this guy hes 100% correct on taking it off. reasemble in reverse order.
04-27-06, 01:53 PM
#12
rotary adrenaline.
Join Date: Oct 2005
Location: West Atlanta, GA
Posts: 98
Likes: 0
Received 0 Likes
on
0 Posts
my answer was, with a 10mm and a lot of time all the bolts/nuts get annoying. and watch out for the ones at the bottom of the cover inside the fender, they like to break.
all the bolts/nuts get annoying. and watch out for the ones at the bottom of the cover inside the fender, they like to break.
04-27-06, 05:02 PM
#13
strictly business
iTrader: (8)
Join Date: May 2005
Location: chamber of farts
Posts: 6,187
Likes: 0
Received 0 Likes
on
0 Posts
To the original question... dude just look under the fenders...and you will need those 10mm thingys... and unscrew...do it...
Your avatar makes me laugh:
Originally Posted by Chief
my answer was, with a 10mm and a lot of time all the bolts/nuts get annoying. and watch out for the ones at the bottom of the cover inside the fender, they like to break.
all the bolts/nuts get annoying. and watch out for the ones at the bottom of the cover inside the fender, they like to break.
