How to bolt on exhaust to aftermarket turbo

ok..like the title says..how do you bolt up the RB full race exhaust to an aftermarket turbo if the hotside of the turbo has no bolts...pics would help
Reply
Old Feb 1, 2005 | 05:32 PM
  #2
jreynish's Avatar
New Project on the Way...
Tenured Member: 20 Years
iTrader: (2)

Joined: Apr 2002
Posts: 3,764
Likes: 6
From: Yellowknife, NT
you need to get the proper clamp most likely it is a vband clamp or you can have a flange welded on the end, and if the turbo is an aftermarket psoistion then you will need to modify your RB DP because of the fact that the position of the turbo will be different.
Reply
Old Feb 1, 2005 | 05:50 PM
  #3
Travelintrevor's Avatar
Thread Starter
B.G.O.B.G.A.I.
Tenured Member 05 Years

Joined: Mar 2004
Posts: 626
Likes: 0
From: EUROPE
i see...the clamp I have seen but I was not sure....has anyone adapted the RB downpipe to an aftermarket turbo? once again..pics would help
Reply
Old Feb 1, 2005 | 05:58 PM
  #4
jreynish's Avatar
New Project on the Way...
Tenured Member: 20 Years
iTrader: (2)

Joined: Apr 2002
Posts: 3,764
Likes: 6
From: Yellowknife, NT

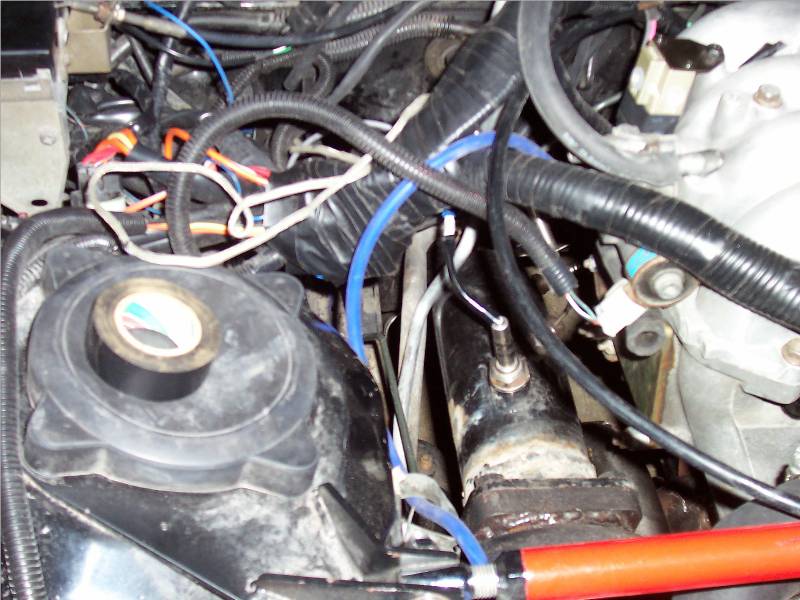

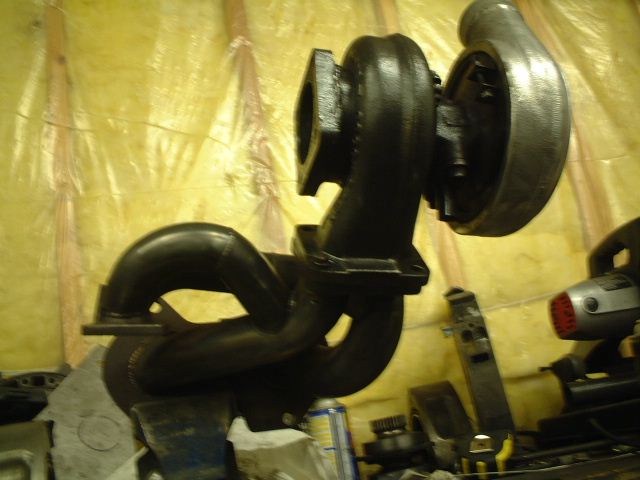

I Had to modify my 3" DP to fit to my aftermarket turbo you will most likely have to do the same I can post a pic of how mine is.
a flange welded on to the end so that I can bolt on the DP.
Attached Thumbnails How to bolt on exhaust to aftermarket turbo-000_0020.jpg   How to bolt on exhaust to aftermarket turbo-panspeed.jpg
Reply
Old Feb 1, 2005 | 06:05 PM
  #5
Travelintrevor's Avatar
Thread Starter
B.G.O.B.G.A.I.
Tenured Member 05 Years

Joined: Mar 2004
Posts: 626
Likes: 0
From: EUROPE
ah..i see..so you had to weld a flange to the turbo! and then extend the downpipe to reach the flange....i get it ..thanks...anyoen else has more pics post them..the more the better..thanks JR
