Hmm...this might be causing some problems...
#1
Must...scrub...parts...
Thread Starter
Hmm...this might be causing some problems...
I just noticed that according to the haynes book there's supposed to be wires for some kind of switch going to the lower left corner of the radiator. I'm lacking these... How bad is this, or did it get eliminated in s5
#2
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
your wire goes to that little round hicky on top of the radiator. It is the coolant level sensor. The other wires must be the thermosensor which is on the water pump housing on a series 5. I have no idea how the series 4 is set up.
Last edited by Samps; 12-19-02 at 10:31 AM.
#4
What Subscription?
Join Date: Apr 2001
Location: Aiken SC USA
Posts: 5,926
Likes: 0
Received 0 Likes
on
0 Posts
lower drivers side of radiator sensor appears to be connector F-37, Water Temp Switch ( http://www.fc3s.org/how_tos/manuals/...NG_DIAGRAM.pdf ) which Detects RADIATOR coolant temperature, sends signal to ECU ( http://www.fc3s.org/how_tos/manuals/...SYSTEMS_NA.pdf )
According to page 39 of ( http://www.fc3s.org/how_tos/manuals/...SYSTEMS_NA.pdf ) Water Temperature switch is an input to the operation of the Aircontrol Valve, so if you have removed your emmissions it is not neccasary. JOhn
According to page 39 of ( http://www.fc3s.org/how_tos/manuals/...SYSTEMS_NA.pdf ) Water Temperature switch is an input to the operation of the Aircontrol Valve, so if you have removed your emmissions it is not neccasary. JOhn
#6
Must...scrub...parts...
Thread Starter
thanks, i've got crappy dialup so it takes forever to the manuals to load. So what is happening since it's not connected and I still have all emissions?
#7
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
It probably is connected. Those two wires that you are looking for at the lower part of the radiator do not exist on your car. You should be just fine.
Trending Topics
#8
20B N/A Wide Body FC3S
I would think that the computer would never think the car warmed up and would adjust fuel for the lower temp.. does you car seem to be running richer than the usual rotary does?
#9
Must...scrub...parts...
Thread Starter
the one on the water pump housing is connected, i just didn't remember it but i just looked. I'm still concerned about the one on the radiator though
#12
Must...scrub...parts...
Thread Starter
it's a 90tII. i'm sure it's running rich since it blackens spark plugs very quickly even when i was driving around accidently with the waste gate stuck shut for about a month.
#14
Must...scrub...parts...
Thread Starter
i didn't see samps' anwser, if i dont have one then i guess it's not a problem for it to not be connected thanks everyone. if you really want to make me happy, tell me you have one of the solenoid valves that's above the bac valve next to the intercooler laying around. what mazda wants for it is obscene
#15
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Hehehe, a series 4 radiator will have a connection for those unknown wires of yours. But I'm a little confused. Do you HAVE the wires? Or do you HAVE the plug that the wires are supposed to hook up to? If you have the plug, but no wires, then somebody put a series 4 radiator in your T2.
#16
Must...scrub...parts...
Thread Starter
I have neither the plug or the wires, although there is a depression in the radiator that could concievably hold some sort of sensor. I was just flipping through the book and noticed a diagram. It didn't specify that s5 was different and since i recently pulled my radiator to fix/clean the fins and didn't have the wires, i was a little concerned.
#17
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Only the series four uses the water temp switch on the bottom left side of the radiator. You have a series five. I think someone has put a series four radiator in your car. Don't waste time looking for the wires. They ain't thar.
This is a repeat of SAMPS above.
This is a repeat of SAMPS above.
#20
~~~~~~~~~~~~~~~~~~~~~~~
Join Date: May 2001
Location: Pittsburgh, PA
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by banzaitoyota
thats the temp sensor located on the oil pan Turtle
thats the temp sensor located on the oil pan Turtle
#22
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Ah, the endless confusion over FC temperature sensors...
For the record the sensor at the bottom of the radiator is only a switch (not a variable sensor) and is part of the emission controls (3000rpm start-up I believe) on S4's only, and has no effect of fuel and ignition control or normal idling.

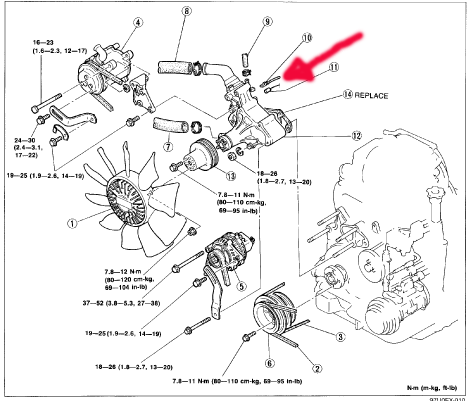

The two plugs that Samps has indicated in that picture are for the ECU thermosensor (very important) and the electric fan temp switch (that pic's of a S5, on a S4 the fan switch is on top of the thermostat housing).
The temp switch in the oil pan is for the sub-zero starting assist.
For the record the sensor at the bottom of the radiator is only a switch (not a variable sensor) and is part of the emission controls (3000rpm start-up I believe) on S4's only, and has no effect of fuel and ignition control or normal idling.
The two plugs that Samps has indicated in that picture are for the ECU thermosensor (very important) and the electric fan temp switch (that pic's of a S5, on a S4 the fan switch is on top of the thermostat housing).
The temp switch in the oil pan is for the sub-zero starting assist.
