HKS Super AFR install questions
#1
Senior Member
Thread Starter
Join Date: Nov 2003
Location: Fidalgo Island,Wa
Posts: 366
Likes: 0
Received 0 Likes
on
0 Posts
HKS Super AFR install questions
when installing the afr on the S5 which wire ( pin on ecu ) do i tap for the RPM signal. and then when i get past that what type of air meter does it have hot wire (0-5v) , hot wire (5-0v) , karmen vortex, or pressure sensor thanks for the help
#2
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts
Fellow S-AFR user, checking in.
We use a 0-5V hot wire, meaning dip switches 1 and 2 are both "Off" (up.)

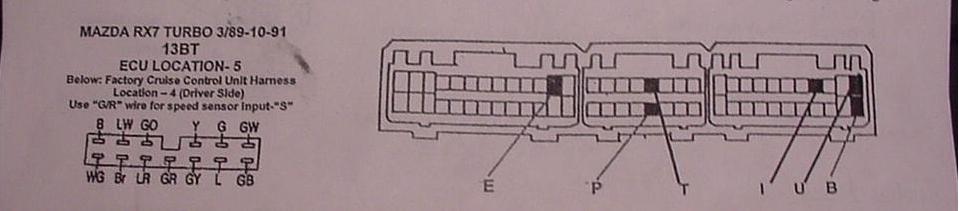

I took a photo for you of the wiring diagram for an S5. "I" is the RPM input. It says "Turbo," but it's the same as the N/A.
We use a 0-5V hot wire, meaning dip switches 1 and 2 are both "Off" (up.)
I took a photo for you of the wiring diagram for an S5. "I" is the RPM input. It says "Turbo," but it's the same as the N/A.
Last edited by Kai; 10-28-04 at 03:22 AM.
#4
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts

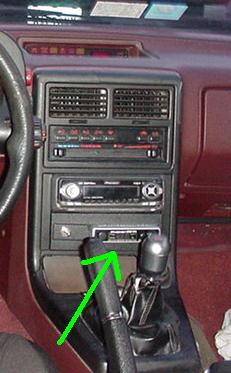

I like it because it is small (1/4 DIN, it fits in half the equalizer slot in my head unit adapter plate) and it doesn't have the huge "STEAL ME!" blue screen that the S-AFC has... but it will still adjust the A/F ratio just as well. I'm amazed they didn't catch on sooner, I've had mine since last April. They only go for about $120-150 used, I got mine for $150 shipped and have been loving it ever since.
Last edited by Kai; 10-28-04 at 03:51 AM.
#7
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by SureShot
Meter type is "flap".
Originally Posted by Corbit
how do you feel that the afr works for you ?
Trending Topics
#10
Rotary Enthusiast
Join Date: Sep 2002
Location: Richmond, VA
Posts: 1,123
Likes: 0
Received 0 Likes
on
0 Posts
Chris,
Very cool - I like the install. Sorry I didn't have those body panels for you last month, did you get them from the junkyard? I see you have red interior - Do you need any red interior stuff. I've got a complete red interior just taking up space.
-Jayson
Very cool - I like the install. Sorry I didn't have those body panels for you last month, did you get them from the junkyard? I see you have red interior - Do you need any red interior stuff. I've got a complete red interior just taking up space.
-Jayson
#11
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by koukifc3s
What about the DIP switch 3 and 4?
3 is for the EIDS function and 4 is the self learning function.
3 is for the EIDS function and 4 is the self learning function.
Originally Posted by cafcwest
Sorry I didn't have those body panels for you last month, did you get them from the junkyard? I see you have red interior - Do you need any red interior stuff. I've got a complete red interior just taking up space.
-Jayson
-Jayson
#12
Rotary Enthusiast
Join Date: Sep 2002
Location: Richmond, VA
Posts: 1,123
Likes: 0
Received 0 Likes
on
0 Posts
I dont have the red rear seats myself. I got a set of grey I'm trying to get rid of..but no help to you. I know of a very small junkyard in the Tidewater area where I grew up. About 4 months ago I was there and they had just gotten a red S4 GXL with red interior and back seats. They were in really good condition. If you'd be interested, I can get you a phone number or stop by and get you a price.
-Jayson
/whoring out AFR thread
-Jayson
/whoring out AFR thread
#13
Clogged cat
iTrader: (3)
Join Date: Sep 2002
Location: Orange County, CA
Posts: 2,000
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Kai
Leave number three "off." Number four is turned "on" when you start the car for the first time with it in, it activates the self-learning mode. Set the number of cylinders (4 for two rotor use.) Be sure all power accessories are off (lights, wipers, radio, AC, etc.) and allow the car to fully warm up. Flip it off, and you're good to go.
#14
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by koukifc3s
In the manual it says turn it off when u 1st start and then off when it's warmed up?
After that, you start the engine and follow the self-calibration procedure.
#18
Senior Member
Thread Starter
Join Date: Nov 2003
Location: Fidalgo Island,Wa
Posts: 366
Likes: 0
Received 0 Likes
on
0 Posts
I got mine in but have yet to get it tuned. HEFFboost has a wide ban and is cool enogh to help me to get her in tune. But i do like it , thanks for the good deal on it. Did you ever get your halfbridge up and running ?
#20
Rotorphile.
Join Date: Mar 2002
Location: Richmond/NoVA
Posts: 1,296
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by koukifc3s
what I meant was that #4 is actually turned off when u 1st start the car and then turned on
Follow that? Me neither.
