Hello all! I wanted to make sure I am attaching these hoses to the right area.
I marked them w/numbers.

1. It this the hose that attaches to the back side of the upper intake?
2. Is this hose hooked up to the right plugs?
Thank you!
Chris

I have a 88t2, and am working from a 87 workshop manual, so I am just double checking.



bump



#1 (between the oil injectors) goes to the back of the UIM on the 2 nipple from the TOP.
#2 is correct



Thank you Boosted! I have a pic, and I am anot sure, but is that the number two you are speaking of?
THanks,
Chris



bump



2nd nipple is to the one between the oil injectors
3rd is to the round vacuum distributor block
You have the one angled towards the firewall is to the pulsation dampener right?

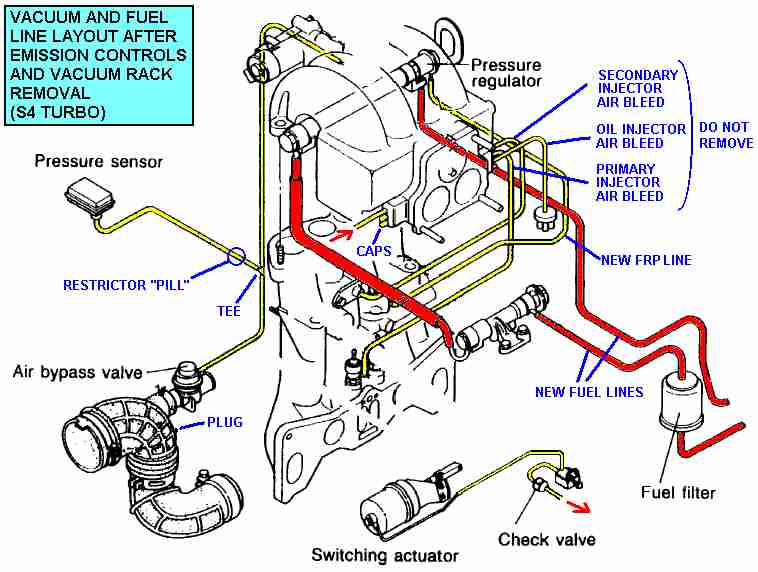

Here...someone did a colored diagram ..may be helpful in the future

https://www.rx7club.com/forum/attach...chmentid=66630



You wrote === #1 (between the oil injectors) goes to the back of the UIM on the 2 nipple from the TOP.
===

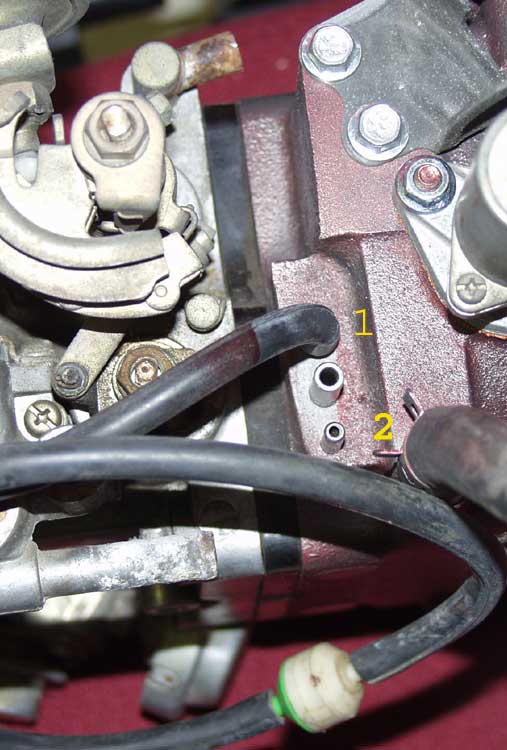

In pic two, I marked the two smaller vacuum line inlets only. #1 goes back to the little plastic dudad on the throttle body. #2, is where I think my mystery red vacuum line goes.

THanks for your help!
Chris



O-- to the nipple on the UIM
O-- to the nipple between the oil injectors
O-- to the vacuum distribution block (oil injectors)



The front 3 goes to the vacuum metal spider. Let me know if you cannot locate where it goes.
