Help Setting Throttle Cable and Keeping the Car Alive Vids & Pics
01-30-05, 03:54 PM
#1
Help Setting Throttle Cable and Keeping the Car Alive Vids & Pics
Alright Thanks for everyones help on the last thread I got the fc alive
now i have questions regarding setting my throttle cable and the car

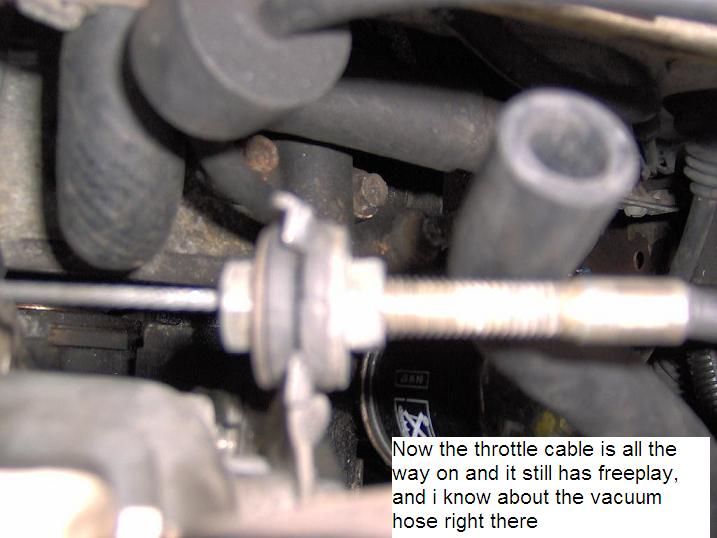

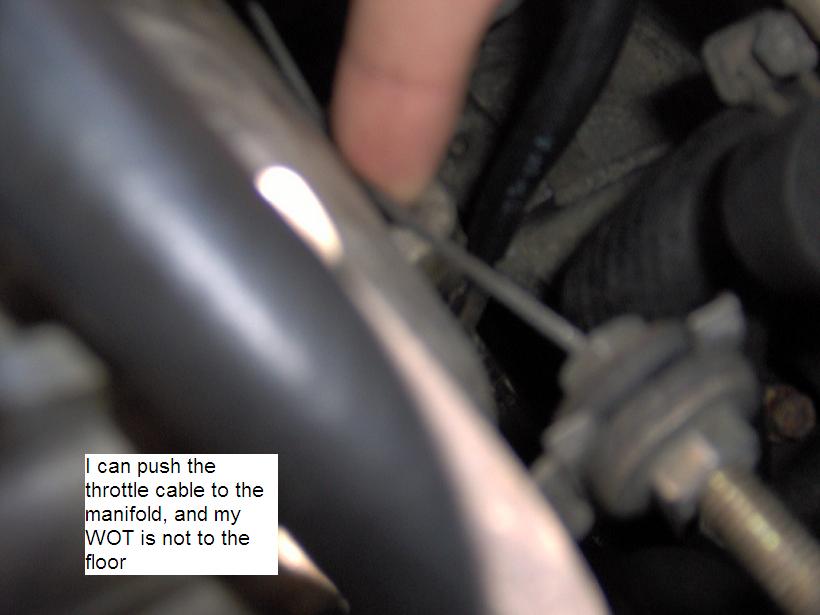

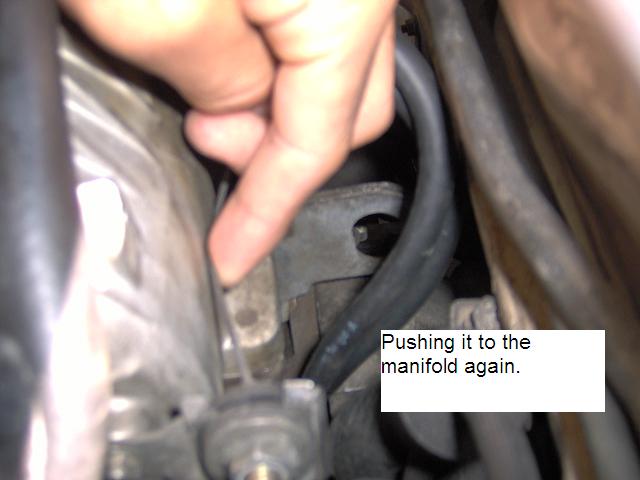

keeps dieing and making a whining noise. The pics explain the throttle cable
problem and the video explains the weird noise and when it dies down, i
plugged the afm right and all the connections for that are on good.
and all of my vacuum lines are on right, its weird. Thanks for any help.
Right click save as for vid: http://www.elit3.com/upload.php?file=IM000354.MPG
Edit- Note the whining of the motor.
Oh and this was what i did for the job:
All vacuum lines changed including spider
SS Omp lines
Rebuilt injectors
Firewall heater hose
Fuel Filter with new fuel lines and clamps
K & N A OEM filter
OEM Radiator Cap
Coolant Hoses
Upper & Lower Radiator Hoses
Castrol GTX 20W50
OEM Filter
New Fuel Lines
Put on new intake manifold because i broke my old one threading the bolts wrong.
New gasket for intake manifold
New lower-middle Gasket
new 6 port actuator gaskets
new acv gasket
now i have questions regarding setting my throttle cable and the car
keeps dieing and making a whining noise. The pics explain the throttle cable
problem and the video explains the weird noise and when it dies down, i
plugged the afm right and all the connections for that are on good.
and all of my vacuum lines are on right, its weird. Thanks for any help.
Right click save as for vid: http://www.elit3.com/upload.php?file=IM000354.MPG
Edit- Note the whining of the motor.
Oh and this was what i did for the job:
All vacuum lines changed including spider
SS Omp lines
Rebuilt injectors
Firewall heater hose
Fuel Filter with new fuel lines and clamps
K & N A OEM filter
OEM Radiator Cap
Coolant Hoses
Upper & Lower Radiator Hoses
Castrol GTX 20W50
OEM Filter
New Fuel Lines
Put on new intake manifold because i broke my old one threading the bolts wrong.
New gasket for intake manifold
New lower-middle Gasket
new 6 port actuator gaskets
new acv gasket
Last edited by Andrew.; 01-30-05 at 03:58 PM.
01-30-05, 09:50 PM
#4
Rotary Freak
Join Date: Apr 2002
Location: Boulder, CO
Posts: 1,739
Likes: 0
Received 0 Likes
on
0 Posts
1) video don't work
2) why do you think the throttle should be at WOT after moving the throttle cable like 2 mm to the side?
3) I have no idea what the problem is?
2) why do you think the throttle should be at WOT after moving the throttle cable like 2 mm to the side?
3) I have no idea what the problem is?
01-31-05, 01:58 PM
#5
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
The whine sounds like a noisy idler pulley bearing; or something else driven by the belts.
The zoom zoom is the TPS at closed throttle and something like a vac leak pushing revs >1500 where the ECU gives a fuel cut.
The zoom zoom is the TPS at closed throttle and something like a vac leak pushing revs >1500 where the ECU gives a fuel cut.
01-31-05, 02:50 PM
#6
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Originally Posted by Bigretardhead
1) video don't work
Free - no adds - no popups - no spyware.
http://www.allplayer.prv.pl/
01-31-05, 02:55 PM
#7
Originally Posted by SureShot
The whine sounds like a noisy idler pulley bearing; or something else driven by the belts.
The zoom zoom is the TPS at closed throttle and something like a vac leak pushing revs >1500 where the ECU gives a fuel cut.
The zoom zoom is the TPS at closed throttle and something like a vac leak pushing revs >1500 where the ECU gives a fuel cut.
Trending Topics
01-31-05, 03:13 PM
#8
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
To isolate bearing noise – the old school mechanic’s stethoscope:
Grab a thin stick, dowel, or rod at the end. (even a long screwdriver)
Put the other end on the bearing nut of an idler, or on the frame of an accessory.
Put your ear to the finger & thumb of the hand holding the rod.
You’ll be amazed at what you can hear.
While troubleshooting for a vac leak, unplug the TPS to avoid the cycling fuel cuts.
Grab a thin stick, dowel, or rod at the end. (even a long screwdriver)
Put the other end on the bearing nut of an idler, or on the frame of an accessory.
Put your ear to the finger & thumb of the hand holding the rod.
You’ll be amazed at what you can hear.
While troubleshooting for a vac leak, unplug the TPS to avoid the cycling fuel cuts.
