help with RELAY. what is what (pic)

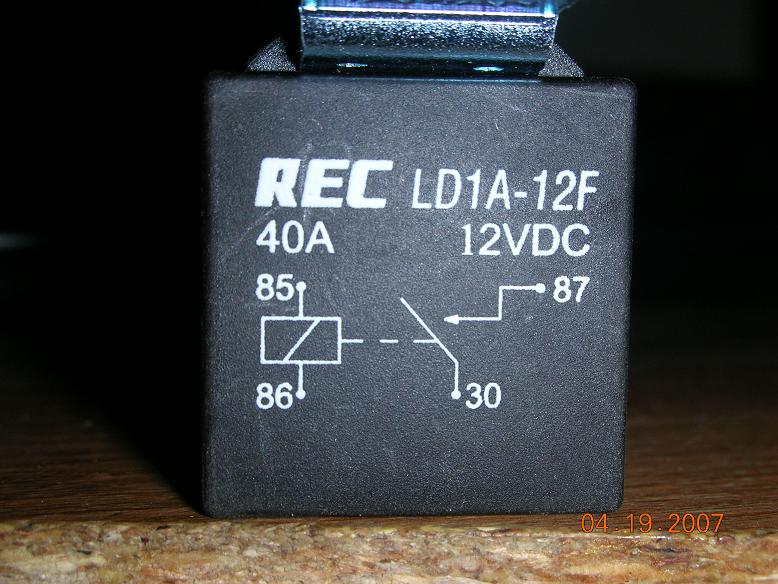

im doing the fuel pump rewire, and on the relay i bough it has a pic, i dont know what one is what. little help plz
04-19-07, 01:35 PM
#3
Banned. I got OWNED!!!
Join Date: Jun 2004
Location: ft collins, co
Posts: 271
Likes: 0
Received 0 Likes
on
0 Posts
i believe you have that backwards.. 85 & 86 go to the coil of the relay. this is what opens and closes the connection. so one of these will go to 12v (ignition on possibly). the other will go to your control source(ecu). when the ecu wants the fuel pump on it connects the other point to ground, completing the circuit. when this happens 87 and 30 will be connected together. so 87 or 30 will also have 12v and be powered by a wire large enough to carry the current needed for the fuel pump. then the other connection will go to the fuel pump.
04-19-07, 03:03 PM
#6
Taste great, more filling
iTrader: (1)
Join Date: Feb 2005
Location: Dallas, TX
Posts: 2,012
Likes: 0
Received 0 Likes
on
0 Posts
85 and 86 are switched little +12v (only on when key is on) and ground, 87 is big +12v from battery and 30 is big +12v to + on fuel pump.
on 85 and 86, it doesn't matter which is which - and I guess it really doesn't matter on 30 and 87 either.
on 85 and 86, it doesn't matter which is which - and I guess it really doesn't matter on 30 and 87 either.
04-19-07, 03:32 PM
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

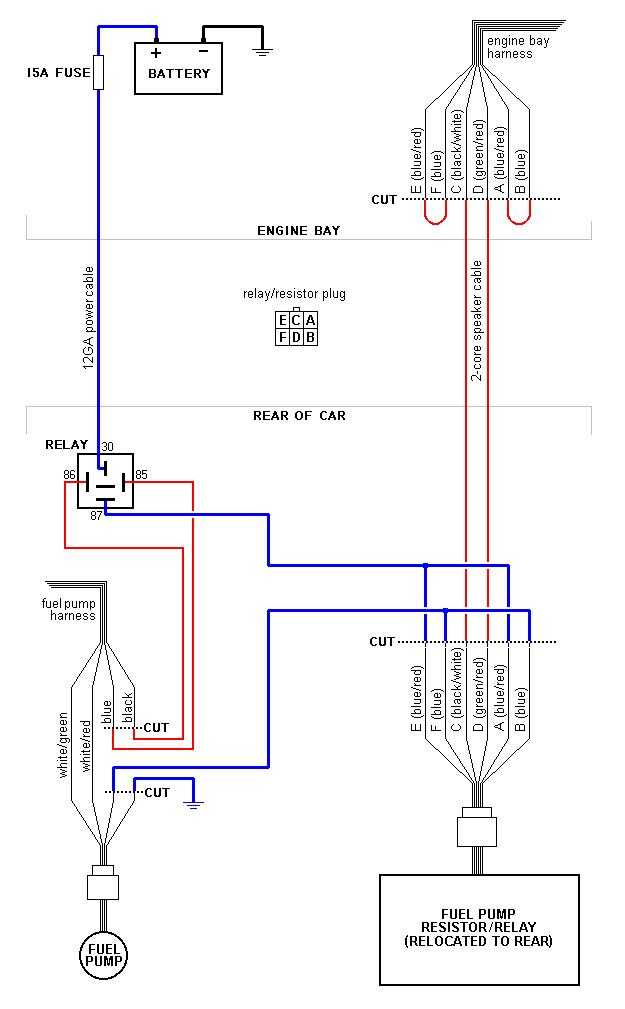

The guy from New Zealand, who has a convertible, posted the jpg that is attached. Eighty five and eighty six are the wire to the coil. The other two are the input/output.
