Help Modifying Bosch 1600cc Injectors
11-23-11, 02:14 PM
#1
Help Modifying Bosch 1600cc Injectors

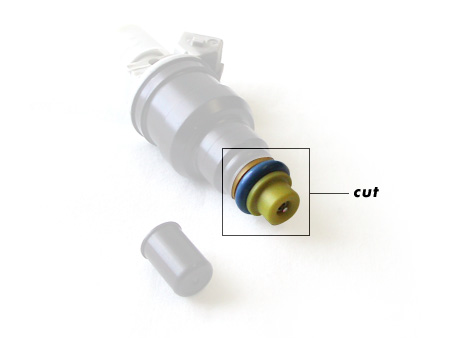

I purchased some Bosch 1600cc injectors and didn't realize they weren't already modified to fit an FC. According to this site: http://www.rotaryheads.com/modifications/bosch-1600cc/ they have to be modified by cutting off some of the top plastic. It says he used a Dremel but to "not nick the metal". Any tips on what attachment to use or an alternative method? That seems like a risky undertaking.
11-23-11, 07:08 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
unless you are real shakey,I think you would do this mod just fine.
it entails taking those upper plastic rings off so it goes down to bare metal on the injector.
If you feel you are too close just use a small file and shave the plastic enough so that you can get it off.It will come off easy enough.
it entails taking those upper plastic rings off so it goes down to bare metal on the injector.
If you feel you are too close just use a small file and shave the plastic enough so that you can get it off.It will come off easy enough.
11-24-11, 04:24 PM
#3

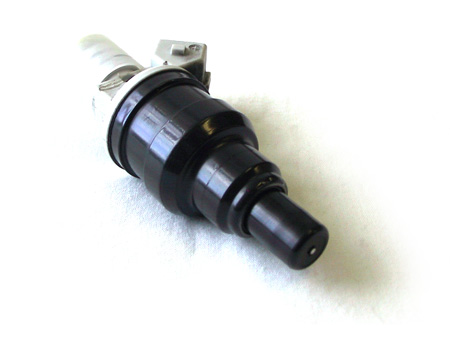

install an s5 injector pintle cap and it will be fine. It must be s5. Mazdatrix has them http://www.mazdatrix.com/c-6.htm , specificially this part http://www.mazdatrix.com/getprice.as...m=13-MZTX-0003
this is exactly what I am using with my own set of these injectors.
this is exactly what I am using with my own set of these injectors.
