help with fuel hoses
#1
Senior Member
Thread Starter
Join Date: Jul 2004
Location: kansas
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
help with fuel hoses
I am having difficulties installing the Earl's Super Stock hoses into the stock hose ends. they are both -6 AN sizes but i cant seem to push them in by hand , it would go half way and just wouldnt move anymore. Anyone have any tips or tricks on how to do it efficiently ? pls i need desperate help here
and btw how do u remove the fan and fan shroud. do u remove the fan first or the shroud first? and for the fan u remove it by the nutz behind the fan?
thank you so much.
and btw how do u remove the fan and fan shroud. do u remove the fan first or the shroud first? and for the fan u remove it by the nutz behind the fan?
thank you so much.
#2
Warheads on foreheads!
iTrader: (8)
i dunno about the hoses... ive never used AN sized stuff... nut as for the fan and shroud... take the fan off first, remove the nuts off of the wate pump (4) with a 10mm wrench. then take off the upper rad hose, and then the shroud, by removing the bolts on the radiator.
#3
Lives on the Forum
Weird...
Stock fuel lines are 5/16", which is technically a -5AN size.
-6AN is larger, so it should slip on rather easily?
Try some oil or lubricant on the hose to help slip it on...
-Ted
Stock fuel lines are 5/16", which is technically a -5AN size.
-6AN is larger, so it should slip on rather easily?
Try some oil or lubricant on the hose to help slip it on...
-Ted
#4
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts

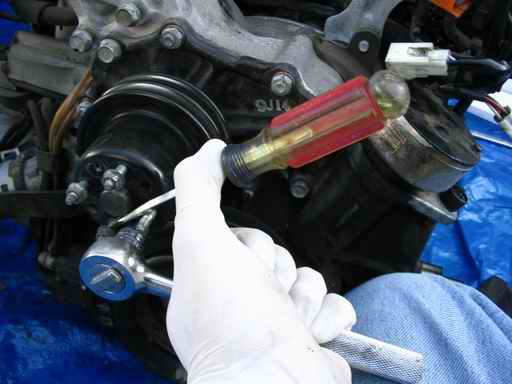

Use a screwdriver wedged inbetween the bolts holding the the fan on so it doesn't spin while you break the nuts, they're easy to unthread by hand once you break them loose. Take the fan off... it makes taking the shroud of easier.
--Gary
--Gary
#5
Senior Member
Thread Starter
Join Date: Jul 2004
Location: kansas
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
thanks got the fan parts...
for the fuel system
i didnt use the stock fuel rails.... i used your paralel fuel diagram mod RETed..... so all are in -6AN sizes , fittings and hoses.. any tips?
for the fuel system
i didnt use the stock fuel rails.... i used your paralel fuel diagram mod RETed..... so all are in -6AN sizes , fittings and hoses.. any tips?
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
You lay the shank of the screwdriver b/t two of the nuts on the fan, then hold it while removing one of the two remaining nuts. The tip of the screwdriver has nadda to do with removing the nuts.
#11
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by MIDNFauciUSN
ewww nazty ratchet... time to bust out the craftsman...
It's a sacrifice to the 13B Pulley Nut gods.
Now there's a craftsman 1/2 that I use in its place... of course I didn't try that one on the pulley nut, but I'm sure it could take it.
--Gary
