HELP!! cant get brake rotor screws out

Thread Tools

Search this Thread

Old 06-04-06, 07:28 PM
  #1
Junior Member

Thread Starter

GunmetalRX's Avatar

Join Date: Jan 2006
Location: Albany, NY
Posts: 25
Likes: 0
Received 0 Likes on 0 Posts
Exclamation HELP!! cant get brake rotor screws out

well, today ive successfully broken a total of one snap on screwdriver, one drill bit, and four supposedly 'indestructable' bits attempting to remove the two screws/bolts that hold the rotors on. will someone please give me a solution to this problem. they are on unbelievably tight.
Old 06-04-06, 07:33 PM
  #2
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
Drill the heads off.......remove rotor............remove the rest of the threads with vise grips or your fingers.
Old 06-04-06, 07:42 PM
  #3
Rotary Apprentice


NOPR's Avatar

Join Date: Jan 2005
Location: USA
Posts: 2,181
Likes: 0
Received 0 Likes on 0 Posts
those things SUCK, i dont even put them back on my car. good luck...
Old 06-04-06, 07:46 PM
  #4
Senior Member


SwiftTone's Avatar

Join Date: Apr 2001
Location: BossTown, MA
Posts: 426
Likes: 0
Received 0 Likes on 0 Posts
use an impact screw driver.

if they break, use a carbide bit.

When you put the new ones on, use anti-sieze and snug it on tight, not too tight.
Old 06-04-06, 07:53 PM
  #5
Rotor Head


DC350's Avatar

Join Date: Jan 2002
Location: British Columbia
Posts: 1,966
Likes: 0
Received 0 Likes on 0 Posts
Just heat them up and they will come right out.

I just did mine the other day and i had to heat them.
Old 06-04-06, 08:00 PM
  #6
I just wanna hump my car.

iTrader: (3)

NeCr0mStR's Avatar

Join Date: May 2002
Location: Lansing area Michigan
Posts: 841
Likes: 0
Received 1 Like on 1 Post
heat + impact screw driver = winning combination
Old 06-04-06, 08:15 PM
  #7
Senior Member

iTrader: (1)

Innovation's Avatar

Join Date: Aug 2004
Location: Winter Park, Florida
Posts: 668
Likes: 0
Received 1 Like on 1 Post
Yup the hand held Craftsmen impact is a must for the cars up north will all the salt on the roads. Somebody else said drill it off and use a vise grip to get them off but you already broke a drill bit. Use some oil next time drilling and it won't overheat and break.
Old 06-04-06, 08:20 PM
  #8
Full Member


carsaregood's Avatar

Join Date: Aug 2003
Location: Huntington Beach
Posts: 115
Likes: 0
Received 0 Likes on 0 Posts
another idea that has worked really well for me in the past is to use a screwdriver bit, but put it in a socket and use a rachet. the extra torque you get helps out a lot. and if all else fails, i'll use a dremel and a cutting wheel and just cut the cross deeper. it will both weaken the screw, and give you more grip since the slots are deeper. you will cut into your rotors though.
Old 06-04-06, 09:12 PM
  #9
Senior Member


Mazda99Nikon's Avatar

Join Date: Dec 2003
Location: Lexington, IL
Posts: 292
Likes: 0
Received 0 Likes on 0 Posts
Mine was so tight I finally gave up and took it to Meineke. The service guy said he had never seen one so tight. He was forced to use a torch and followed it with some sort of socket that binds into the head of the bolt after some newb has stripped the hexes off. He wasn't happy.
Old 06-04-06, 09:32 PM
  #10
I'm back Bishes


rotorforce's Avatar

Join Date: Jan 2006
Location: Rhode Island
Posts: 1,241
Likes: 0
Received 0 Likes on 0 Posts
Craftsmen impact screwdriver FTW! A must have in your toolbox
Old 06-05-06, 04:27 PM
  #11
Rotary Freak

iTrader: (7)

Go48's Avatar

Join Date: Feb 2005
Location: Mont Alto, PA
Posts: 1,608
Likes: 0
Received 2 Likes on 2 Posts

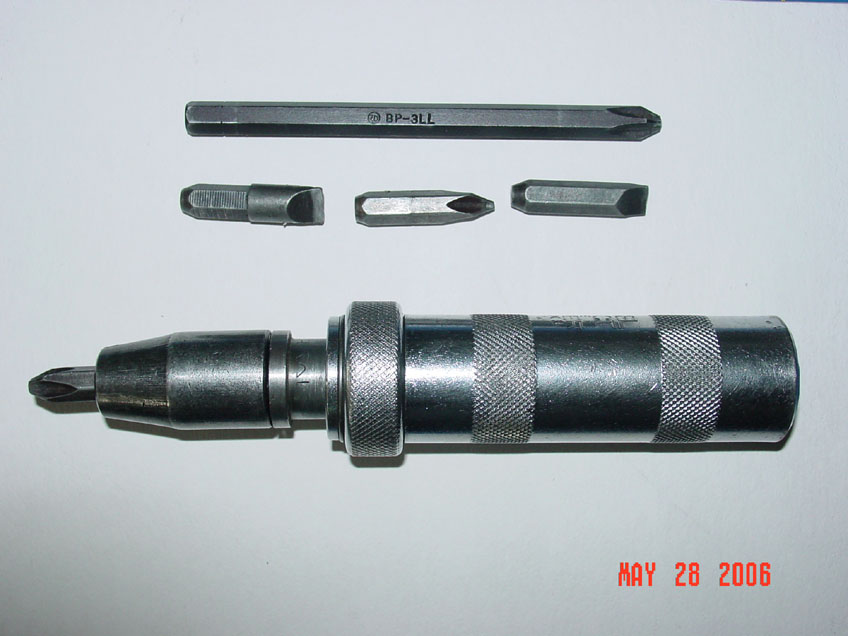

Get one of these as others have suggested. Hold the driver FIRMLY against the screw head and smack the driver REAL hard with a hammer. Guaranteed to work, unless the screw head is totally rounded out.
Attached Thumbnails HELP!! cant get brake rotor screws out-impactdriver.jpg
Old 06-05-06, 04:29 PM
  #12
He who smokes bitches


cool_as_crap's Avatar

Join Date: Jun 2005
Location: El Dorado County
Posts: 3,452
Received 0 Likes on 0 Posts
Originally Posted by Go48
Get one of these as others have suggested. Hold the driver FIRMLY against the screw head and smack the driver REAL hard with a hammer. Guaranteed to work, unless the screw head is totally rounded out.
holy crap, where do i find one of those?? thats awsome
Old 06-05-06, 09:32 PM
  #13
That's JDM tight, yo


311unity13B's Avatar

Join Date: Nov 2003
Location: Atlanta
Posts: 1,599
Likes: 0
Received 0 Likes on 0 Posts
sears or any parts truck
Old 06-05-06, 09:56 PM
  #14
Senior Member


royaltrex7's Avatar

Join Date: Apr 2006
Location: byram, ms
Posts: 420
Likes: 0
Received 1 Like on 1 Post
or your local harbor frieght for 4.99
Old 06-05-06, 10:22 PM
  #15
That's JDM tight, yo


311unity13B's Avatar

Join Date: Nov 2003
Location: Atlanta
Posts: 1,599
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by royaltrex7
or your local harbor frieght for 4.99

haha, that place rocks
Old 06-05-06, 10:41 PM
  #16
Panda Bear

iTrader: (4)

Turbo23's Avatar

Join Date: Nov 2001
Location: Lititz, PA
Posts: 1,732
Likes: 0
Received 4 Likes on 3 Posts
you can also use a dremel, cut the head of the screw to make it where you can use a large flat head screwdriver. Get a long driver, and boom, its out Anti seize helps too
Old 06-05-06, 11:17 PM
  #17
Senior Member


royaltrex7's Avatar

Join Date: Apr 2006
Location: byram, ms
Posts: 420
Likes: 0
Received 1 Like on 1 Post
i went and got a good drill bit drilled the center out on the fronts and let the head come out then took the rotors off and used vise grips. on the rears i heated them up with a map gas torch and impact screwdriver.
