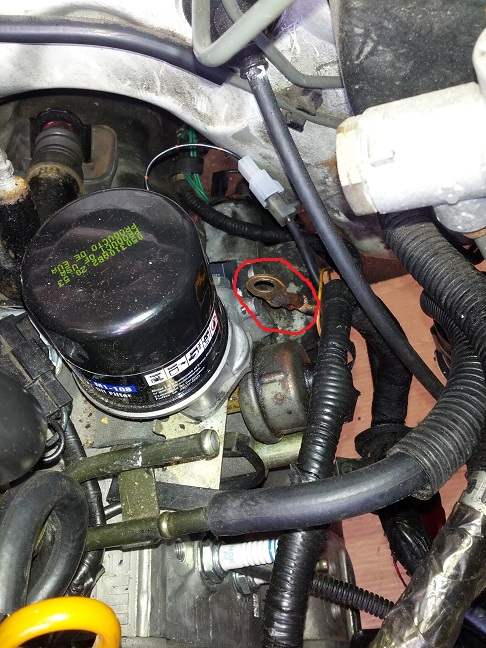

in picture.

That's ground right? Where does this connect to? to the body or to the engine?


it's been a while since I took this out (more than a year) and I completely forgot where this goes. it's right next to the "condenser" wire.

oh, what does the "condenser" do anyway? some sort of noise filter I assume?

Thanks!



yea on mine it goes where the starter bolt goes on the nut that bolts to the motor



oops sorry i didnt see the part about not being the starter one



actually I think my words confused you

This goes on to the starter bolt? I assume it's the Long bolt ?

I think my words confused you, I mean I connected the one that has a plastic/rubber cover one to the starter solenoid already.



yes the long starter bolt... hook up your fuel line too! lol



its cool lol im having electrical issues anyone have pinouts for plugs already got the ecu ones done just got the two plugs above them on the harness if not... how do you post threads???????



Sweet, I just put the starter on, not hard to do

lol! nah I'm just gonna leave it like that, battery on, STARTttTTT



There are a lot of plugs here and there and chances are you'll get a response that has value if you explain what the "color" of the plugs are as well as the wire colors involved plus the year of the car.



the 2 plugs above the ECU plugs ?

are you talking about the 2 that connects to the dash? (behind the firewall)

if it is those 2 plugs, enjoy, it's such a pita to reach up to connect both.

Just remember, the Clip side face to the RIGHT side. and I think the smaller plug goes to the one closer to the door first.



starter bolt
