Greddy 2 row FMIC install :cool:
10-01-05, 01:47 AM
#1
(_8(|)
Thread Starter
Join Date: Jul 2004
Location: Manhattan, Kansas
Posts: 2,034
Likes: 0
Received 0 Likes
on
0 Posts
Greddy 2 row FMIC install
Got the kit yesterday, and finished it today. Overall i thought it was a very easy install.
For BOV placement i read/searched throurally and decided to go with as close to the TB as possible, and i think i accomplished that
We used a dremel on all the holes that were needed to cut.
Things i had to move for the piping to fit were: leading coil, pressure sensor, battery is already relocated, power steering was ripped out, and i decided not to keep the bumper reinforcement. The only clearance issue i ran into was with the brake master cylinder, the i/c pipe rubs up against it, but it doesnt leak or anything(im going to keep an eye on it).
Im still going to chop the bumper some(had issues with fuses blowing that hindered further use of power tools). But other than that everything is pretty much done. Ill be making a for sale thread with these items in it: greddy BOV adapter piece for TMIC, stock tmic, stock tmic brace/frame, and whatever elsei deem "not junk".
Enjoy:
Me with a JDM angle
BOV placement
No bumper
Finished w/no hood (yes it is dirty)
Meh
For BOV placement i read/searched throurally and decided to go with as close to the TB as possible, and i think i accomplished that
We used a dremel on all the holes that were needed to cut. Things i had to move for the piping to fit were: leading coil, pressure sensor, battery is already relocated, power steering was ripped out, and i decided not to keep the bumper reinforcement. The only clearance issue i ran into was with the brake master cylinder, the i/c pipe rubs up against it, but it doesnt leak or anything(im going to keep an eye on it).
Im still going to chop the bumper some(had issues with fuses blowing that hindered further use of power tools). But other than that everything is pretty much done. Ill be making a for sale thread with these items in it: greddy BOV adapter piece for TMIC, stock tmic, stock tmic brace/frame, and whatever elsei deem "not junk".
Enjoy:
Me with a JDM angle
BOV placement
No bumper
Finished w/no hood (yes it is dirty)
Meh
Last edited by 88t2romad; 10-01-05 at 01:53 AM.
10-01-05, 02:39 AM
#3
Banned. I got OWNED!!!
Join Date: Nov 2002
Location: San Jose, CA
Posts: 312
Likes: 0
Received 0 Likes
on
0 Posts
10-01-05, 03:17 AM
#5
1993 Mazda RX7 R1
Join Date: Jul 2003
Location: Oshawa, Ontario
Posts: 1,249
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Madrx7racer
10-01-05, 06:46 AM
#7
(_8(|)
Thread Starter
Join Date: Jul 2004
Location: Manhattan, Kansas
Posts: 2,034
Likes: 0
Received 0 Likes
on
0 Posts
http://www.takakaira.com/asp/templa...IJjFgGgbdCeahDc ew, lol
I went with the bov placement becausewhile searchingsomeone brought up a point:
When the air is released, id rather it exit moving in the direction of the TB, instead of going BACK THROUGH the intercooler. make sense?
Makes the most sense to me.
I went with the bov placement becausewhile searchingsomeone brought up a point:
When the air is released, id rather it exit moving in the direction of the TB, instead of going BACK THROUGH the intercooler. make sense?
Makes the most sense to me.
Trending Topics
10-01-05, 03:12 PM
#10
(_8(|)
Thread Starter
Join Date: Jul 2004
Location: Manhattan, Kansas
Posts: 2,034
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by First gen man
Looks clean. You'll get some nasty compression surge if you run your BOV where it is. Acually better for racing and such though.
10-01-05, 05:31 PM
#13
I R SAD PANDA W/O BAW
Originally Posted by TooMuch4You
would the kit have worked if you still had A/C and PS?
10-01-05, 08:05 PM
#14
Undercover
Join Date: Aug 2001
Location: Ohio
Posts: 1,983
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by First gen man
Looks clean. You'll get some nasty compression surge if you run your BOV where it is. Acually better for racing and such though.
The reason why its supposed to be run very close to the throttle body is because, when the throttle is closed quickly, it creates a pressure wave that revurberates back the intake track towards the turbo. Having the BOV as close to the source of the problem is the best way to stop the pressure wave. If you dont run a BOV the pressure wave revurberates back and hits the compressor wheel, After prolonged periods of this, it ruins the turbo. Nice IC by the way.
CJG
10-03-05, 07:55 AM
#15

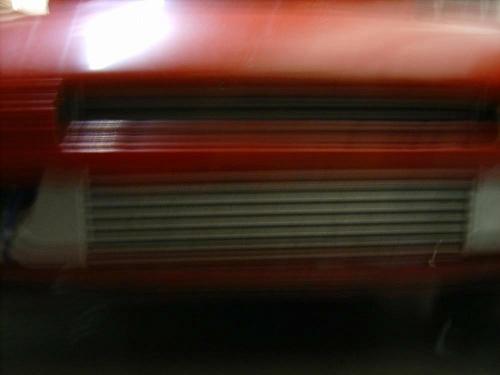

yes the kit works with stock PS, and AC because I still have both. Also you need to cut out the front of your bumper like this to let more air in or you will overheat on the highway.
10-03-05, 11:57 PM
#18
Junior Member
Join Date: Aug 2004
Location: Oakland,Ca
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
thats a cool set up was going to go with that ic but changed my mind,spent the same on my power xtrme exht,
BTW does any one know where i can get just the piping i've looked?
BTW does any one know where i can get just the piping i've looked?
10-04-05, 12:28 AM
#19
Siiickkkkkk
iTrader: (2)
Join Date: Dec 2004
Location: Los Angeles, CA
Posts: 800
Likes: 0
Received 0 Likes
on
0 Posts
spoolin, how much did you pay for the greddy power extrme and where did you find it? i assume you paid around 800 new?
also the greddy fmic kits are expensive like 800-1400 depending on which one and HKSs is like 1800
also the greddy fmic kits are expensive like 800-1400 depending on which one and HKSs is like 1800
looks really clean
10-04-05, 01:56 PM
#21
Junior Member
Join Date: Aug 2004
Location: Oakland,Ca
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by StealthFox
spoolin, how much did you pay for the greddy power extrme and where did you find it? i assume you paid around 800 new?
also the greddy fmic kits are expensive like 800-1400 depending on which one and HKSs is like 1800
also the greddy fmic kits are expensive like 800-1400 depending on which one and HKSs is like 1800
10-04-05, 02:11 PM
#22
Siiickkkkkk
iTrader: (2)
Join Date: Dec 2004
Location: Los Angeles, CA
Posts: 800
Likes: 0
Received 0 Likes
on
0 Posts
yeah its not loud and obnoxious it has a good tone especially with a good downpipe and a midpipe/straight pipe. and it looks better than any other FC exhaust made.
10-04-05, 03:21 PM
#23
Haven't we ALL heard this
Wow, that looks great...I really like the quaility of the weld on your flange. There are no places around my local that don't **** stuff up like that.
I have my BOV on the first pipe off the turbo.
My logic was when my BOV blows off....it is releasing hot air.
However, with your location when it blow's off...it releases cold air...that has already been cooled by the FMIC. So, your FMIC has all the heat in it from that exchange...but your enigne see's none of the benifit. So, you basicly cooled the air....the FMIC absorbed that heat...theny you dumped it out.
James
I have my BOV on the first pipe off the turbo.
My logic was when my BOV blows off....it is releasing hot air.
However, with your location when it blow's off...it releases cold air...that has already been cooled by the FMIC. So, your FMIC has all the heat in it from that exchange...but your enigne see's none of the benifit. So, you basicly cooled the air....the FMIC absorbed that heat...theny you dumped it out.
James
10-04-05, 03:36 PM
#24
Rotary Freak
I tought the purpose of a blow off/discharge/diverter valve was to release any pressure left in the pipes from the turbo to the throttle body so that it can't find its way back to the compressor and cause surging? Then wouldn't it be better to put the BOV on the pipe coming from the turbocharger to the intercooler?
10-04-05, 10:48 PM
#25
Siiickkkkkk
iTrader: (2)
Join Date: Dec 2004
Location: Los Angeles, CA
Posts: 800
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by snub disphenoid
I tought the purpose of a blow off/discharge/diverter valve was to release any pressure left in the pipes from the turbo to the throttle body so that it can't find its way back to the compressor and cause surging? Then wouldn't it be better to put the BOV on the pipe coming from the turbocharger to the intercooler?
