Fuel pump Gasket for S5 --- is it 2 or 1 ?
06-03-10, 08:27 PM
#1
Fuel pump Gasket for S5 --- is it 2 or 1 ?
Airtex's web site shows 2 gasket for the fuel pump.

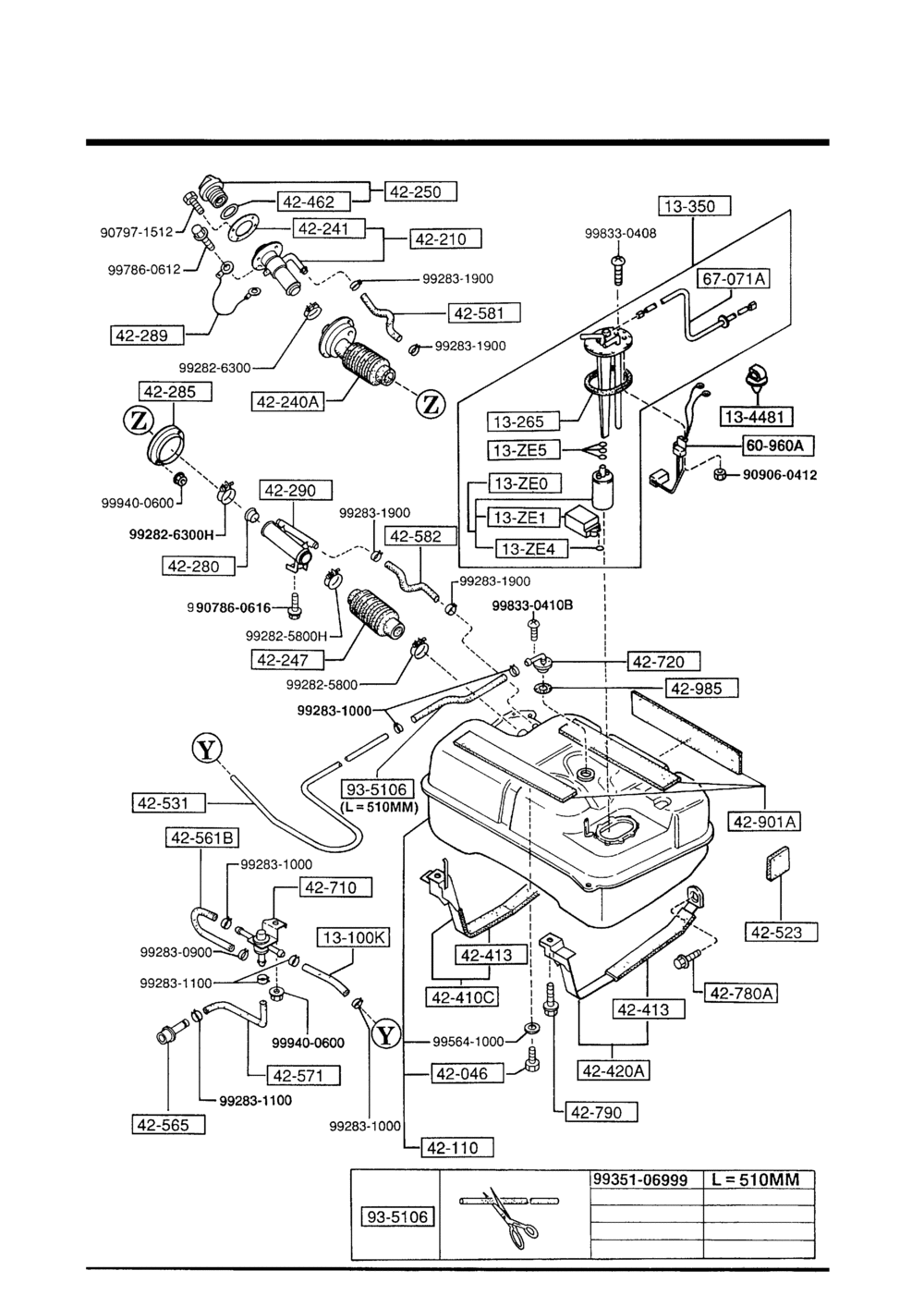

but I was looking at the Mazda's diagram for like 15 minutes. I can only see 1 gasket
13-265 ------------------ FC01-60-962
Where is the other "circle" gasket came from ? I know I can pull the carpet out and look, but its night now so its probably faster to ask here, Im 100% sure someone here will know the answer
but I was looking at the Mazda's diagram for like 15 minutes. I can only see 1 gasket
13-265 ------------------ FC01-60-962
Where is the other "circle" gasket came from ? I know I can pull the carpet out and look, but its night now so its probably faster to ask here, Im 100% sure someone here will know the answer
06-04-10, 01:04 AM
#3
Assuming both of those gaskets are shown in the same scale, I can't recall ever seeing anything like that circular gasket on the fuel tank or anywhere in the vicinity of the fuel tank
.
Also, I'm not 100% sure, but I seem to recall the fuel pump holder flange having more screws than the gasket shown there. It is very possible that I'm totally wrong there, but it seems like there were more screws than that.
I want to say there's 12 rather than 8.
. Also, I'm not 100% sure, but I seem to recall the fuel pump holder flange having more screws than the gasket shown there. It is very possible that I'm totally wrong there, but it seems like there were more screws than that.
I want to say there's 12 rather than 8.
06-04-10, 01:08 AM
#4
Assuming both of those gaskets are shown in the same scale, I can't recall ever seeing anything like that circular gasket on the fuel tank or anywhere in the vicinity of the fuel tank .
Also, I'm not 100% sure, but I seem to recall the fuel pump holder flange having more screws than the gasket shown there. It is very possible that I'm totally wrong there, but it seems like there were more screws than that. I want to say there's 12 rather than 8.
. Also, I'm not 100% sure, but I seem to recall the fuel pump holder flange having more screws than the gasket shown there. It is very possible that I'm totally wrong there, but it seems like there were more screws than that.
I want to say there's 12 rather than 8.and the circular gasket, I looked thru the whole parts catalog I can't see anything like that (or maybe I missed it?) maybe I should pull everything out tomorrow just to be sure.
