Fuel Pressure Gauge How-To
#1
Junior Member
Thread Starter
Join Date: Nov 2006
Location: Fremont, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Fuel Pressure Gauge How-To
I bought a Fuel Pressure Gauge for my 1990 GTU, now I need some advice/help on how to install it.
It came with a 1/8 NPT Electrical Sender Unit. What is the best place to install this sender? What additional equipment do I need to install this in my (stock) car? The sender has a threaded adapter, would Kragen/Autozone etc carry the parts required?
I would appreciate some links and pictures if anyone has one installed in their car.
http://glowshift.com/fuelpressuregauge.html
Thanks in advance,
-js
It came with a 1/8 NPT Electrical Sender Unit. What is the best place to install this sender? What additional equipment do I need to install this in my (stock) car? The sender has a threaded adapter, would Kragen/Autozone etc carry the parts required?
I would appreciate some links and pictures if anyone has one installed in their car.
http://glowshift.com/fuelpressuregauge.html
Thanks in advance,
-js
#3
Junior Member
Thread Starter
Join Date: Nov 2006
Location: Fremont, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
what is the best place to install the T? ..a picture would help.
And what size T should it be? I wouldnt want to use the incorrect size and perhaps restrict the flow...
Thanks!
And what size T should it be? I wouldnt want to use the incorrect size and perhaps restrict the flow...
Thanks!
#4
Alcohol Fueled!
iTrader: (2)

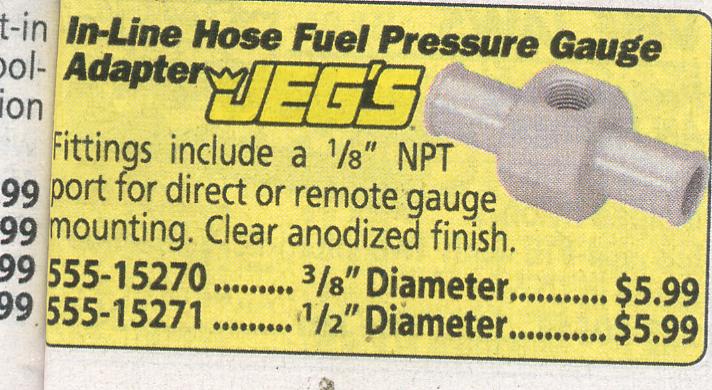

Uh.. IIRC the fuel line is approximately 3/8 inch OD. Let me find you an example of said Tee fitting...
Okay here:
http://www.brasscatalog.com/catalog_...o&cd=no&page=2
You can use a union Tee, then get you some of these Barb fittings.
http://www.brasscatalog.com/catalog_...&cd=no&page=14
THEN,
You install the sender on the unused portion of the Union Tee. Most of this stuff is probably available at Ace Hardware..
Rat
Okay here:
http://www.brasscatalog.com/catalog_...o&cd=no&page=2
You can use a union Tee, then get you some of these Barb fittings.
http://www.brasscatalog.com/catalog_...&cd=no&page=14
THEN,
You install the sender on the unused portion of the Union Tee. Most of this stuff is probably available at Ace Hardware..
Rat
#5
Alcohol Fueled!
iTrader: (2)
OR...

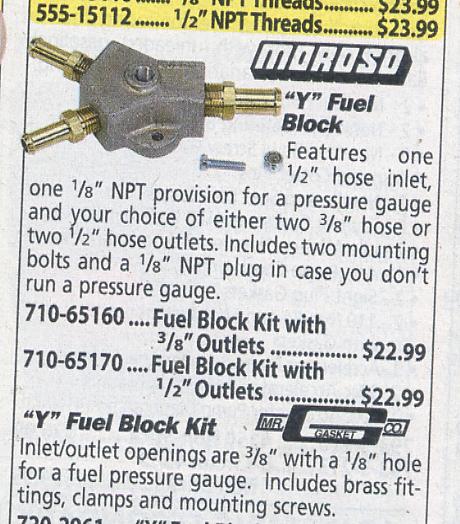

If you want to get SUPER TRICKY... You can use a fuel distribution block, then run your fuel system in PARALLEL!!!
OMG!!! LAWFLWAFFL...
http://www.holley.com/types/Fuel_Dis...ion_Blocks.asp
If you want to get SUPER TRICKY... You can use a fuel distribution block, then run your fuel system in PARALLEL!!!
OMG!!! LAWFLWAFFL...
http://www.holley.com/types/Fuel_Dis...ion_Blocks.asp
#6
Junior Member
Thread Starter
Join Date: Nov 2006
Location: Fremont, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
those links dont work, seems like those links are based on ur browser's session.
Whats confusing or the hard part for me is to find the correct spot to install the T. And do i need some clamps or what? And do i just cut the fuel line? What else do i need to do prior to cutting the fuel line for this installation?
Whats confusing or the hard part for me is to find the correct spot to install the T. And do i need some clamps or what? And do i just cut the fuel line? What else do i need to do prior to cutting the fuel line for this installation?
#7
Alcohol Fueled!
iTrader: (2)
Originally Posted by jsidhu
those links dont work, seems like those links are based on ur browser's session.
Whats confusing or the hard part for me is to find the correct spot to install the T. And do i need some clamps or what? And do i just cut the fuel line? What else do i need to do prior to cutting the fuel line for this installation?
Whats confusing you is the fact that you are overcomplicating this project. Of course you need clamps, but if I had to tell you that, I ran the risk of insulting your intelligence. Further more, YES, you will need to cut the fuel line in order to install the T-fitting. Lastly, there is no theoretical "correct" place to install this, since it was never supposed to be there anyways.
Here is what I am assuming.. I assume the sender is threaded, probably 1/8th NPT. The place I would install this sender if it were my STOCK car with a STOCK fueling system, would be after the fuel filter, where the line crosses the engine bay to the motor. This would place the sender close to several locations to feed a wire into cabin from the engine, which I assume you will need to do because I dont know of any wireless gauges (yet..).
What exactly do you want this gauge for anyways?
Trending Topics
#8
1 miracle from sainthood
Join Date: Dec 2004
Location: Massachusetts / Osaka Japan
Posts: 455
Likes: 0
Received 0 Likes
on
0 Posts
if you want to rig it quick and dirty, cut the fuel line on the high pressure side, that would be after the fuel filter but before the fuel rails. go to lowes, Home depot, or True Value, Aubichaun... you get the idea, and get a 3/8 in brass barbed T fitting, and 4 small hose clamps. then stop by your local autozone or whatever autoparts retailer you can and get 1 foot of 3/8 fuel line.
install Brass T with hose clamps in the cut fuel line then use the unused branch of the T and the 3/8 fuel line you bought and a hose clamp to connect to the FPG.
that should do if you use discression and a bit of mechinical knowhow, which you obviously have if you bought a RX7.
hope that helps,
TR
install Brass T with hose clamps in the cut fuel line then use the unused branch of the T and the 3/8 fuel line you bought and a hose clamp to connect to the FPG.
that should do if you use discression and a bit of mechinical knowhow, which you obviously have if you bought a RX7.
hope that helps,
TR
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
How about this little hummer: http://www.pegasusautoracing.com/pro...p?Product=3289
OR, you could just get a block of aluminum and a couple of drill bits and drill some holes of the right size and then tap 'em for the right threads. Cost less and if you have to buy the taps/drills, well they'll be there for another project in the future.
I'm outta here. Gone
OR, you could just get a block of aluminum and a couple of drill bits and drill some holes of the right size and then tap 'em for the right threads. Cost less and if you have to buy the taps/drills, well they'll be there for another project in the future.
I'm outta here. Gone
#14
Junior Member
Thread Starter
Join Date: Nov 2006
Location: Fremont, CA
Posts: 21
Likes: 0
Received 0 Likes
on
0 Posts
Thanks guys, I got it all installed.
Cut the fuel line right after the fuel filter. added the brass T and clamps and wired in the fuel pressure sender. Everything workin, showing about 40 psi on the dial.
Now Im gonna start troubleshooting my car, and probably end up replacing the fuel injectors (flooding problems..). So to start off, i wanted to add a fuel pressure guage as it cost me the same as i would have paid for one of those fuel pressure test gauges, this one cost me $50 shipped.
Thanks for all the help.
-js
Cut the fuel line right after the fuel filter. added the brass T and clamps and wired in the fuel pressure sender. Everything workin, showing about 40 psi on the dial.
Now Im gonna start troubleshooting my car, and probably end up replacing the fuel injectors (flooding problems..). So to start off, i wanted to add a fuel pressure guage as it cost me the same as i would have paid for one of those fuel pressure test gauges, this one cost me $50 shipped.
Thanks for all the help.
-js
