2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

fuel gauge inop

Thread Tools

Search this Thread

Old Sep 28, 2008 | 12:02 AM
  #1
89rx7vert's Avatar
Thread Starter
Full Member

Joined: Dec 2007
Posts: 163
Likes: 0
From: rialto
Question fuel gauge inop

my fuel guage dont work its reads empty...i checked fuses n there good and i pulled out the fuel pump and the flooting "thing" looks to be good..
eny thing else i can look for???

-s4 n/a
Reply
Old Sep 28, 2008 | 12:13 AM
  #2
Jpk3200's Avatar
Jpk3200
Tenured Member 05 Years

Joined: Oct 2006
Posts: 824
Likes: 0
From: San Antonio, TX
Originally Posted by 89rx7vert
i pulled out the fuel pump and the flooting "thing" looks to be good
What did you do to determine that the thing is still good? I don't think a visual test will tell the whole story. My fuel gauge read 0 one day, and replacing the sender unit fixed it. Your situation could be different though.
Reply
Old Sep 29, 2008 | 12:20 AM
  #3
89rx7vert's Avatar
Thread Starter
Full Member

Joined: Dec 2007
Posts: 163
Likes: 0
From: rialto
is the sending unit hard to replace need eny special tools?
Reply
Old Sep 29, 2008 | 02:31 PM
  #4
HAILERS's Avatar
HAILERS
Tenured Member 10 Years

Joined: May 2001
Posts: 20,563
Likes: 27
From: FORT WORTH, TEXAS,USA
Originally Posted by 89rx7vert
is the sending unit hard to replace need eny special tools?
Dittos to what the JPK said above.

Do this anyway. Take the plug off the fuel pump pigtail located on the aft side of the left rear strut tower. Find the Green/White wire in the rear harness plug half. Turn the key to ON. Then jumper the G/W wire to a known ground while watching the fuel gauge needle. It should rise up when you touch it to gnd, proving the sender in the tank is kaput.

Don't put a gnd on the G/W wire longer than to just see the needle move on up the gauge. IF you peg the needle out for any length of time, you could damage the gauge.

Replacing the sender is easy. Just remove the small screws that hold the pump in the tank............................oh, wait, you've already been in there. No, it's easy.

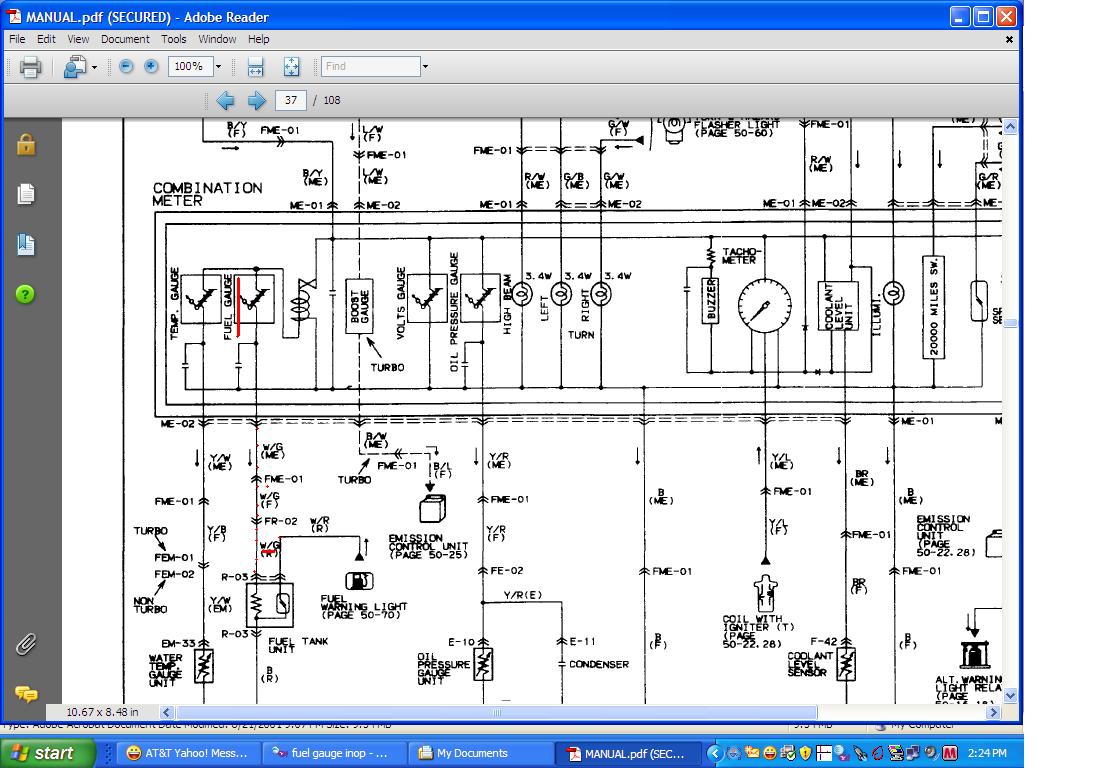

Attached Thumbnails fuel gauge inop-fuelgauge.jpg
Reply
Old Oct 1, 2008 | 06:55 PM
  #5
duo2999's Avatar
Pabs
Tenured Member 15 Years
iTrader: (1)

Joined: Jan 2008
Posts: 777
Likes: 0
From: Tekisasu
im going through the same problem right now. i just replaced the fuel pump and installed it. the pump works fine. however the gas guage does read the fuel thats in there.

maybe that floating fuel measuring stick is hitting something or is stuck. i'll have a look at it to see what really is going on. if all else fails i will try what was suggested above.
Reply
