that one guy300

okay, this is a s4 non turbo car, and at the moment, here is where im at. i know that all the speakers in this car have their own amplifiers, but i have already installed the head unit, and disconnected the rear speaker amps and re wired so they work properly, easy stuff. but now im stuck on the front speakers ( in the dash) both speakers use one amp that is directly behind the passenger side speaker (actully part of the speaker box), now i have no idea as to which wires i need to cut so that i can just bypass the amp and run strait into the speaker. kinda hard to say in text. basically bypass the front speaker amp. i have checked the FSM's and searched, but nothing i searched provided any results i am looking for. the wiring diamgrams i did find have the dash speakers not amplified an wired completly different. i can provide pictures if needed....any help would be great.

that one guy300

if this picture had all of the wire colors on it, atleast for the front speakers , then that would be perfect, but i cannot find it anywhere

ps sorry the picture will not load

philly101

I would just junk the amp an hook it up to the head an call it a day

that one guy300

that is my plan, i just do not know the correct wire colors to match together for each speaker

that one guy300

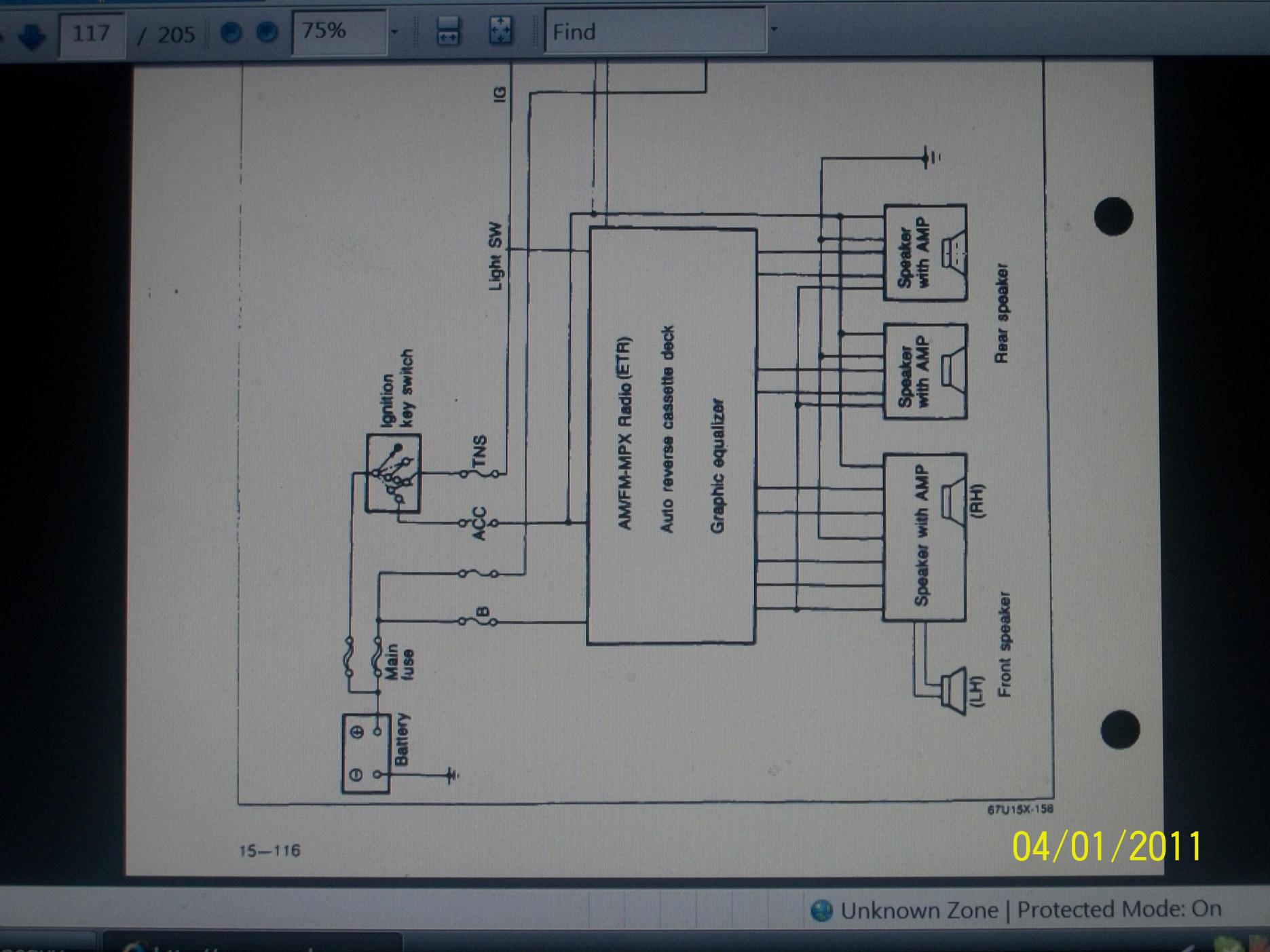

this is the picture i couldn't get to upload before

justwcc

Crutchfield has a lot of info on amp by-passing. They sent a booklet when I bought my head unit that had everything you need to know about doing audio in an FC.

that one guy300

thanks alot exactly what i needed, just for a reference all add te link
http://crutchfield.custhelp.com/app/...TTRDVE54cWs%3D

VermontRX7

iTrader: (3)

Looking at that, what color does BU stand for?

I am also trying to bypass my amps.

justwcc

BU stands for blue

VermontRX7

iTrader: (3)

LOL, that was a brain fart.
