which FMIC for my rx7?
#1
Full Member
Thread Starter
which FMIC for my rx7?
Hi
I have a rx7 13bt s5 with a BNR stage 2, and want know which the best FMIC kit for my car, with the less pressure drop, easyer to mount?
Help Please
Regards
I have a rx7 13bt s5 with a BNR stage 2, and want know which the best FMIC kit for my car, with the less pressure drop, easyer to mount?
Help Please
Regards
#3
Full Member
Thread Starter
I like your sarcasm, and sorry my bad english, but I don't have time to learn it better!
My question is "what is the best FMIC kit for my car?" I don't ask, "what's the best FMIC kit that the money can buy?"
I want a good FMIC kit, for the specs of my car, easy to fit it without to many mods, less pressur drop and good eficienc. Want kept AC and Battery on same spot.
The specs of my car are: 13bt s5 streetport with a BNR stage 2, and a max boost of 1bar.
I think on Greddy Vspec and Rspec, any one can tell me what's the diference? and what's better for my car?
Thank's to anyone that can help me with this.
Regards
My question is "what is the best FMIC kit for my car?" I don't ask, "what's the best FMIC kit that the money can buy?"
I want a good FMIC kit, for the specs of my car, easy to fit it without to many mods, less pressur drop and good eficienc. Want kept AC and Battery on same spot.
The specs of my car are: 13bt s5 streetport with a BNR stage 2, and a max boost of 1bar.
I think on Greddy Vspec and Rspec, any one can tell me what's the diference? and what's better for my car?
Thank's to anyone that can help me with this.
Regards
#4
1986 Rx-7
iTrader: (4)
Join Date: Apr 2005
Location: Wyoming
Posts: 514
Likes: 0
Received 0 Likes
on
0 Posts
Look at the m spec intercoolers off ebay. They are greddy knock offs, I have heard wonderful things about them, its pretty big also;
Edot; shitty camera pick but theres a 20 in the corner for size referance. Comes with all the piping, couples, hose clamps, and the throttle body adapter for 400 shipped
Edot; shitty camera pick but theres a 20 in the corner for size referance. Comes with all the piping, couples, hose clamps, and the throttle body adapter for 400 shipped
#5
well rested,buffet o food
I pieced my "universal" front mount together with ebay piping, couplers, and huge core for under 200 dollars. Spent 2 hours with minimal cutting.
No issues at all for over 2 years.....
....coolant seal went though, not temperature related.
Your english is 1,000,000 times better than my Portugese, man.
Are there many fcs in Portugal?
john ny
No issues at all for over 2 years.....
....coolant seal went though, not temperature related.
Your english is 1,000,000 times better than my Portugese, man.
Are there many fcs in Portugal?
john ny
#6
Senior Member
Join Date: Feb 2008
Location: South Florida
Posts: 309
Likes: 0
Received 0 Likes
on
0 Posts
hey dawicka... is that HKS air filter any good? My FC came with one on and I'm trying to figure if I should by a new sponge/filter or jut get a whole new K&N... they are pretty expensive and I'm trying to figure if it is even worth it
#7
well rested,buffet o food
Yeah....it has been good to me. Came with a batch of miata parts a while back.
I would use it (with a new filter) http://cgi.ebay.com/ebaymotors/HKS-S...Q5fAccessories 25 bucks.
I have heard "stories" about the foam descintigrating (sp) and getting sucked into engines though.
Again, i have had no issue and have not personally seen this.
john ny
I would use it (with a new filter) http://cgi.ebay.com/ebaymotors/HKS-S...Q5fAccessories 25 bucks.
I have heard "stories" about the foam descintigrating (sp) and getting sucked into engines though.
Again, i have had no issue and have not personally seen this.
john ny
Trending Topics
#8
Full Member
Thread Starter
Thancks very much, I will see.
The Ebay Mcore is good enought?
In Portugal exist some FC, but not to many. Here major part of people don't like wankel engines.
regards
The Ebay Mcore is good enought?
In Portugal exist some FC, but not to many. Here major part of people don't like wankel engines.
regards
#11
well rested,buffet o food
I have 2.5 inch pipe and had to notch my shock tower and weld in a 3.5 inch pipe. This new channel works well with no clearence issues.
I would think that 2 inch pipe should have no issue clearing the p/s.
Yeah i figured.... Just threw me because i saw another guy post a vid on here from portugal with 2 fcs on it. Didnt know if you guys were like a secret austrailia
Good luck with the fmic.....you can still save even more money though not getting a fc kit, and piecing a universal pipingkit and huge core.
john ny
I would think that 2 inch pipe should have no issue clearing the p/s.
Good luck with the fmic.....you can still save even more money though not getting a fc kit, and piecing a universal pipingkit and huge core.
john ny
#12
Zoom Zoom Boom

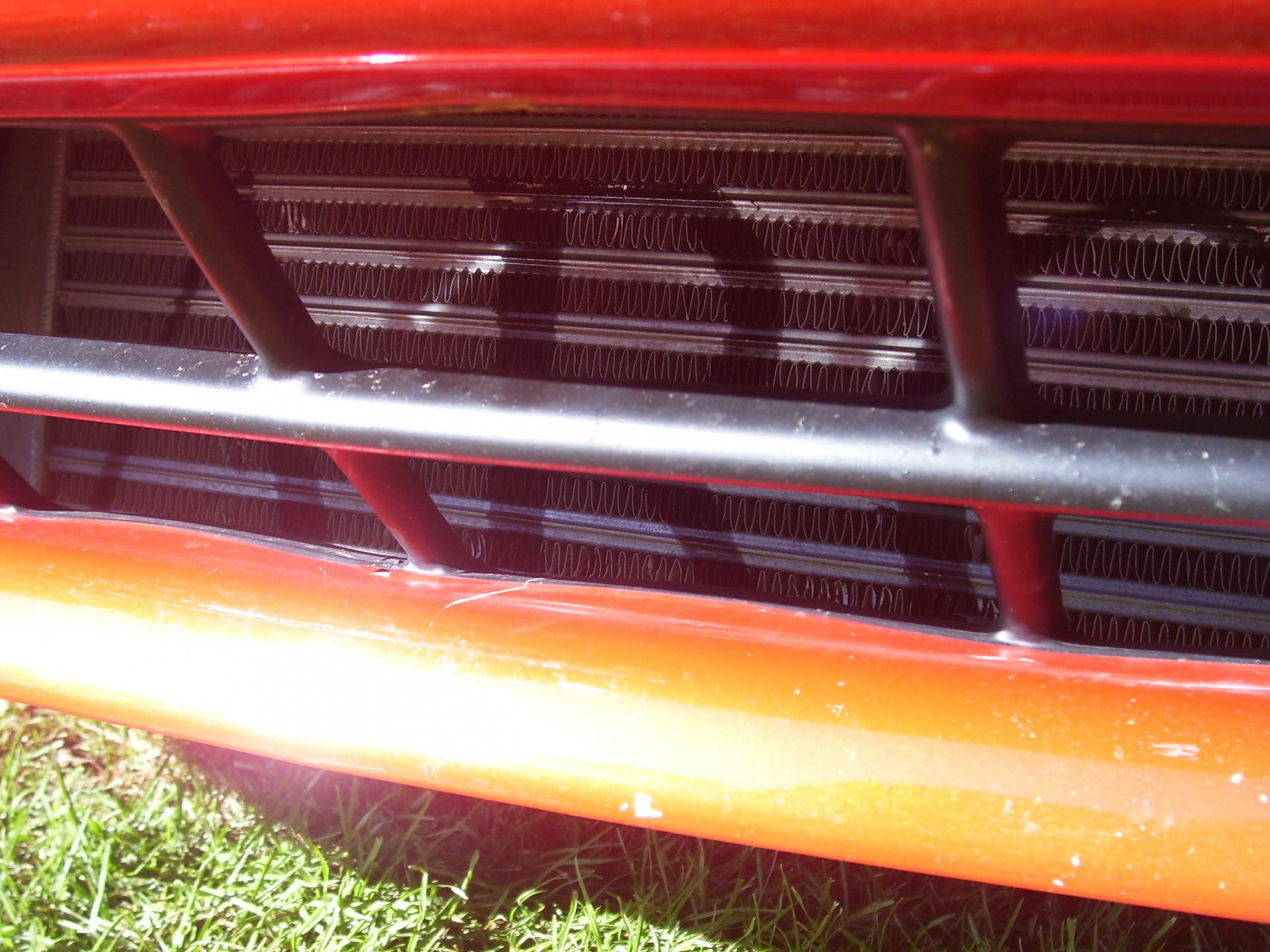

here's a few pics of mine... I kept ps/ac and battery upfront on my mspec ebay intercooler. and my stock up pipe.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/fc-intercooler-setup-868992/
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/fc-intercooler-setup-868992/
#15
Senior Member

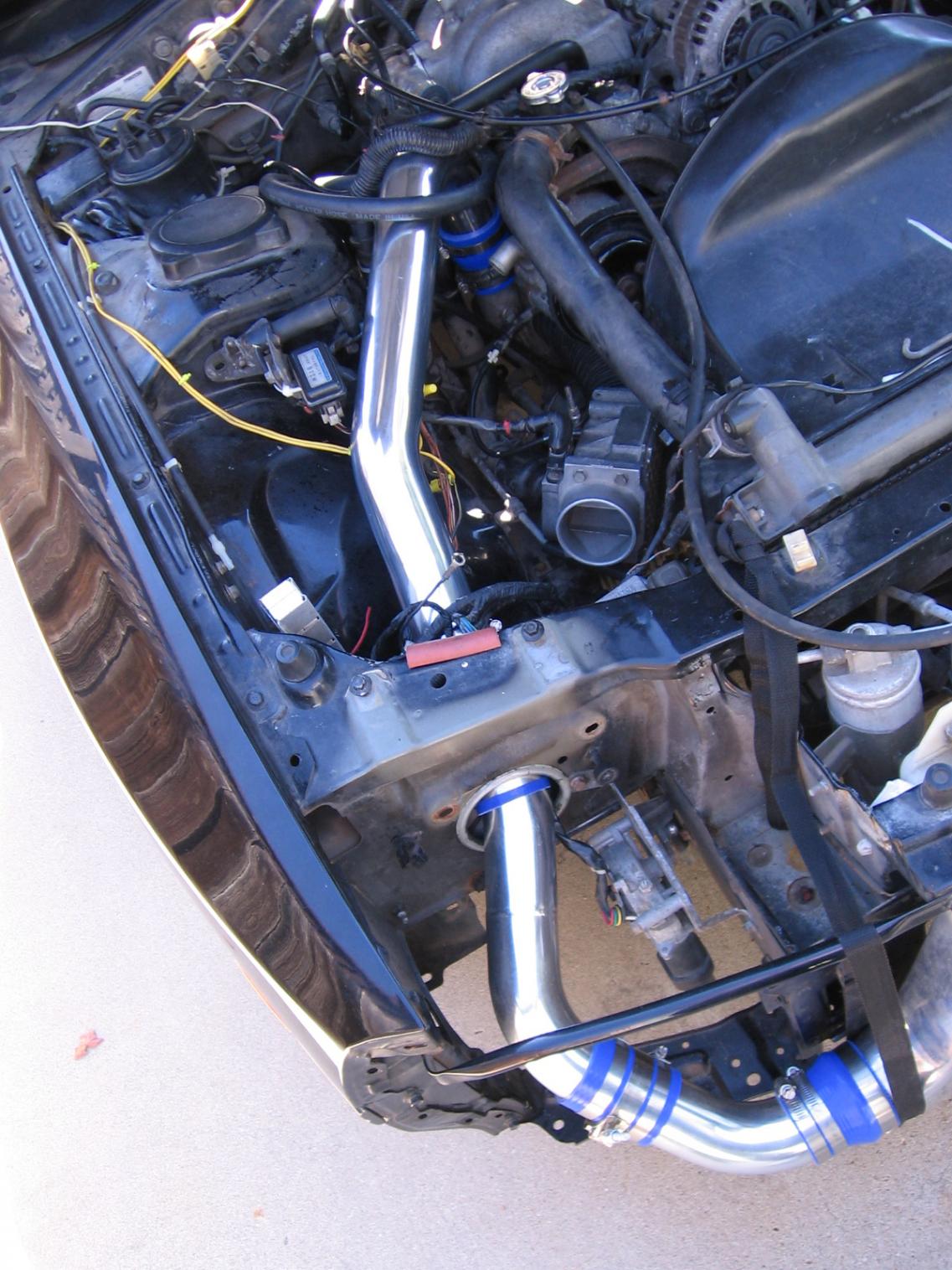

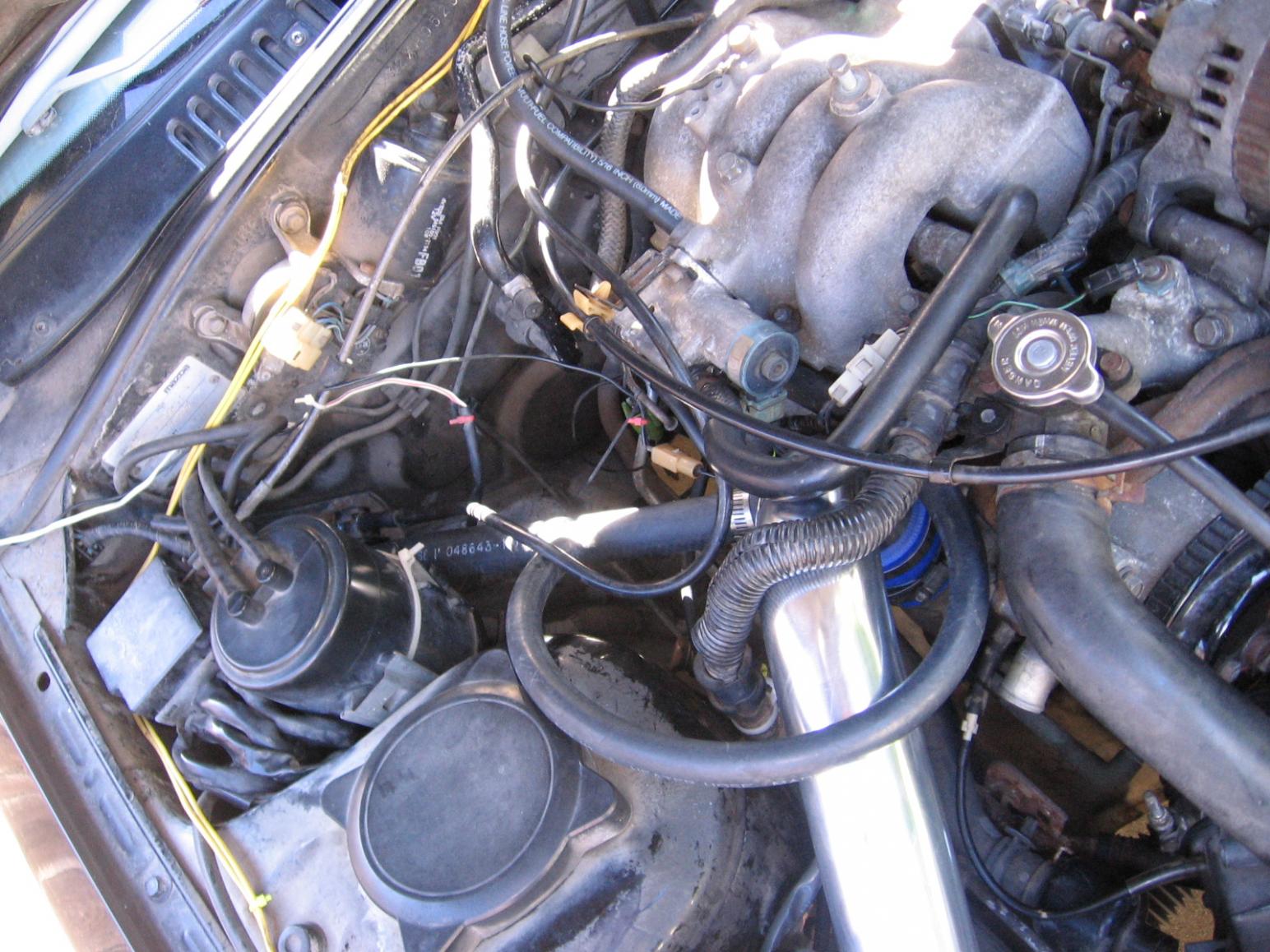

my XO2 setup - 87TII
shortened end of section connecting to the TB elbow by 1.25" to clear A/C line and brake fluid reservoir.
hot side section connecting to the IC had 1.25 inch portion removed so it would align with hole.
along the bottom of the face plate where the bumper brakets bolts on to there is a lip that's ~7/8". I trimmed it down to 1/4". The lower end of the IC now sits back further towards the car minimizing the amount of material to be removed from the bumper cover.
leading ignitor is bolted to shock tower below IC tube.
fuse box is between battery and fan shrowed.
hot side section connecting to the IC had 1.25 inch portion removed so it would align with hole.
along the bottom of the face plate where the bumper brakets bolts on to there is a lip that's ~7/8". I trimmed it down to 1/4". The lower end of the IC now sits back further towards the car minimizing the amount of material to be removed from the bumper cover.
leading ignitor is bolted to shock tower below IC tube.
fuse box is between battery and fan shrowed.
#16
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
shortened end of section connecting to the TB elbow by 1.25" to clear A/C line and brake fluid reservoir.
hot side section connecting to the IC had 1.25 inch portion removed so it would align with hole.
along the bottom of the face plate where the bumper brakets bolts on to there is a lip that's ~7/8". I trimmed it down to 1/4". The lower end of the IC now sits back further towards the car minimizing the amount of material to be removed from the bumper cover.
leading ignitor is bolted to shock tower below IC tube.
fuse box is between battery and fan shrowed.
hot side section connecting to the IC had 1.25 inch portion removed so it would align with hole.
along the bottom of the face plate where the bumper brakets bolts on to there is a lip that's ~7/8". I trimmed it down to 1/4". The lower end of the IC now sits back further towards the car minimizing the amount of material to be removed from the bumper cover.
leading ignitor is bolted to shock tower below IC tube.
fuse box is between battery and fan shrowed.
Good luck on trying to get the Lights to retract down with that Setup Clubuser.
You still have time to reroute that pipe while the front is off though..(other than that,it looks good).
#17
Forward, Always
iTrader: (3)
i went with universal 2.5 intercooler piping.
and a black mishimoto intercooler
also comes with lifetime warranty
low price, great product.
i get zero heat soak at 15-20 psi ALL DAY with a t04e 60-1
here's the link for how i routed it:
http://www.facebook.com/album.php?ai...00000208172859
and here's the link for mishimoto intercooler, if u want to check it out:
http://www.mishimoto.com/
sorry about the lack of respect on here. too many ''heavy hitting'' internet thugs..
and a black mishimoto intercooler
also comes with lifetime warranty
low price, great product.
i get zero heat soak at 15-20 psi ALL DAY with a t04e 60-1
here's the link for how i routed it:
http://www.facebook.com/album.php?ai...00000208172859
and here's the link for mishimoto intercooler, if u want to check it out:
http://www.mishimoto.com/
sorry about the lack of respect on here. too many ''heavy hitting'' internet thugs..
#18
~!@#$%^&*()_+
Join Date: Oct 2001
Location: Mpls, MN
Posts: 461
Likes: 0
Received 0 Likes
on
0 Posts
I personally dont think anyone makes a "good" kit for the FC. If you want it done right your going to need to do it custom with a good core, endtanks, placement and proper routing.
Anything that comes as a "kit" for our cars requires lots of hack and butch.
Anything that comes as a "kit" for our cars requires lots of hack and butch.
