Fluid Dynamics/ Portmatching

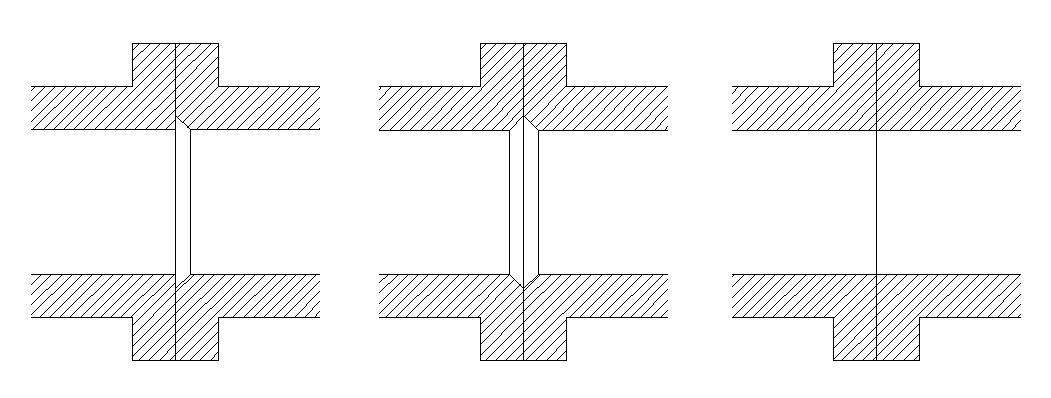

Simple Q, simple A. Which of these 3 runners (just 2 lengths of pipe joined at the flange... think of them like manifolds, or exhaust pipe) would flow the best (note, air flows to the right)?
Feel free to be as discriptive as you want, but multiple simple answers will do.
Feel free to be as discriptive as you want, but multiple simple answers will do.
#3
Rotary Enthusiast
Join Date: Aug 2002
Location: Austin, Tx
Posts: 886
Likes: 0
Received 0 Likes
on
0 Posts
id say 2 because i dont think any exhaust is going to exacly match up (#3)there will be overlap. 2 would have like no overlap and its angled not sharp. And #1 has a sharp drop off which would mess with the airflow.
Last edited by Rx-7Blazin; 07-29-03 at 01:09 AM.
#5
Far right is the best. The runner is smooth and uninterrupted assuming all else around it is ideal (smooth flat level flange surface and perfect alignment).
If you want to use materials, you could also use mild steel mandrel bent j-bends and u-bends. These bends have one end that is the smaller to serve as sleeves for connecting bends and welding it. It's great for DIY projects.
J
If you want to use materials, you could also use mild steel mandrel bent j-bends and u-bends. These bends have one end that is the smaller to serve as sleeves for connecting bends and welding it. It's great for DIY projects.
J
#6
trying to build a racecar
Is this a trick question?
I've actually read a book that says #1 is more desireable. But it was mainly dealing with piston engines. Intake and exhaust ports with mismatched openings, like in #1, are for anti-reversion, keeping the airflow from changing direction. The shape was a little different though. Cut a radius into that flat face and it would do a better job.
I would think that flow reversion is less of a problem with a rotary since the time that the intake/exhaust runner is completely closed to air coming in/out of the engine is very small compared to a 4 stroke piston engine with valves.
Did I get it right? What do I win? :p
I've actually read a book that says #1 is more desireable. But it was mainly dealing with piston engines. Intake and exhaust ports with mismatched openings, like in #1, are for anti-reversion, keeping the airflow from changing direction. The shape was a little different though. Cut a radius into that flat face and it would do a better job.
I would think that flow reversion is less of a problem with a rotary since the time that the intake/exhaust runner is completely closed to air coming in/out of the engine is very small compared to a 4 stroke piston engine with valves.
Did I get it right? What do I win? :p
Trending Topics
#9
Lives on the Forum
Too vague of a question...
Is this intake or exhaust?  Cooler intake charges behave slightly differently than hot, expanding exhaust gases...
Is this for NA or forced induction?  Turbulence affects NA applications more than forced induction applications...
In general, you want less turbulence.
-Ted
Is this intake or exhaust?  Cooler intake charges behave slightly differently than hot, expanding exhaust gases...
Is this for NA or forced induction?  Turbulence affects NA applications more than forced induction applications...
In general, you want less turbulence.
-Ted
#11
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
Since intake charges go both directions after the surge tank in NA engines, # 3 would probably perform best as it gives no possibility to create any drag, other than parasite drag of the air past the inside walls of the runner. Even with exhaust there are reversing pressure waves that can be tuned so I would not see any advantage to # 1 or 2 unless a restrictive exhaust was used, where gas reversion would be very bad for exhaust port temps.
