I have a couple of questions that yall might be able to help with.

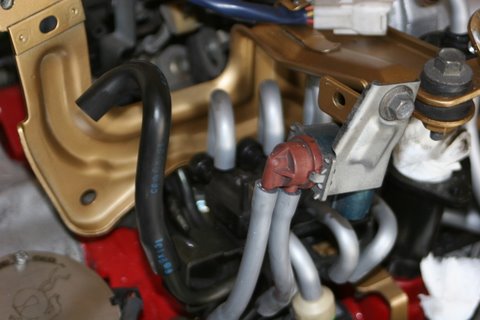

What does the black tube hook up to in the first attached picture? Is the silver plate bolted to the right place?



In the second photo, what is that little bracket for? It seems like it would bolt to the engine lift (painted gold) but they dont line up at all.



Thanks!

sharingan 19

iTrader: (16)

Not sure the first one, but I believe the second bracket is mainly for the TMIC and the piece that sticks out is for one of the tabs that holds the throttle cable

vrracing

iTrader: (1)

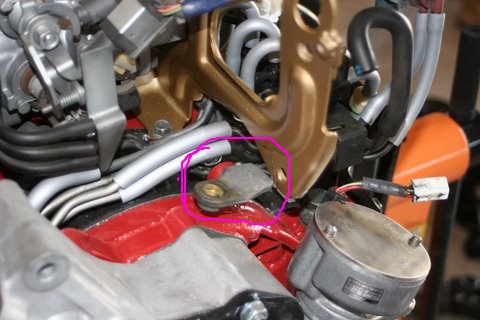

This bracket? It bolts to the front iron in the same place the engine lift loop bolts on for an na. The gold is bracket that holds the TMIC and all the fuel rails, solenoids and vacuum lines. I can't figure out what the bracket circled in pink is for.

vrracing

iTrader: (1)

The black tube plugs into the oil fill.

veedubbed

First one is, you got it, PCV tube that goes to the oil fill neck.
