Finally doin it right.
12-24-04, 10:19 PM
#1
BOOSTED Vert
Thread Starter
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Finally doin it right.
For those that dont know me ( most of you), this is the second time trying to build my car. Only the first time I did a shitty job and tried to do everything quick and it didnt work out... This time however im taking my sweet time and paying attention to details... T70, FMIC, clutch, flywheel,720cc injectors, 3" exh, new paint, wheels, and top are all part of the build.... So far I have everything mechanical wise, just need the paint, wheels and top. I only have one pic so far, the other ones are to be shown when completed... This is my 4" thick FMIC no pipings yet...
12-24-04, 10:56 PM
#2
PIMP
Join Date: Feb 2004
Location: Greensboro, NC
Posts: 1,012
Likes: 0
Received 0 Likes
on
0 Posts
sweet project, is it a street car only? You gonna drag race, autoX, track?
What kind of 3" exhaust you got? I plan on a full turbo back as my first real mod to my s4 t2 after i change my clutch.
What kind of 3" exhaust you got? I plan on a full turbo back as my first real mod to my s4 t2 after i change my clutch.
12-24-04, 11:23 PM
#4
I live in an igloo
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
That intercooler is huge, I think a little too big for a daily driver. Turbo lag is you new buddy, and his friend heat soak is hitching a ride
This gonna be an autocrosser?
This gonna be an autocrosser?
12-24-04, 11:35 PM
#5
BOOSTED Vert
Thread Starter
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
HEat soak?? I dont think I will have problems with the temps..... And yes this will be street driven and lag is good for me... Im never down for street racing, but always up for some highway fun... I dont expect much numbers with the setup, but should be a pretty quick vert... and If I run in the 1/4 mile, I would be more interested in the mph than the e.t.
Martin
Martin
Last edited by MARTIN; 12-24-04 at 11:44 PM.
12-24-04, 11:39 PM
#6
Army Strong...or somethin
iTrader: (3)
Join Date: Jan 2004
Location: Green Bay, WI
Posts: 857
Likes: 0
Received 0 Likes
on
0 Posts
yeah, please tell me u had a typo!! if that thing is 4 inces thick, ur gunna need bigger than 720cc injectors to boost at a low effciantcy for that thing lol i would seriously consider using at least 1000cc injectors for a turbo/ ic combo such as that!!! u can push A LOT through that damn thing!!!
but the radiator hiding behind that does scare me!! how do u plan on getting the coolent cooled efficiantly??(yeah i know i cant spell )
but the radiator hiding behind that does scare me!! how do u plan on getting the coolent cooled efficiantly??(yeah i know i cant spell
)
Trending Topics
12-24-04, 11:47 PM
#8
BOOSTED Vert
Thread Starter
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
lol I was kinda waiting for this type of responce. I promise that If I have anyproblems with the radiator/coolant, I will admit the mistake of putting on a gigantous intercooler....but I doubt it will have little to any to any affect at all
12-25-04, 12:25 AM
#14
88 AE
Join Date: Mar 2002
Location: N/A
Posts: 2,865
Likes: 0
Received 0 Likes
on
0 Posts
The only time I have problems with running hot is on the highway on a warm day. Car doesn't seem to like going 80mph for an extended period of time. I can only imagine an intercooler THAT big would cause some cooling issues.
12-25-04, 12:56 AM
#16
BOOSTED Vert
Thread Starter
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
thats cool... I want to see how these people run my piping.... I want some 3" piping for the cooled air, and maybe 2 1/2 or 21/4 for the compression side
12-25-04, 01:55 PM
#18
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I run with a Greddy fmic that covers the inlet area about 100 percent. The car does run higher temps but does not overheat. We're talking summer in Texas. But next year I'm getting a KOYO to lower the temps back to normal.
I've a KOYO in my other turboii that is more stock than not (tmic), and it runs tooooo cool. I don't like 150 degrees temps in the winter (stock, new, thermostat {go figure??})

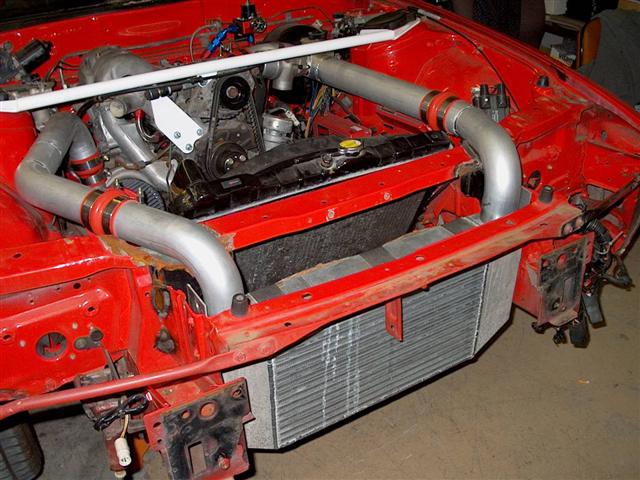

Actually I like the red car with the cut out frame. Looks like it's been reinforced just below where the pipes run. Makes good sense to me. Need welding skills to do that though. Something I have not.
I've a KOYO in my other turboii that is more stock than not (tmic), and it runs tooooo cool. I don't like 150 degrees temps in the winter (stock, new, thermostat {go figure??})
Actually I like the red car with the cut out frame. Looks like it's been reinforced just below where the pipes run. Makes good sense to me. Need welding skills to do that though. Something I have not.
12-25-04, 02:08 PM
#19
BOOSTED Vert
Thread Starter
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
I have a koyo going in the car as soon as the motor is put in. which should be this week. It shouldnt run that hot anyways... as long as I have an adecuate fan. im gunna reinforce it later on.... when Im actualy dont with the installation of the motor.... Im just waiting for the clutch and the motor will be in
12-25-04, 02:43 PM
#20
Resident autoglass pro
iTrader: (1)
Join Date: Jul 2003
Location: edinburg PA
Posts: 1,192
Likes: 0
Received 0 Likes
on
0 Posts
Jason, a friend of mine with a 10th ae runs probably the same size intercooler as that. There is minimal turbo lag on the stock unit. He will be runing a to4s, so that is why he chose to go so large. he also has a koyo aluminum radiator, and a black magic elec. cooling fan now. Before, it ran slightly hotter with just the stock rad. and a very small elec. fan.
I plan on running a 24.5"Lx12"Hx3" thick core for my setup (BNR stage III).
I plan on running a 24.5"Lx12"Hx3" thick core for my setup (BNR stage III).
12-26-04, 09:28 PM
#21
1 OF A KIND T2
Join Date: Jan 2003
Location: NY
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts

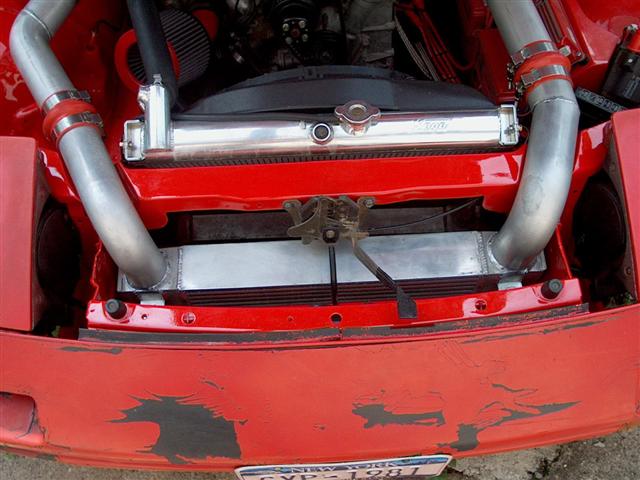

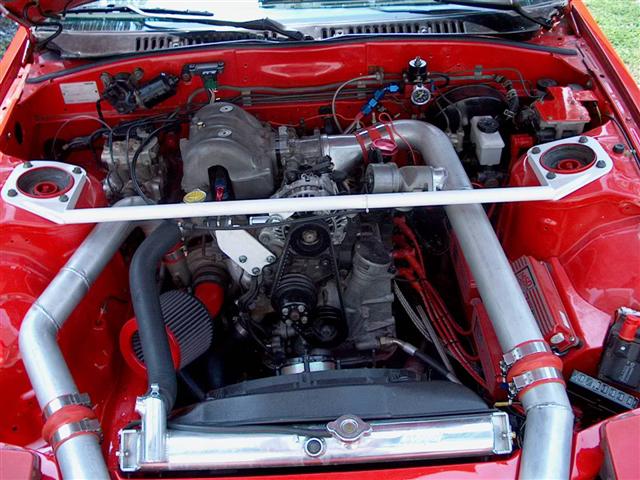

I had no Overheating problems, Koyo Radiator, 16'Be-cool E-Fan!! the fan was
almost 200$ compared to all others around 70$ there is a major difference between the two, when the fan is powered it sounds like a back-pack blower.
also made custom shroud to pull air across entire radiator. I had to cut the hood
underneathin the front to clear the pipes. So I drove the car for some time without a hood,
There was a huge diffrence in fan on-time when I did replace the hood. I a'm
planning to vent the hood, like the V-mount setups.

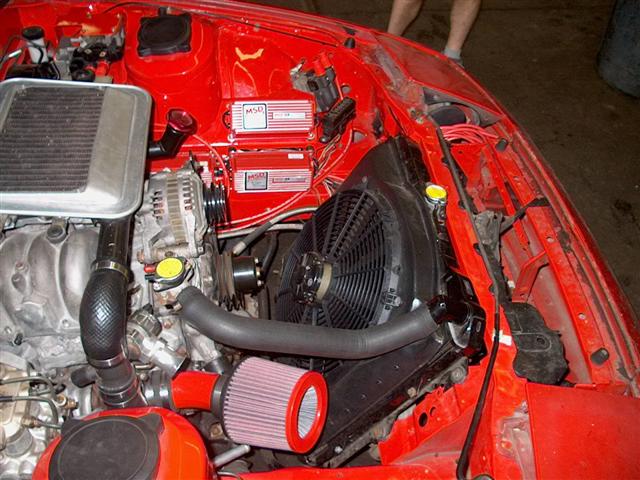

This picture was before I did the Intercooler.
p.s. these conditions were in the middle of the summer....DOIN IT RIGHT!!
almost 200$ compared to all others around 70$ there is a major difference between the two, when the fan is powered it sounds like a back-pack blower.
also made custom shroud to pull air across entire radiator. I had to cut the hood
underneathin the front to clear the pipes. So I drove the car for some time without a hood,
There was a huge diffrence in fan on-time when I did replace the hood. I a'm
planning to vent the hood, like the V-mount setups.
This picture was before I did the Intercooler.
p.s. these conditions were in the middle of the summer....DOIN IT RIGHT!!
Last edited by Eroxx; 12-26-04 at 09:39 PM.
12-26-04, 11:00 PM
#25
1 OF A KIND T2
Join Date: Jan 2003
Location: NY
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
16' be-cool E-fan
16'' Straight Blade Puller Fan
2360 CFM @ 21.6 amp
http://www.jegs.com/cgi-bin/ncommerc...96&prmenbr=361
2360 CFM @ 21.6 amp
http://www.jegs.com/cgi-bin/ncommerc...96&prmenbr=361
Last edited by Eroxx; 12-26-04 at 11:03 PM.
