FC Mirror disassembly - pics

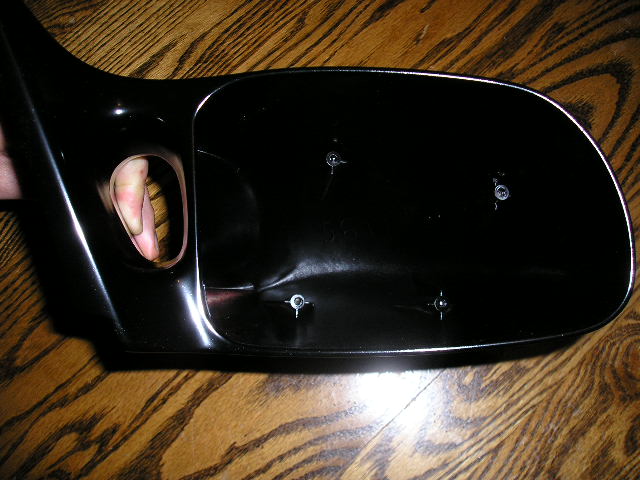

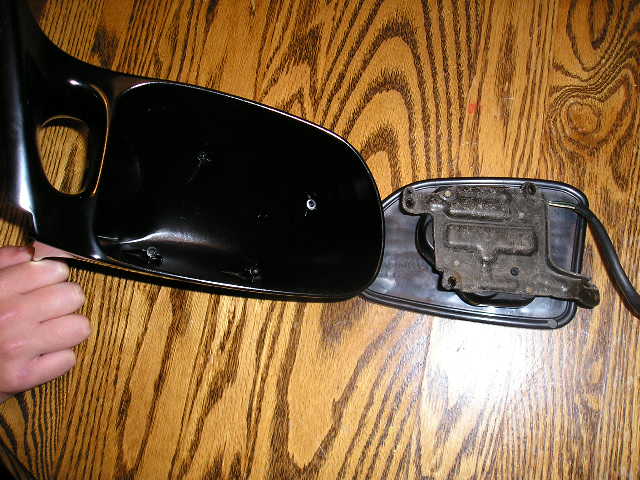

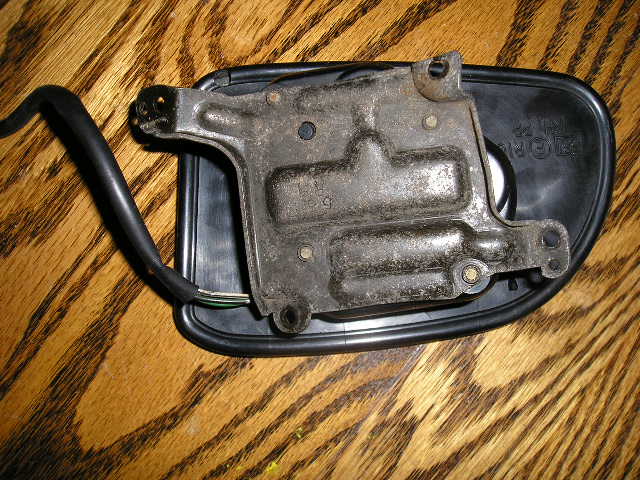

For what it's worth: I wanted to take my mirrors apart to paint them a while back. A search only yeilded the fact that there were four screws to remove behind the glass but no pics. Some even thought you had to break the glass. You don't. There are four screws to remove behind the glass which you can get at by tilting the mirror as far as it will go to the top and bottom. Two of the screws are on the top side and two on the bottom. Use a light to see in there. The pics are of the mirror apart so you can see the four mounting locations. Of course, reassembly is much easier!
Last edited by Nova7; 12-04-04 at 01:52 PM.
#4
7s bein a pain in the ass
Join Date: Nov 2003
Location: Chico, CA
Posts: 704
Likes: 0
Received 0 Likes
on
0 Posts
nice! i always wondered how to change the mirror piece only. now i can paint the mirror thingy with no problem of accidently getting paint on the mirrors.
#5
Senior Member
Thread Starter
iTrader: (5)
Join Date: Aug 2003
Location: Kitchener, ON
Posts: 722
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Drag'nGT
Is it just me or do you just have ultra small hands?
Trending Topics
#11
Law Breaker
Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes
on
0 Posts
this is some good info, I hate spending all that money painting a car just to see tape rings around the mirrors. with more detail and pics on how to get to those 4 screws I say this should be archived, oddball details like this help out too.
